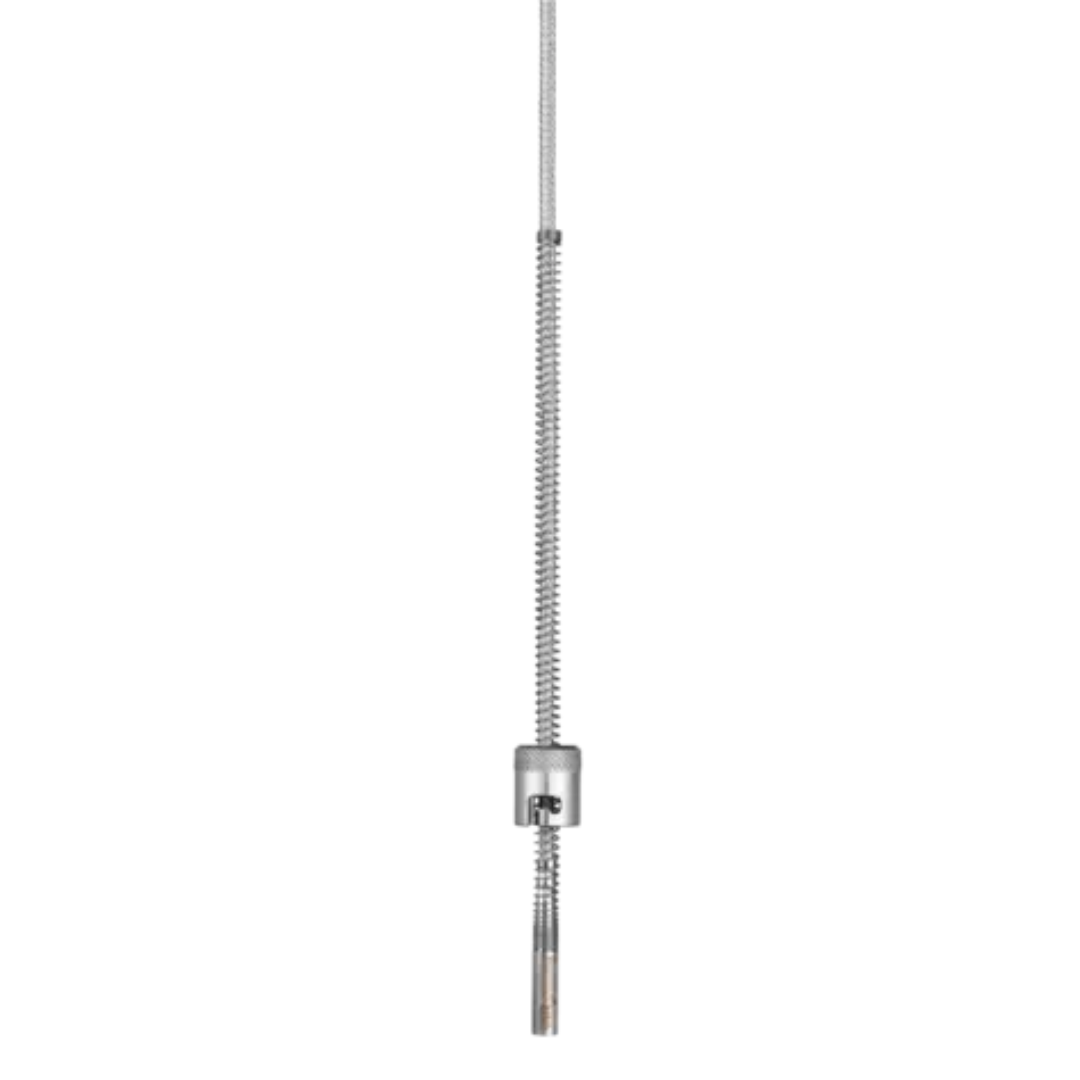

Push-in thermocouples
Push-in thermocouples with a bayonet fastener are predominantly used for temperature measurement in solid bodies, friction bearings, and tools (e.g. in the plastics industry). The special shape of the probe tip makes these temperature probes suitable for use in flat and pointed drilled holes.
Technical data
| general technical data | |
|---|---|
| Special features | Cable made of silicone, PTFE, metal braiding, ceramic probe tip, meets the specification according to AMS2750 E and CQI-9 |
| Operating temperature | 0 to 400 °C |
| Option | Shielded cable |
| Features | Adjustable spring pressure ensures good heat transfer |
| process connection | Bayonet fastener |
| Thermopairs | J, L, K |
| Protection fitting | Stainless steel 1.4571 |
| Connection | Cable |
| Areas of application | Plastics industry, woodworking machines, printing machines |
| Measuring circuits | 1/2 |
Downloads
Data Sheet
Certificate
Brochure
Brochure
Brochure
Brochure
Declaration of Conformity / White Paper
Order details
