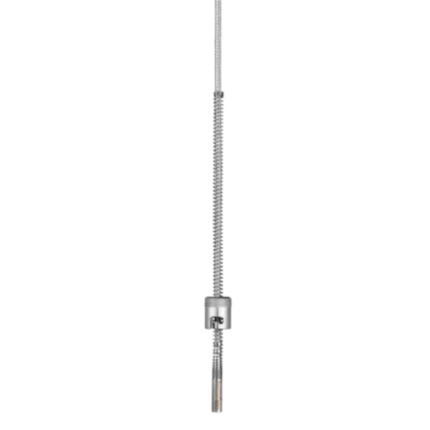

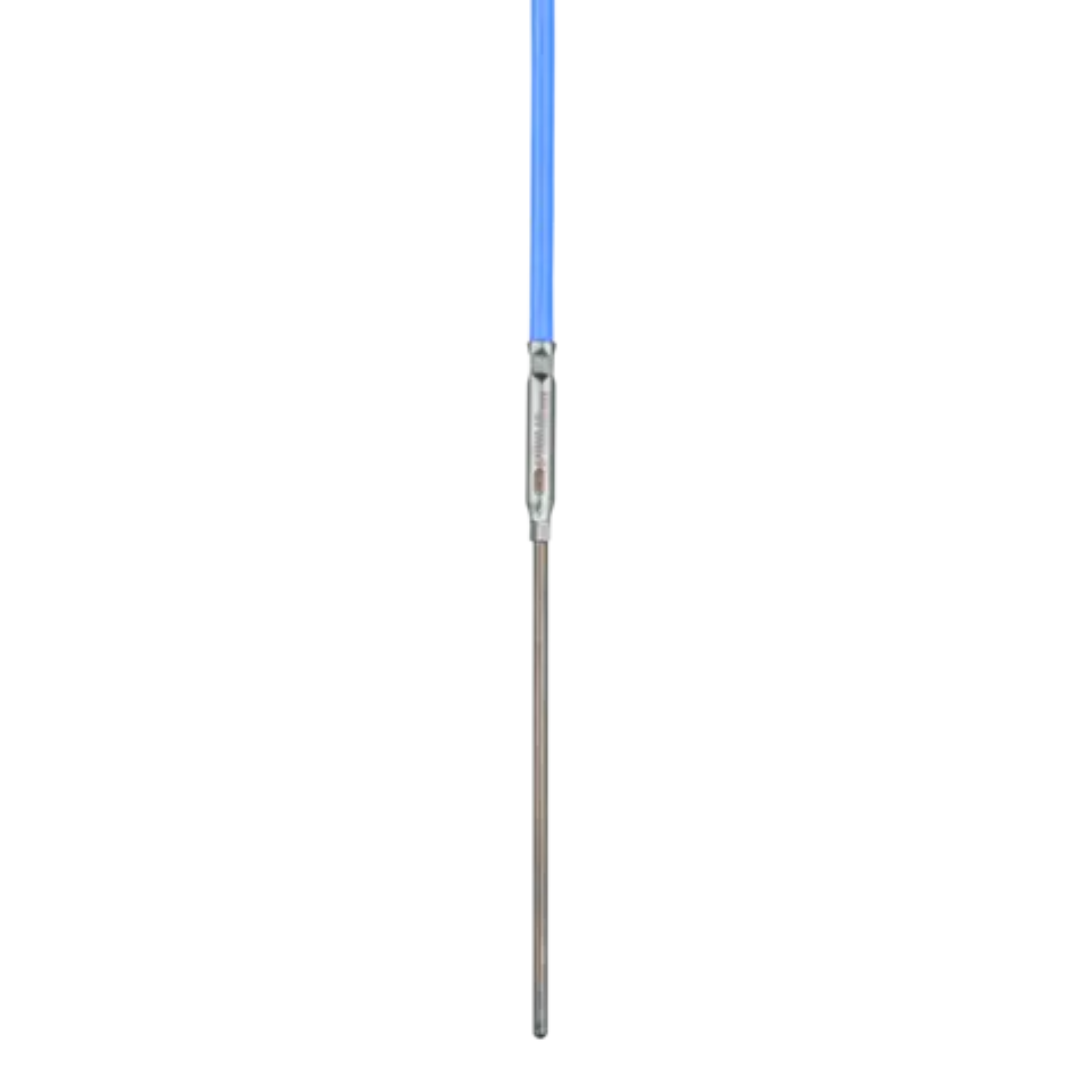

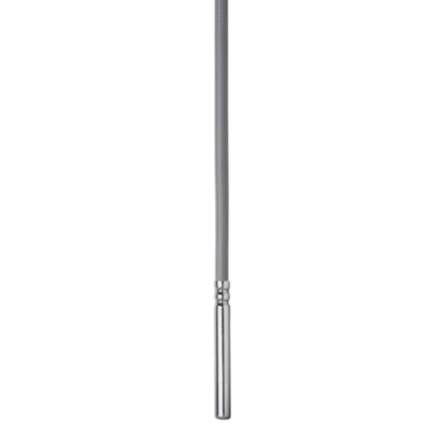

Mineral-insulated thermocouples
Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy. A compression fitting allows mineral-insulated thermocouples for hydrogen applications up to over 1000 bar.
Technical data
| general technical data | |
|---|---|
| Connection | Ferrules according to DIN 46228, multi-pole plug connector |
| Compensating cable | Silicone, PTFE, metal braiding |
| Process connection | Screw connection G 1/2, screw connection G 3/8 |
| Protection tube | Stainless steel 1.4541, Inconel 2.4816 (Inconel 600) |
| Measuring insert | J, K, L |
| Option | Application-specific insertion length, protection tube diameter from 0.5 mm |
| Application areas | chemical plants, power plants, pipes, engine manufacturing, test benches, stationary fuel cells (temperature measurement, flame monitoring) |
| Special features | Flexible sheath cable with vibration-resistant measuring insert, fast response time |
