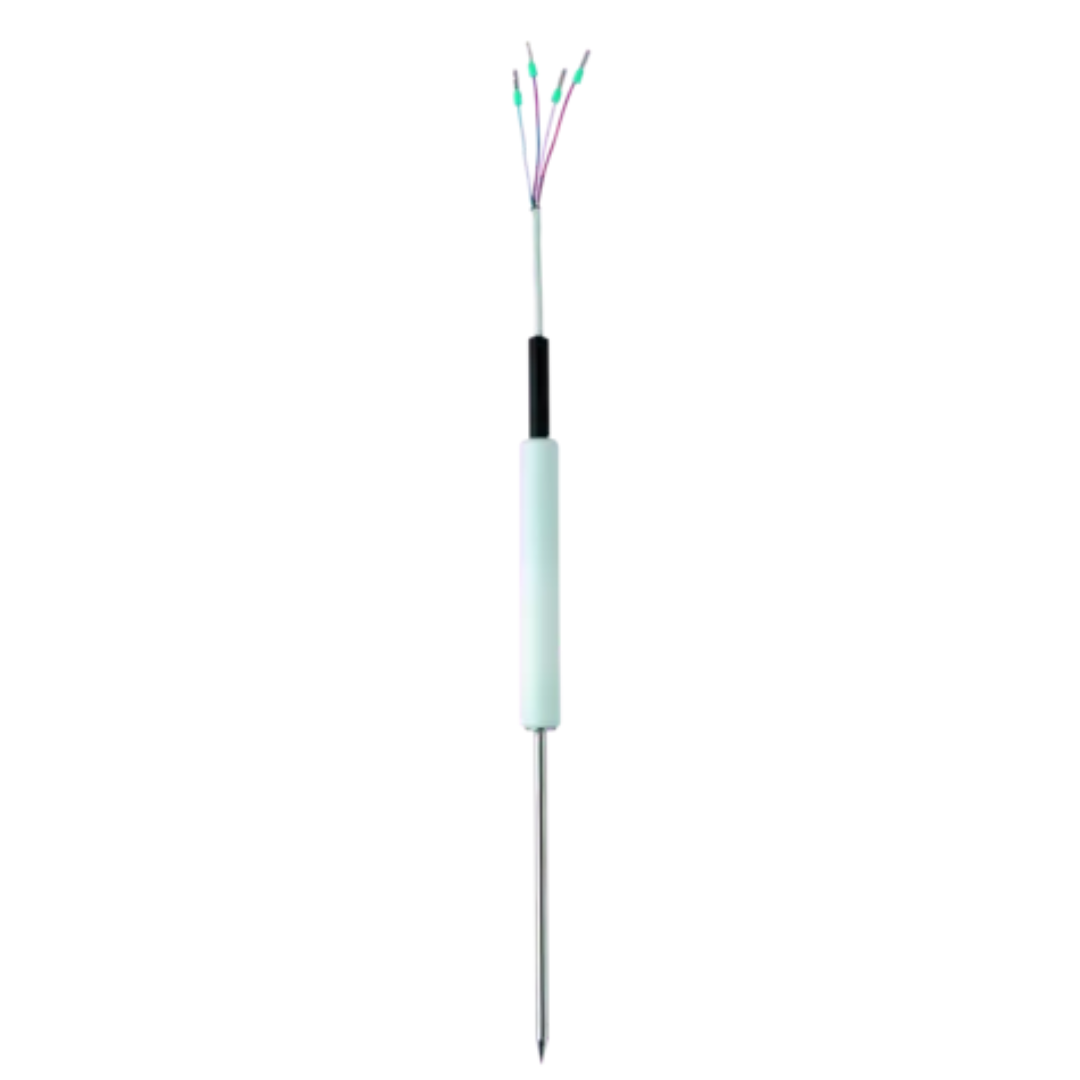

JUMO FOODtemp
Due to their special construction, these robust, steam-tight food insertion thermocouples are especially suited to cooking, boiling, and baking processes in all food processing and food preservation applications. The stainless steel probe tube is available with a concentric or oblique probe tip.
Technical data
| general technical data | |
|---|---|
| Connection | Cable ends stripped bare; alternatively available with ferrules, plug-in sleeves, or multi-pole plug connection |
| Compensating cable | PTFE |
| Handle | PTFE, PEEK (oil and acid resistant) |
| Protection tube | Stainless steel 1.4571 |
| Protection tube end | Concentric, angled at approx. 25°; oblique, angled at 45° |
| Measuring insert | NiCr-Ni “K”, DIN EN 60584 |
| Protection type | IP67 |
| Special features | Steam-tight, high degree of mechanical strength, multiple measuring points |
| Areas of application | Cooking, boiling, and baking processes in all areas of food processing and food preservation |
