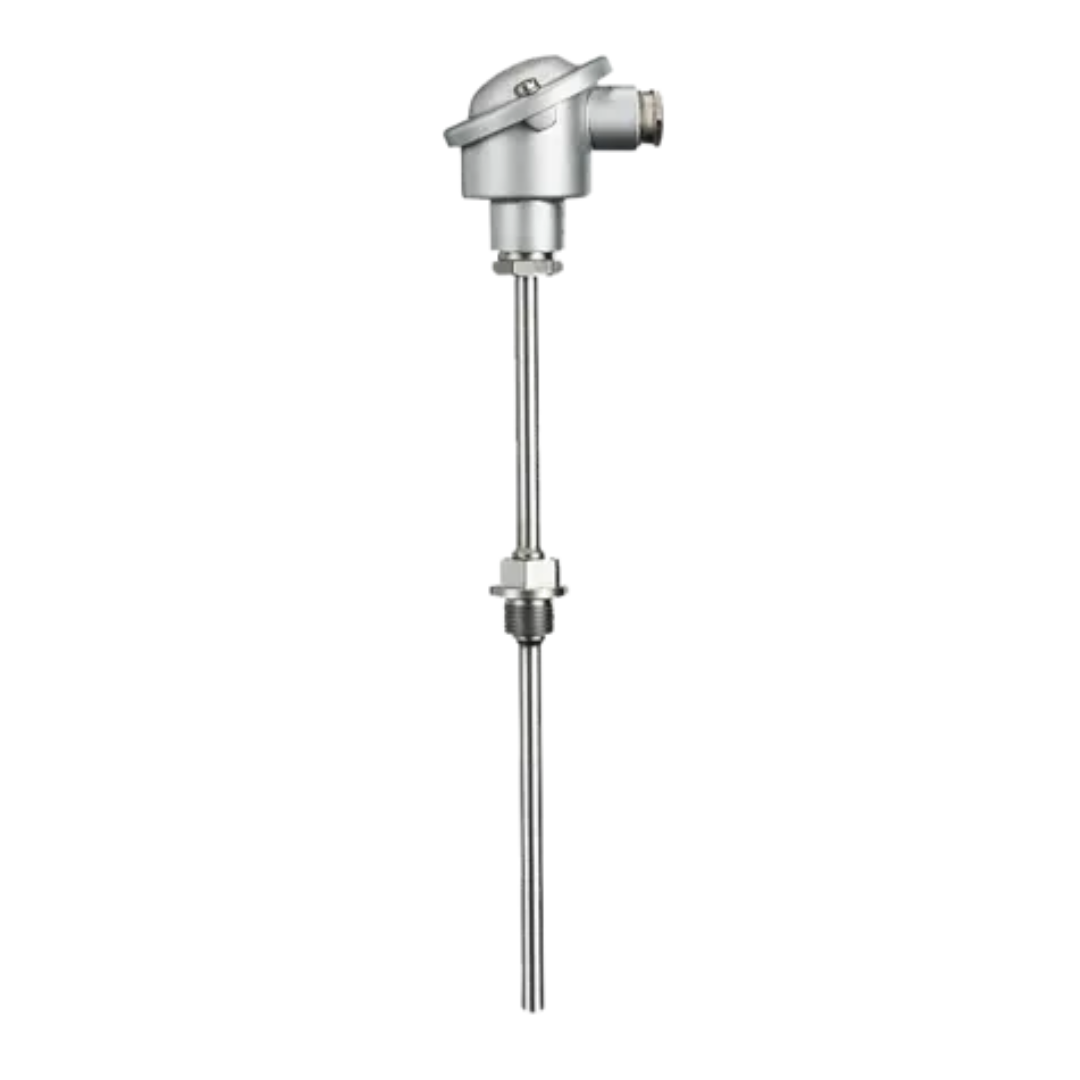

RTD temperature probe

This type of RTD temperature probe may be used in connection with temperature control and limitation devices tested according to DIN EN 14597 (DIN 3440) in heat transmission systems according to DIN 4754.

Categories: RTD temperature probes, Temperature

Technical data
Downloads

Technical data

general technical data
Terminal head	Form B
Temperature	-170 to +500 °C
Process connection	Screw connection G 1/2
Connecting cable	Covered in stainless steel with 0.35 mm² and bend protection
Option	Terminal head or connecting cable. For connecting to JUMO safetyM STB/STW type 701150
Application areas	Heat transmission systems according to DIN 4754; air-conditioning and refrigeration technology; heating, furnace construction, and apparatus engineering
Approvals	DIN 4754, DIN EN 14597 (DIN 3440)
Protection tube	Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3

general technical data

Terminal head

Form B

Temperature

-170 to +500 °C

Process connection

Screw connection G 1/2

Connecting cable

Covered in stainless steel with 0.35 mm² and bend protection

Option

Terminal head or connecting cable. For connecting to JUMO safetyM STB/STW type 701150

Application areas

Heat transmission systems according to DIN 4754; air-conditioning and refrigeration technology; heating, furnace construction, and apparatus engineering

Approvals

DIN 4754, DIN EN 14597 (DIN 3440)

Protection tube

Stainless steel 1.4571, steel St. 35.8, welding shoulder steel 15Mo3
