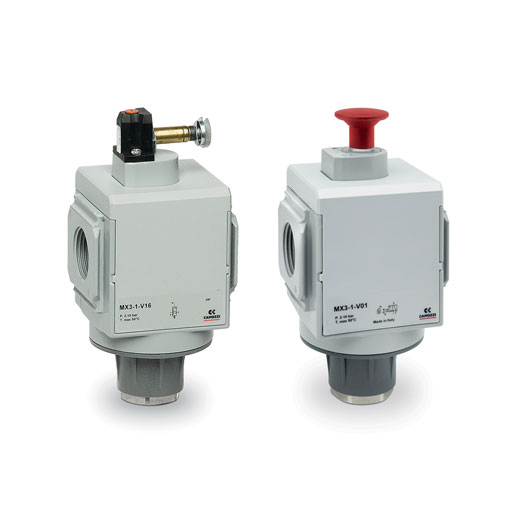

Lockable isolation 3/2-way valves Series MX
MX2 ports: G3/8, G1/2, G3/4 – MX3 ports: G3/4, G1
Modular
Manual, electro-pneumatic, servo-pilot and pneumatic control
Modular
Manual, electro-pneumatic, servo-pilot and pneumatic control
Manual isolation valves are ideal to allow an easy access to the FRL group.
The system is depressurized with the de-activation of the valve.
Electropneumatic isolation valves: ideal where manual access is difficult, they allow a maximum positioning flexibility and are designed to pressurize or depressurize pneumatic systems.
The built-in manual override guarantees security in case of an emergency.
The system is depressurized with the de-activation of the valve.
Electropneumatic isolation valves: ideal where manual access is difficult, they allow a maximum positioning flexibility and are designed to pressurize or depressurize pneumatic systems.
The built-in manual override guarantees security in case of an emergency.
The Series MX has been realized to offer a multi-sector solution that guarantees saving in terms of installation time, space and costs.
General Data
| Construction | Modular, compact, spool-type |
| Ports | MX2: G3/8 – G1/2 – G3/4 MX3: G3/4 – G1 |
| Mounting | In-line Wall-mounting (by means of clamps) |
| Operating temperature | -5°C ÷ 50°C up to 16 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) -5°C ÷ 60°C up to 10 bar (with the dew point of the fluid lower than 2°C at the min. working temperature) |
| Operating pressure | Manual valve: -0,8 bar ÷ 10 bar Electro-pneumatic valve: 2 bar ÷ 10 bar Servopilot or pneumatic valve: -0,8 bar ÷ 10 bar (with pilot 3.5 ÷ 10 bar) |
| Nominal exhaust flow at 6 bar with ∆p = 1 bar | MX2: 6000 Nl/min MX3: 9200 Nl/min |
| Fluid | Compressed air |
Coding Example
| MX | 2 | – | 3/8 | – | V | 01 | – | LH |
| MX | SERIES |
| 2 | SIZE 2 = G3/8 – G1/2 – G3/4 3 = G3/4 – G1 |
| 3/8 | PORT 3/8 = G3/8 1/2 = G1/2 3/4 = G3/4 1 = G1 |
| V | 3/2-WAY VALVE |
| 01 | DESIGN TYPE 01 = lockable manual control 16 = electro-pneumatic control 17 = servo-pilot control 36 = pneumatic control |
| LH | FLOW DIRECTION = from left to right (standard) LH = from right to left |
For the assembly of a single component with fixing flanges or wall-mounting, see the section “FRL Series MX Assembled”.
