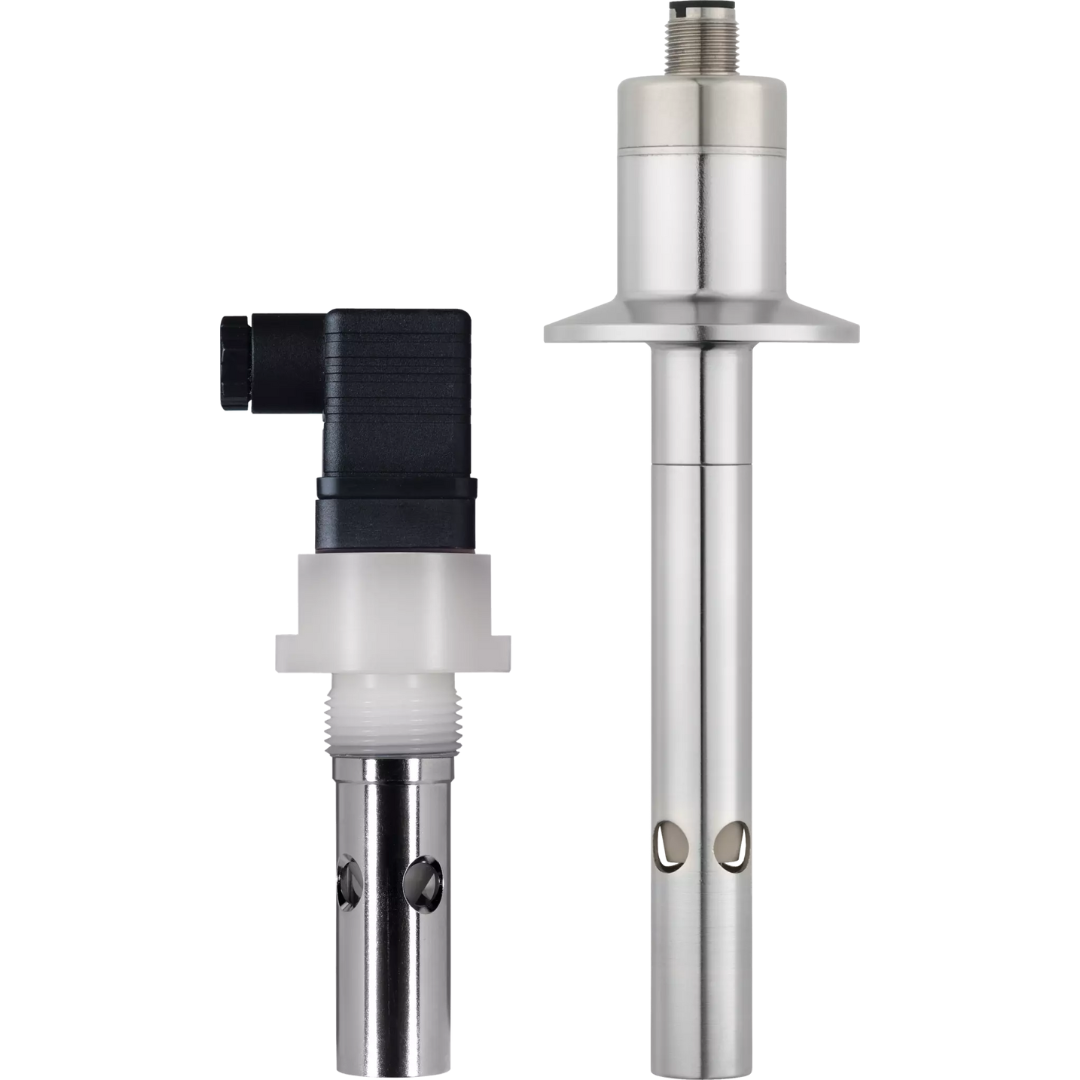

JUMO tecLine CR

These sensors are used in conjunction with conductivity transmitters to define the electrolytic conductivity in liquids. The materials in the sensors are physiologically harmless and meet FDA requirements.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	0.05 μS/cm to 1 mS/cm
Electrode material	Stainless steel (1.4571 or 1.4435); titanium
Process connection	Thread G 1/2 A, thread G 3/4 A, thread G 1 A, thread 1/2“-14 NPT, thread 3/4“-14 NPT, taper socket for union nut DN 25, DIN 11851 (dairy pipe fitting), clamp DN 25
Process pressure	16 bar at 25 °C or 9 bar at 60 °C; high-temperature version: 40 bar at 25 °C or 17 bar at 200 °C
Operating temperature	Up to 135 °C (200 °C as optional extra)
Cell constant	K = 0.01 or 0.1
Features	Diverse process connections; robust design type; pharmaceutical version incl. ASTM certificate
Areas of application	Purified water and highly-purified water; boiler feed water; chip manufacturing; ion exchangers and reverse osmosis plants; high-temperature applications

General technical data

Measuring range

0.05 μS/cm to 1 mS/cm

Electrode material

Stainless steel (1.4571 or 1.4435); titanium

Process connection

Thread G 1/2 A, thread G 3/4 A, thread G 1 A, thread 1/2“-14 NPT, thread 3/4“-14 NPT, taper socket for union nut DN 25, DIN 11851 (dairy pipe fitting), clamp DN 25

Process pressure

16 bar at 25 °C or 9 bar at 60 °C; high-temperature version: 40 bar at 25 °C or 17 bar at 200 °C

Operating temperature

Up to 135 °C (200 °C as optional extra)

Cell constant

K = 0.01 or 0.1

Features

Diverse process connections; robust design type; pharmaceutical version incl. ASTM certificate

Areas of application

Purified water and highly-purified water; boiler feed water; chip manufacturing; ion exchangers and reverse osmosis plants; high-temperature applications
