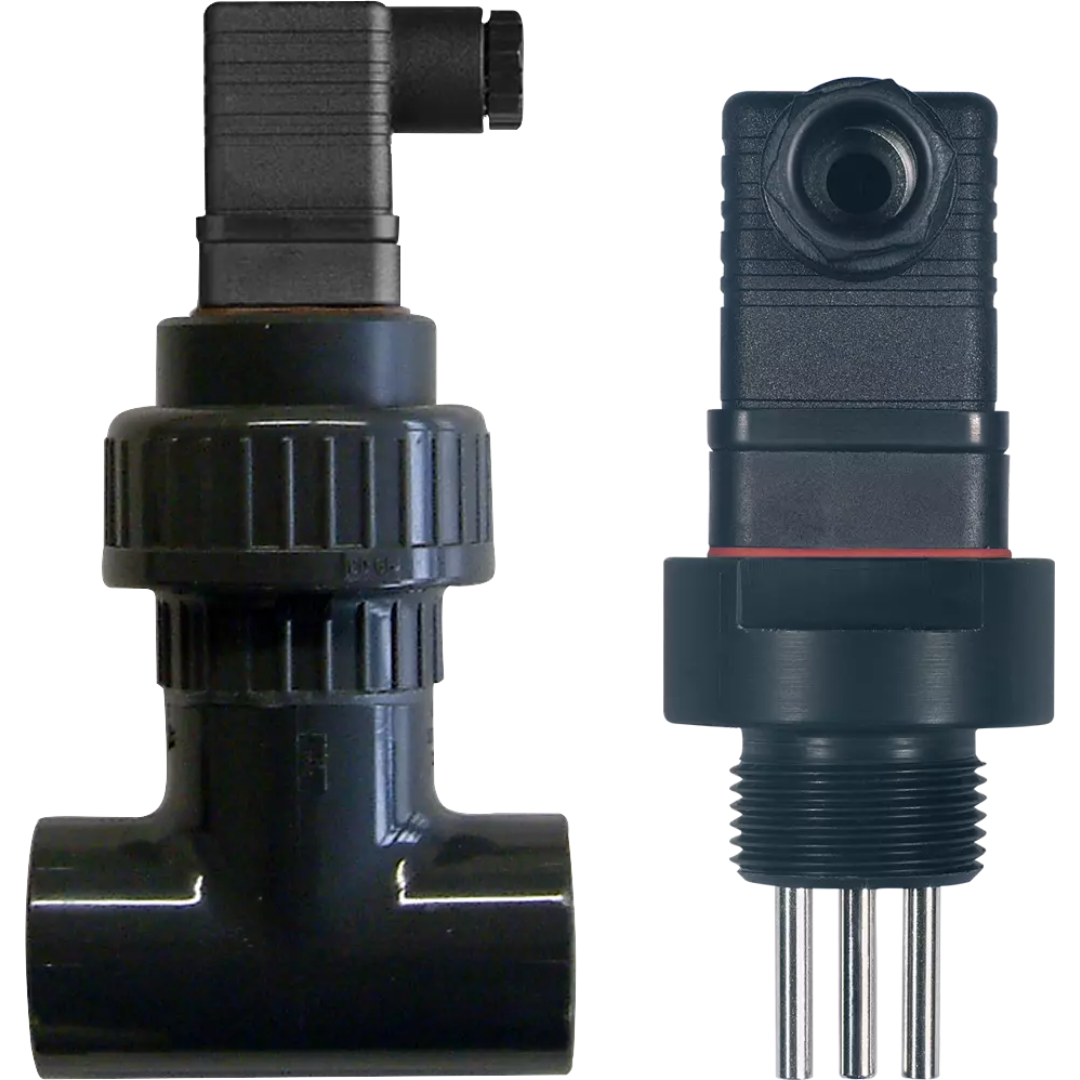

JUMO ecoLine CR-PVC

Conductivity sensors of this type series are used, among other areas, in general water technology, cooling and air conditioning system technology, drinking water and swimming pool water sectors, and in industrial rinsing and process water circuits. The electrode material is stainless steel or special graphite.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	0.01 μS/cm to 15 mS/cm
Electrode material	Stainless steel (1.4571) or graphite
Process connection	Screw-in thread G 3/4A, G 1A, union nut DN 25 1 1/2“ for PVC T-pieces
Process pressure	Up to 6 bar
Operating temperature	Up to 55 °C
Cell constant	K = 0.1 or 1.0
Features	Proven versions for industrial use; can be used with T-piece
Areas of application	Cooling and air conditioning system technology; drinking water and swimming pool water; industrial rinsing and process water circuits

General technical data

Measuring range

0.01 μS/cm to 15 mS/cm

Electrode material

Stainless steel (1.4571) or graphite

Process connection

Screw-in thread G 3/4A, G 1A, union nut DN 25 1 1/2“ for PVC T-pieces

Process pressure

Up to 6 bar

Operating temperature

Up to 55 °C

Cell constant
