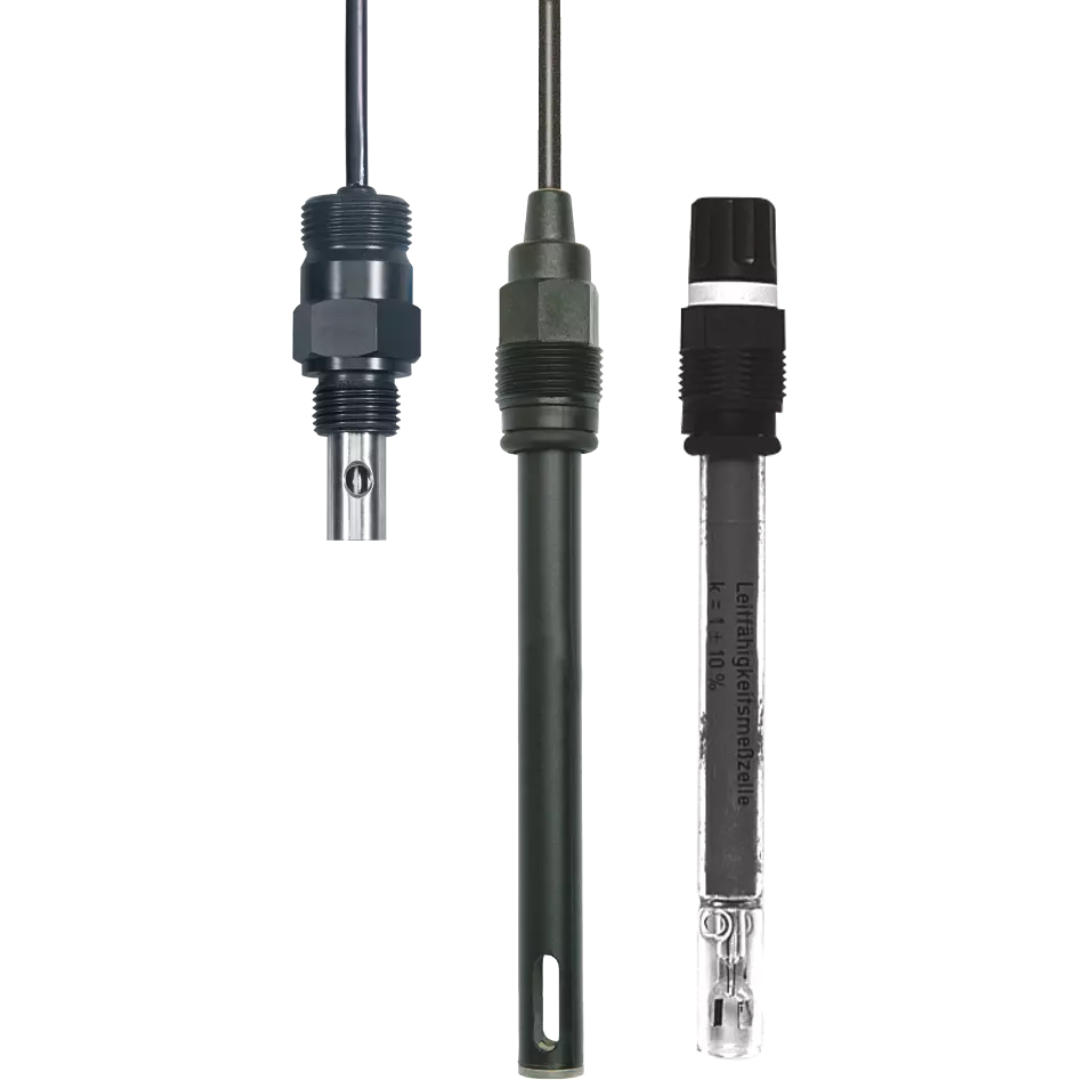

JUMO BlackLine CR-GT/-EC/-GS

The product is available in versions GT, EC, and GS. A special graphite is used in the GT version for water treatment. The main features of the stainless steel EC version are its very compact design type and the integrated Pt100 as a standard feature.

Categories: Electrodes/sensors, JUMO

Technical data
Downloads

Technical data

General technical data
Measuring ranges	0.05 μS/cm to 100 mS/cm
Electrode material	JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum
Process connection	Screw head Pg 13.5, screw-in thread G 1/2A or 1/2″-14 NPT or plug head
Process pressure	Up to 6 bar
Operating temperature	-5 to +80 °C
Cell constant	K = 0.01; 0.1 or 1.0
Features	Compact design type, inexpensive version, for universal application
Areas of application	Drinking water; ion exchangers and reverse osmosis plants; aquaristics

General technical data

Measuring ranges

0.05 μS/cm to 100 mS/cm

Electrode material

JUMO BlackLine CR-GT: special graphite; JUMO BlackLine CR-EC: stainless steel (1.4571) or titanium; JUMO BlackLine CR-GS: platinum

Process connection

Screw head Pg 13.5, screw-in thread G 1/2A or 1/2″-14 NPT or plug head

Process pressure

Up to 6 bar

Operating temperature

-5 to +80 °C

Cell constant
