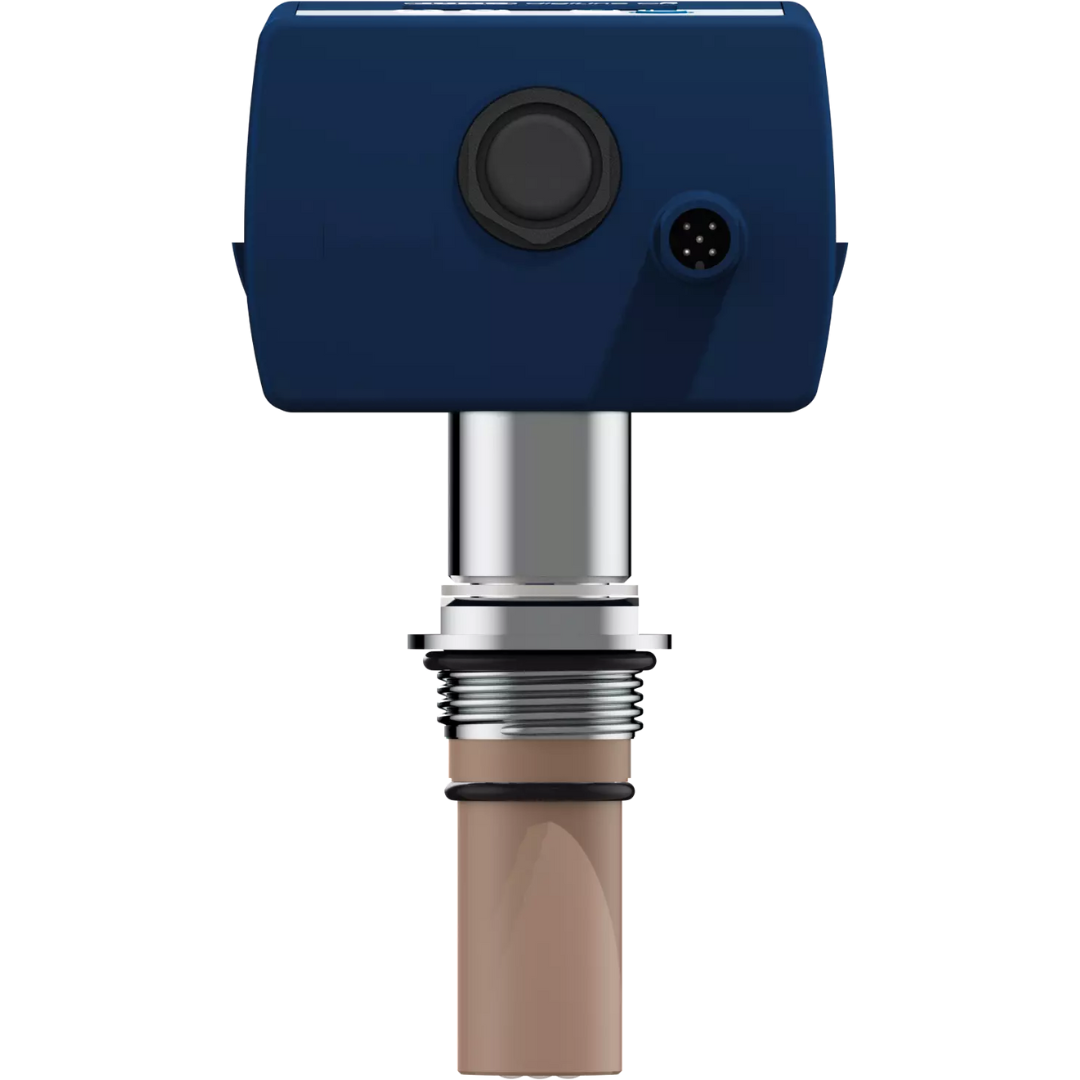

JUMO digiLine CR HT70

JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.

Categories: Electrodes/sensors, Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Measuring principle	Conductive
Sensor connection	Compact design type
Sensor material	Stainless steel 1.4435 and PEEK
Measuring range	50 µS/cm to 2000 mS/cm
Temperature compensation	Linear, ASTM, USP <645>
Temperature	Max. 120 °C (temporarily 140 °C)
Pressure	Max. 16 bar
Interfaces	JUMO digiLine or IO-Link
Areas of application	Rinsing processes in the food industry, beverage technology, pharmaceutical technology, and biotechnology (e.g. CIP and SIP processes, backwashing processes for ion exchangers, phase separation); pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water

General technical data

Measuring principle

Conductive

Sensor connection

Compact design type

Sensor material

Stainless steel 1.4435 and PEEK

Measuring range

50 µS/cm to 2000 mS/cm

Temperature compensation

Linear, ASTM, USP <645>

Temperature

Max. 120 °C (temporarily 140 °C)

Pressure

Max. 16 bar

Interfaces

JUMO digiLine or IO-Link

Areas of application

Rinsing processes in the food industry, beverage technology, pharmaceutical technology, and biotechnology (e.g. CIP and SIP processes, backwashing processes for ion exchangers, phase separation); pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water
