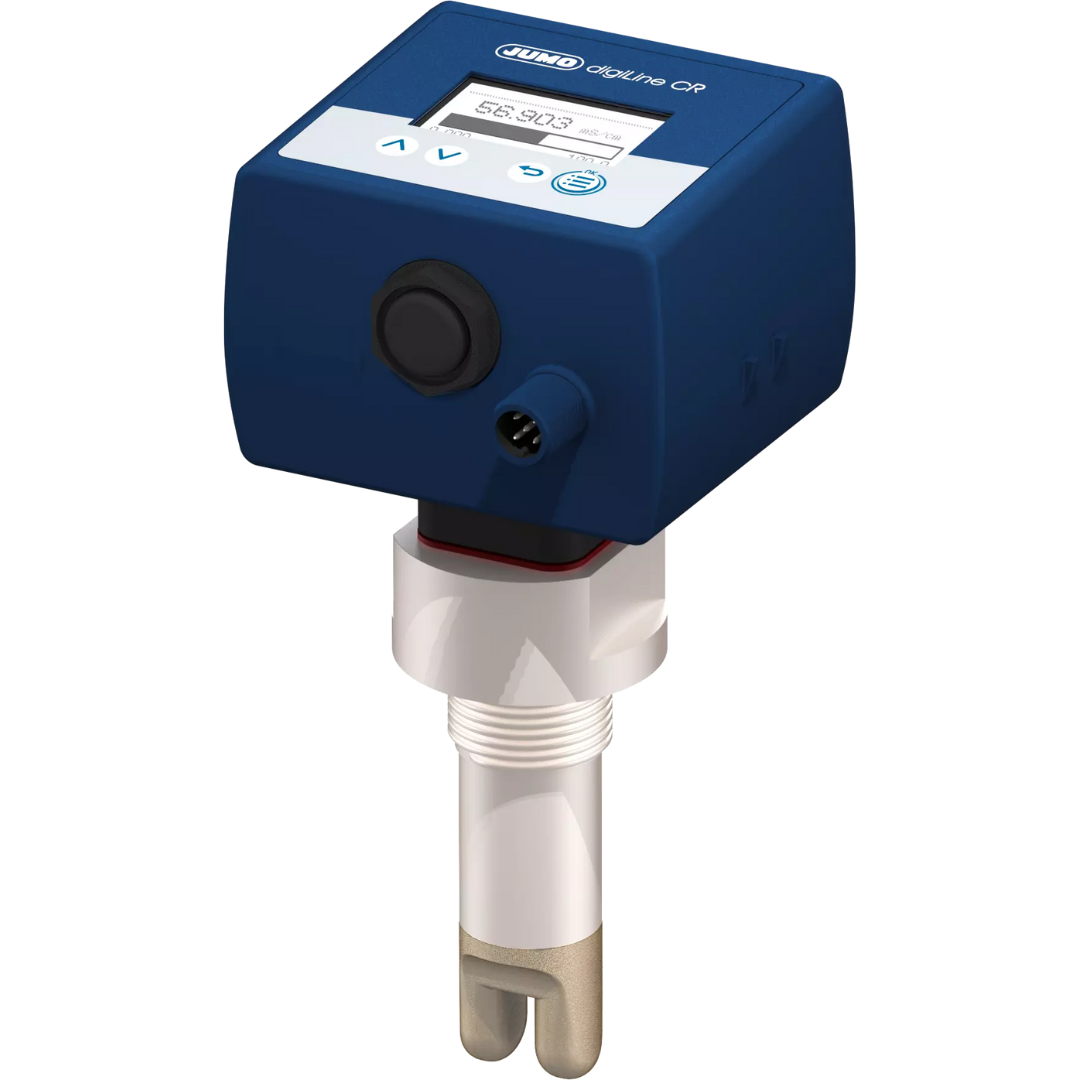

JUMO digiLine CR HT60
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
Technical data
| General technical data | |
|---|---|
| Measuring principle | Conductive |
| Sensor connection | Compact design type |
| Sensor material | PVDF |
| Measuring range | 10 µS/cm to 15 mS/cm |
| Temperature compensation | Linear, ASTM, USP <645> |
| Temperature | Max. 130 °C |
| Pressure | Max. 16 bar |
| Interfaces | JUMO digiLine or IO-Link |
| Areas of application | Fresh water monitoring; water treatment; condensate monitoring |
