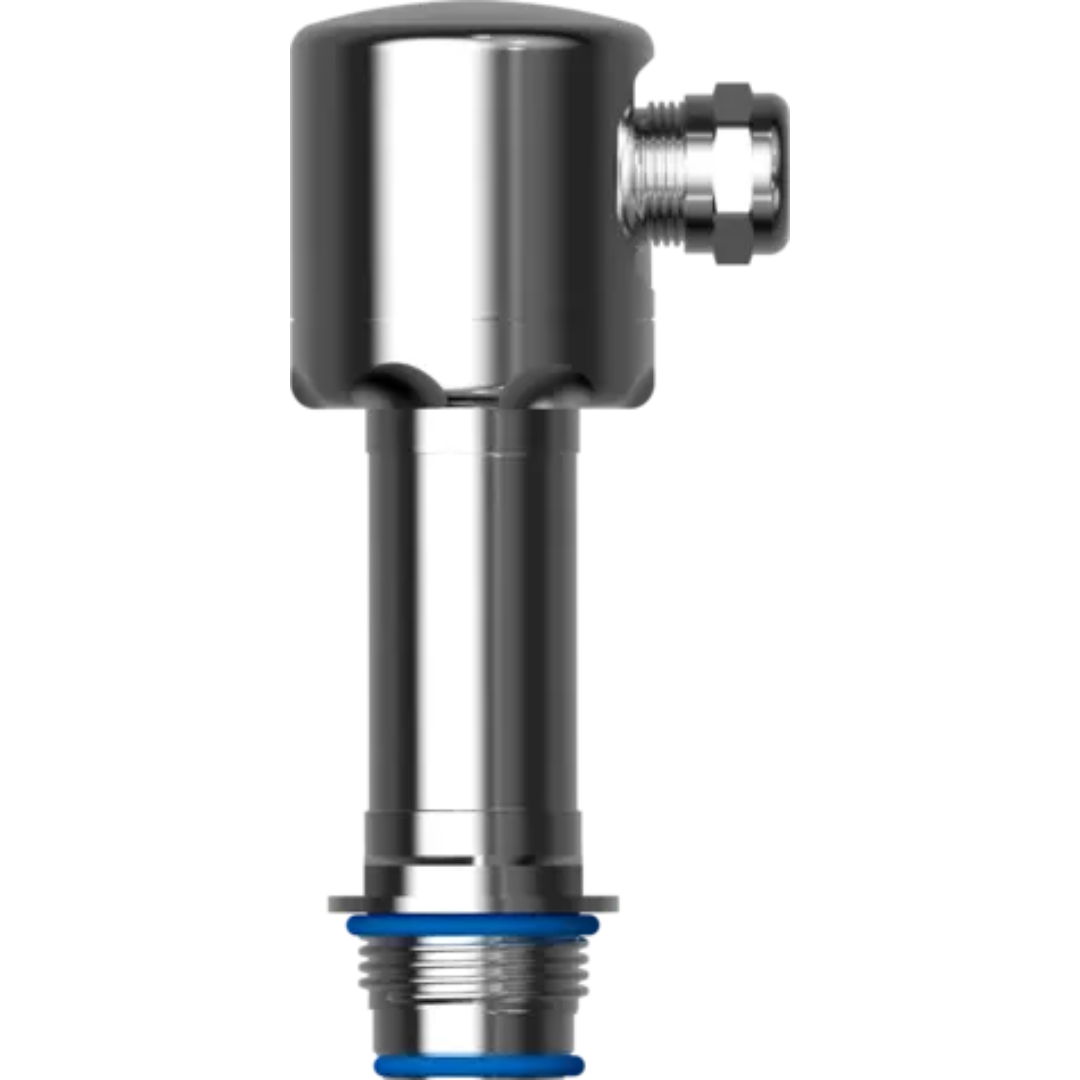

JUMO TAROS S46 H

The device is designed according to the hygienic requirements for precision measurement and a long lifecycle. It offers process reliability through a high degree of accuracy, even over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. pressure or between 0.25 and 40 bar abs. pressure. The transmitter is used is the food and pharmaceutical industry.

Categories: Level, Pressure, Transmitters, Transmitters

Technical data
Downloads

Technical data

general technical data
Measuring range	0.1 to 100 bar rel; 0.25 to 40 bar abs
Medium temperature	-25 to +125 °C (maximum 140 °C for 1h/day)
Accuracy	Up to 0.25 % of the measuring span at 20 °C
Linearity	0,1 %
Long-term stability	0,1 %
Parts in contact with the product	1.4404 and 1.4435 (316L)
Process connections	Hygienic process connections: Milk cone, tank connection; EHEDG-certified process connections: Clamp, VARIVENT®, JUMO PEKA; electrolytically polished process connections (optional).
Electrical connection	Attached cable, round plug M12 × 1, line socket, terminal head
Protection type	IP65 to IP69 (depending on the electrical connection)
Voltage supply	DC 24 V
Special features	Easy zero point correction using a magnet, hygienic process connections, FDA-compliant materials
Application areas	Food and beverage industry; CIP and SIP applications; sterilizers and autoclaves; pharmaceutical, medical and biotechnology, suitable for all hygienic pressure measurement applications.

general technical data

Measuring range

0.1 to 100 bar rel; 0.25 to 40 bar abs

Medium temperature

-25 to +125 °C (maximum 140 °C for 1h/day)

Accuracy

Up to 0.25 % of the measuring span at 20 °C

Linearity

0,1 %

Long-term stability

0,1 %

Parts in contact with the product

1.4404 and 1.4435 (316L)

Process connections

Hygienic process connections: Milk cone, tank connection; EHEDG-certified process connections: Clamp, VARIVENT®, JUMO PEKA; electrolytically polished process connections (optional).

Electrical connection

Attached cable, round plug M12 × 1, line socket, terminal head

Protection type

IP65 to IP69 (depending on the electrical connection)

Voltage supply

DC 24 V

Special features

Easy zero point correction using a magnet, hygienic process connections, FDA-compliant materials

Application areas

Food and beverage industry; CIP and SIP applications; sterilizers and autoclaves; pharmaceutical, medical and biotechnology, suitable for all hygienic pressure measurement applications.
