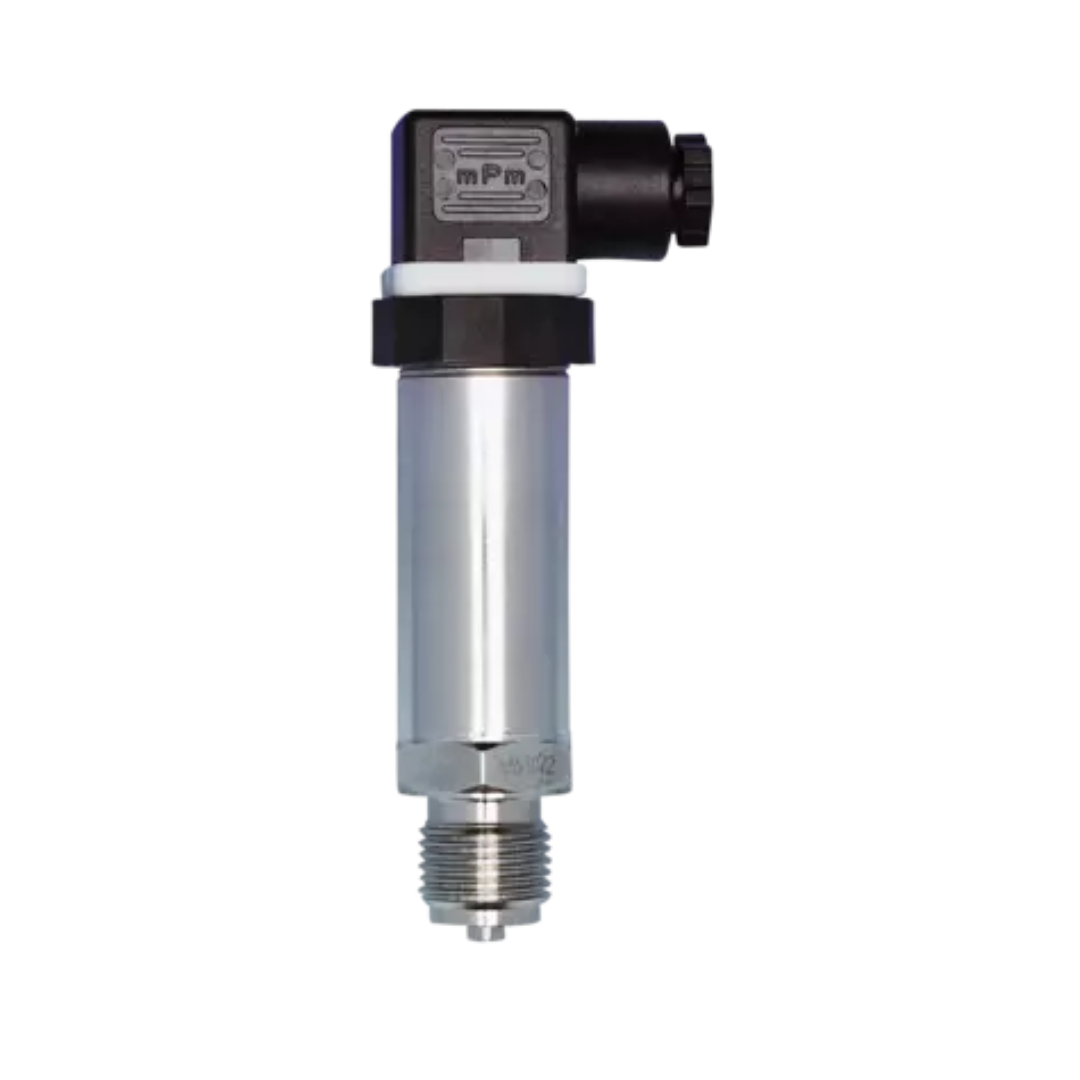

JUMO dTRANS p30

The product records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Input	-1 to +600 bar relative pressure; 0 to 25 bar absolute pressure
Process connection	Thread; hygienic connections; JUMO PEKA; diaphragm seals
Medium temperature	-30 to +120 °C
Output	4 to 20 mA; two-wire; 0 to 20 mA, three-wire; 0 to 10 V, three-wire
Accuracy (linearity)	0.3 to 0.5 %

general technical data

Input

-1 to +600 bar relative pressure; 0 to 25 bar absolute pressure

Process connection

Thread; hygienic connections; JUMO PEKA; diaphragm seals

Medium temperature

-30 to +120 °C

Output

4 to 20 mA; two-wire; 0 to 20 mA, three-wire; 0 to 10 V, three-wire

Accuracy (linearity)

0.3 to 0.5 %
