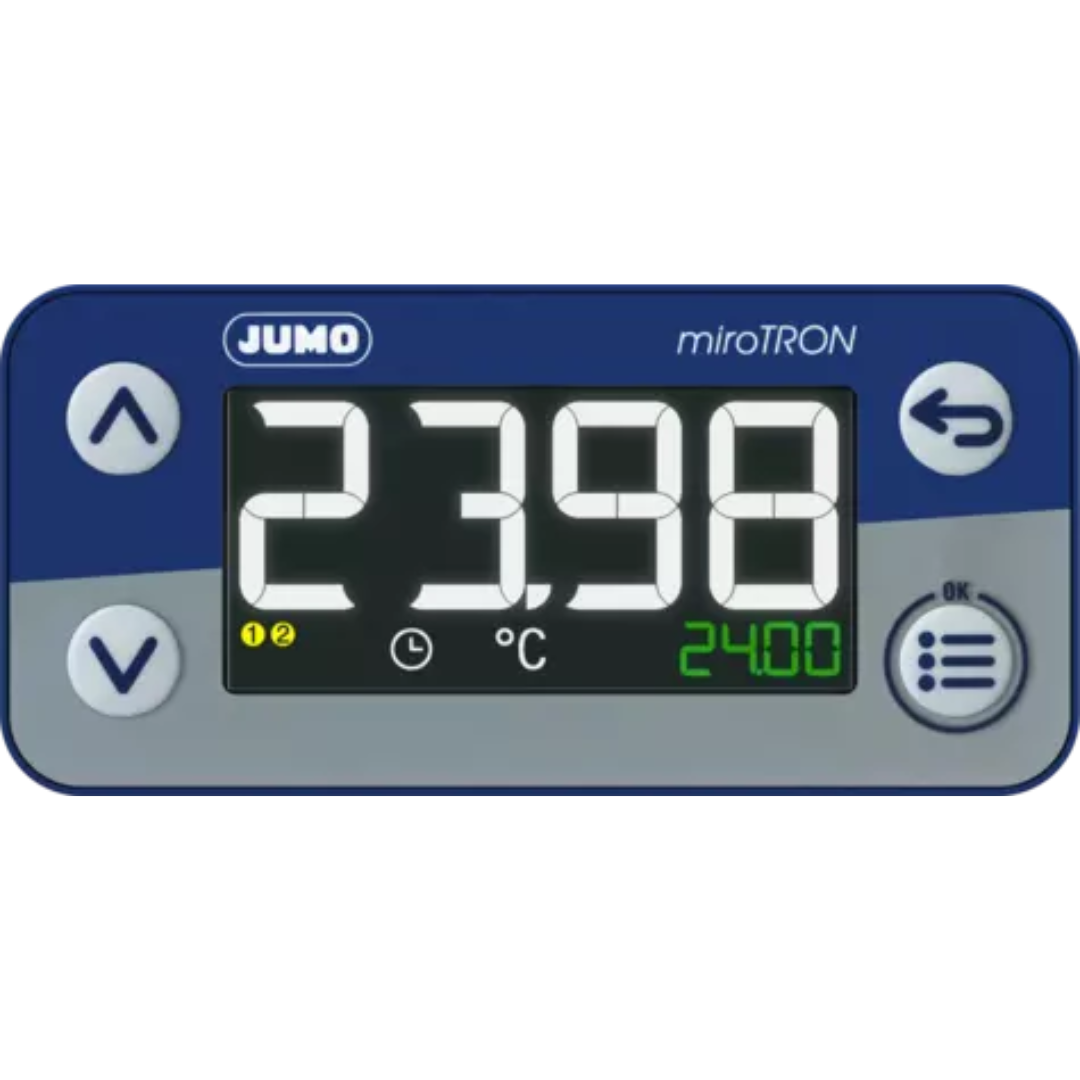

JUMO miroTRON

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement inputs for RTD temperature probes or thermocouples and standard signals.

Categories: Control, Controller, Controller, Controllers, Flow, Level, Pressure, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Measurement inputs	RTD temperature probes, thermocouples, or standard signals
Outputs	Up to 4 relays
Voltage supply	AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %
Formats	701080: (76 × 36 × 62) mm; 701081: (76 × 36 × 72) mm
Approval	cULus
Special features	Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications

general technical data

Measurement inputs

RTD temperature probes, thermocouples, or standard signals

Outputs

Up to 4 relays

Voltage supply

AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %

Formats

701080: (76 × 36 × 62) mm; 701081: (76 × 36 × 72) mm

Approval

cULus

Special features

Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications
