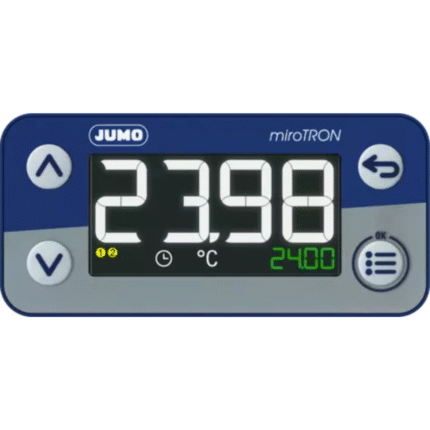

JUMO miroTRON

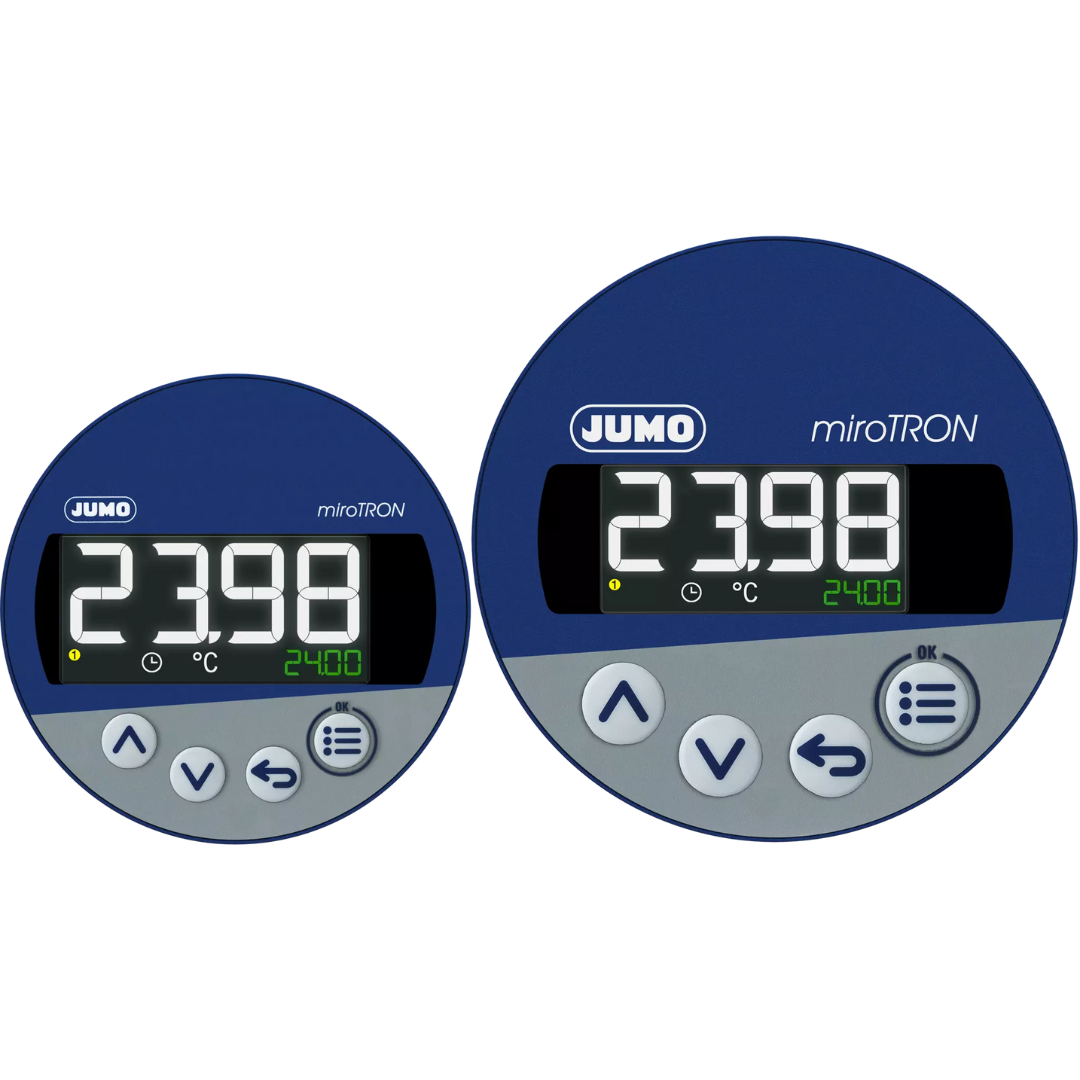

The JUMO miroTRON is a digital electronic thermostat for simple temperature control with optional PID two-point controller function and measurement input for RTD temperature probes. In the 60 mm and 80 mm round installation format, the JUMO miroTRON offers an alternative solution for mechanical dial thermometers or contact dial thermometers.

Categories: Controller, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Measurement inputs	RTD temperature probe
Outputs	1 relay (normally open contact)
Voltage supply	AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %
Formats	701090: (Ø 60 × 80) mm; 701091: (Ø 80 × 80) mm
Approval	cULus
Special features	Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications

general technical data

Measurement inputs

RTD temperature probe

Outputs

1 relay (normally open contact)

Voltage supply

AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %

Formats

701090: (Ø 60 × 80) mm; 701091: (Ø 80 × 80) mm

Approval

cULus

Special features

Intuitive startup and operation, high degree of control quality due to optional PID autotuning, integrated timer function, service and operating hours counter, cost-effective solution for simple control applications
