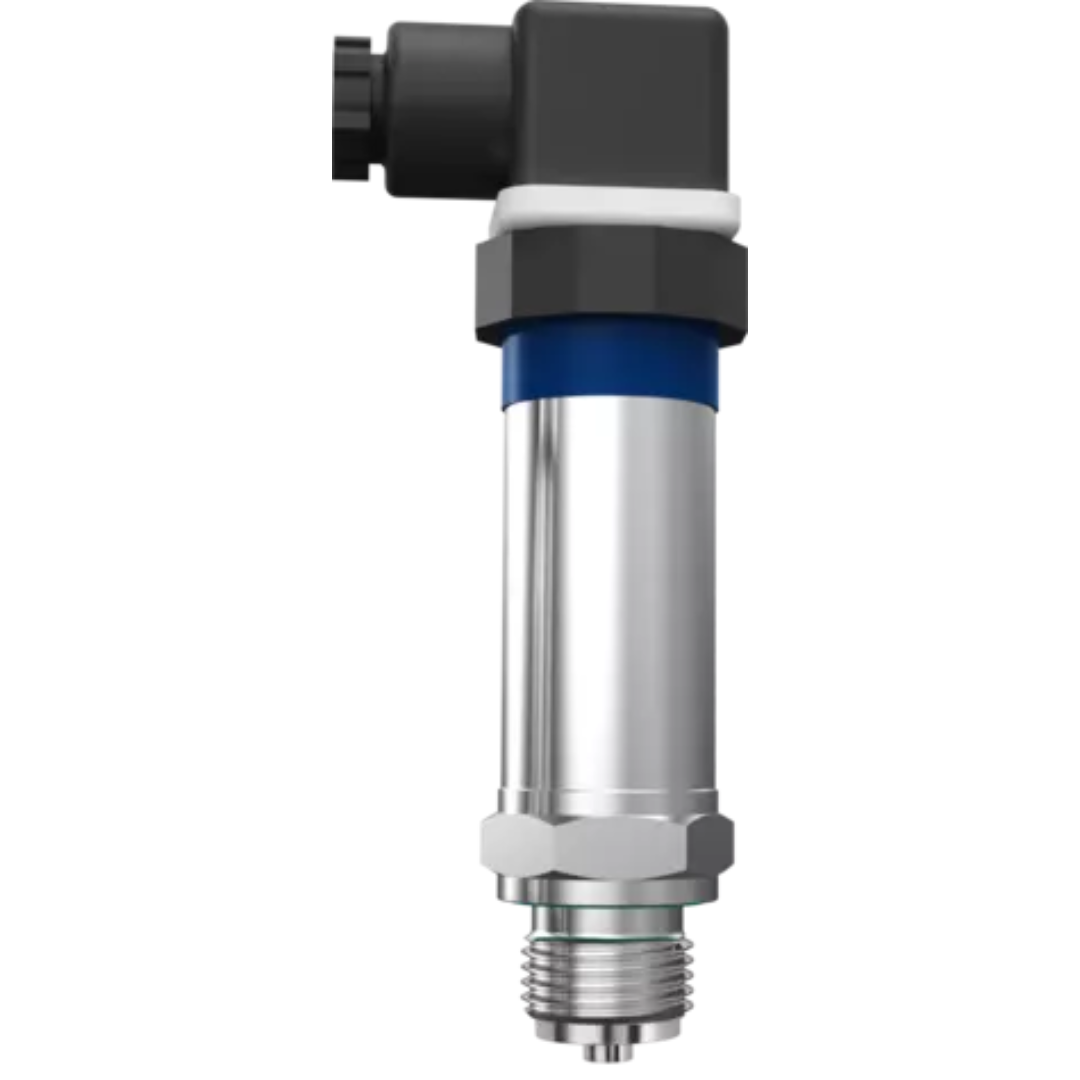

JUMO TAROS S47 P
The pressure transmitter is used to measure relative and absolute pressures in liquid and gaseous media. It offers high process reliability through maximum accuracy as well as over a wide temperature range. The measuring ranges are between 0.1 and 100 bar rel. or 0.6 and 40 bar abs. The precision transmitter is used, among other things, in mechanical and plant engineering.
Technical data
| general technical data | |
|---|---|
| Measuring range | 0.1 to 100 bar rel; 0.6 to 40 bar abs |
| Medium temperature | -25 to +125 °C (maximum 140 °C for 1h/day) |
| Accuracy | Up to 0.25 % of the measuring span at 20 °C |
| Linearity | 0,1 % |
| Long-term stability | 0,1 % |
| Parts in contact with the product | 1.4404 and 1.4435 (316L) |
| Process connections | All common process connections |
| Electrical connection | Attached cable, round plug M12 × 1, line socket, terminal head |
| Protection type | IP65 to IP69 (depending on the electrical connection) |
| Voltage supply | DC 24 V |
| Special features | Simple zero point correction using a magnet |
| Application areas | Plant construction and mechanical engineering, pump construction, sterilizers, test equipment construction, calibration technology, laboratories |
