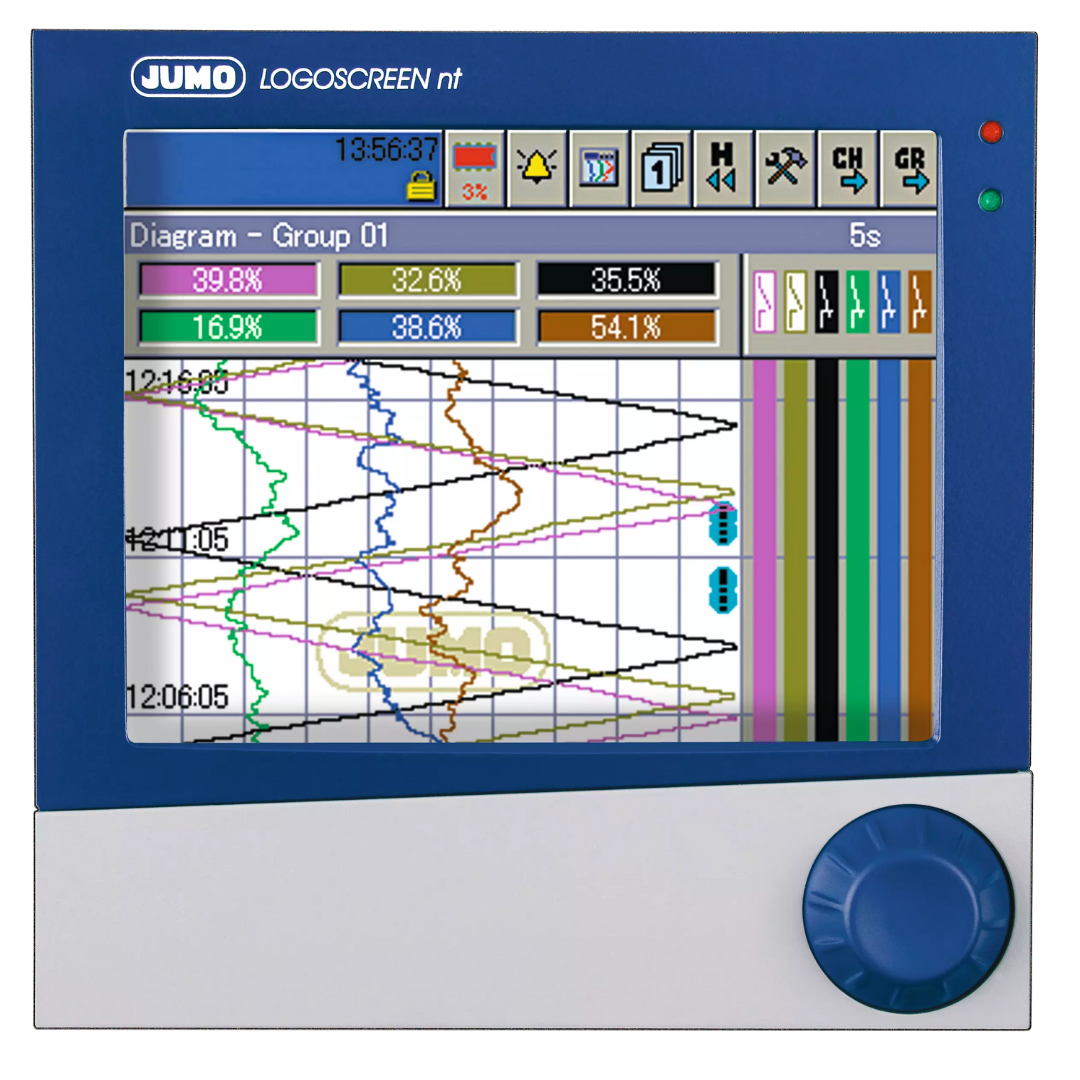

JUMO LOGOSCREEN nt
In the LOGOSCREEN nt data can be visualized as a measured value curve, as a bar graph, or in alphanumerical form on process screens. High-performance PC programs are available to evaluate archived data and to configure the JUMO LOGOSCREEN nt.
Technical data
| General technical data | |
|---|---|
| Measurement inputs | 0/3/6/9/12/15/18 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage 0(2) to 10 V; support of up to 54 external channels respectively (analog and digital) |
| Digital inputs/outputs (switchable) | 0/8/16/24 digital inputs/outputs (8 Hz), from that 0/2/4/6 counting inputs (10 kHz) |
| Interfaces | RS232 for barcode reader, Ethernet, USB (host/device), RS232/485, PROFIBUS DP (optional) Modbus master/slave (RS485) |
| Relay (changeover contact) | 1 (standard), 6 more optionally |
| Display | 5.5 inch TFT color screen |
| Operation | Control knob or touchpad |
| Internal memory | 256 MB |
| External storage media | USB flash drive, CF memory card |
| Front panel | Zinc die-cast, stainless steel (144 × 144 mm format) |
| Approvals | Metrological certificate, cULus, “milk approval”, ATEX: Ex II 2G Ex px IIC, Ex II 2D Ex px IIIC (only with stainless steel front) |
| Special features | Lifecycle data management, web server function with visualization on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, batch reporting (up to 3 batches at the same time), up to 9 customer-specific editable process screens, up to 2 users |
| Protection type on the front | IP65/NEMA 4X |
| Voltage supply | AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz (ELV) |
