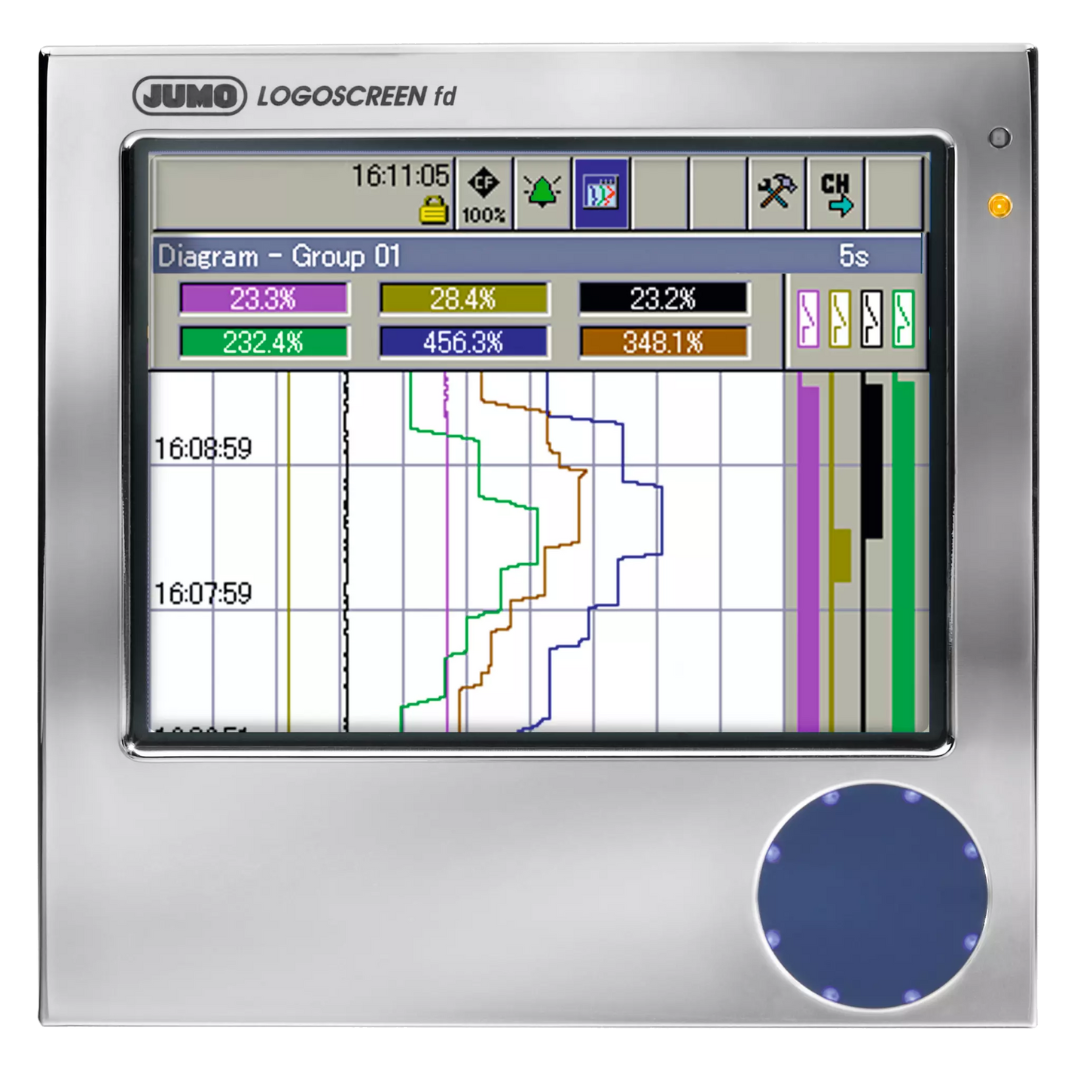

JUMO LOGOSCREEN fd

The JUMO LOGOSCREEN fd by JUMO is a paperless recorder for the electronic acquisition, archiving, and evaluation of process data that fully meets FDA requirements according to 21 CFR Part 11.

Category: Product list A-Z

Technical data
Downloads

Technical data

General technical data
Measurement inputs	0/3/6/9/12/15/18 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage 0(2) to 10 V; support of up to 54 external channels respectively (analog and digital)
Digital inputs/outputs (switchable)	0/8/16/24 digital inputs/outputs (8 Hz), from that 0/2/4/6 counting inputs (10 kHz)
Interfaces	RS232 for barcode reader, Ethernet, USB (host/device), RS232/485, PROFIBUS DP (optional) Modbus master/slave (RS485)
Relay (changeover contact)	2 (standard), 6 more optionally
Display	5.5 inch TFT color screen
Operation	Control knob or touchpad
Internal memory	256 MB
External storage media	CF memory card, USB flash drive
Front panel	Zinc die-cast, stainless steel (144 × 144 mm format)
Approvals	Metrological certificate, cULus, “milk approval”, FDA compliant according to 21 CFR Part 11, ATEX: Ex II 2G Ex px IIC, Ex II 2D Ex px IIIC (only with stainless steel front)
Special features	Lifecycle data management, web server function with visualization on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, batch reporting (up to 3 batches at the same time), up to 9 customer-specific editable process screens, up to 50 users possible, electronic signature
Protection type on the front	IP65/NEMA 4X
Voltage supply	AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz (ELV)

General technical data

Measurement inputs

0/3/6/9/12/15/18 user configurable analog inputs for RTD temperature probes, thermocouples, current 0(4) to 20 mA, voltage 0(2) to 10 V; support of up to 54 external channels respectively (analog and digital)

Digital inputs/outputs (switchable)

0/8/16/24 digital inputs/outputs (8 Hz), from that 0/2/4/6 counting inputs (10 kHz)

Interfaces

RS232 for barcode reader, Ethernet, USB (host/device), RS232/485, PROFIBUS DP (optional) Modbus master/slave (RS485)

Relay (changeover contact)

2 (standard), 6 more optionally

Display

5.5 inch TFT color screen

Operation

Control knob or touchpad

Internal memory

256 MB

External storage media

CF memory card, USB flash drive

Front panel

Zinc die-cast, stainless steel (144 × 144 mm format)

Approvals

Metrological certificate, cULus, “milk approval”, FDA compliant according to 21 CFR Part 11, ATEX: Ex II 2G Ex px IIC, Ex II 2D Ex px IIIC (only with stainless steel front)

Special features

Lifecycle data management, web server function with visualization on the device, integrator/counter, math/logic functions (optional), SNTP time synchronization, batch reporting (up to 3 batches at the same time), up to 9 customer-specific editable process screens, up to 50 users possible, electronic signature

Protection type on the front

IP65/NEMA 4X

Voltage supply

AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz (ELV)
