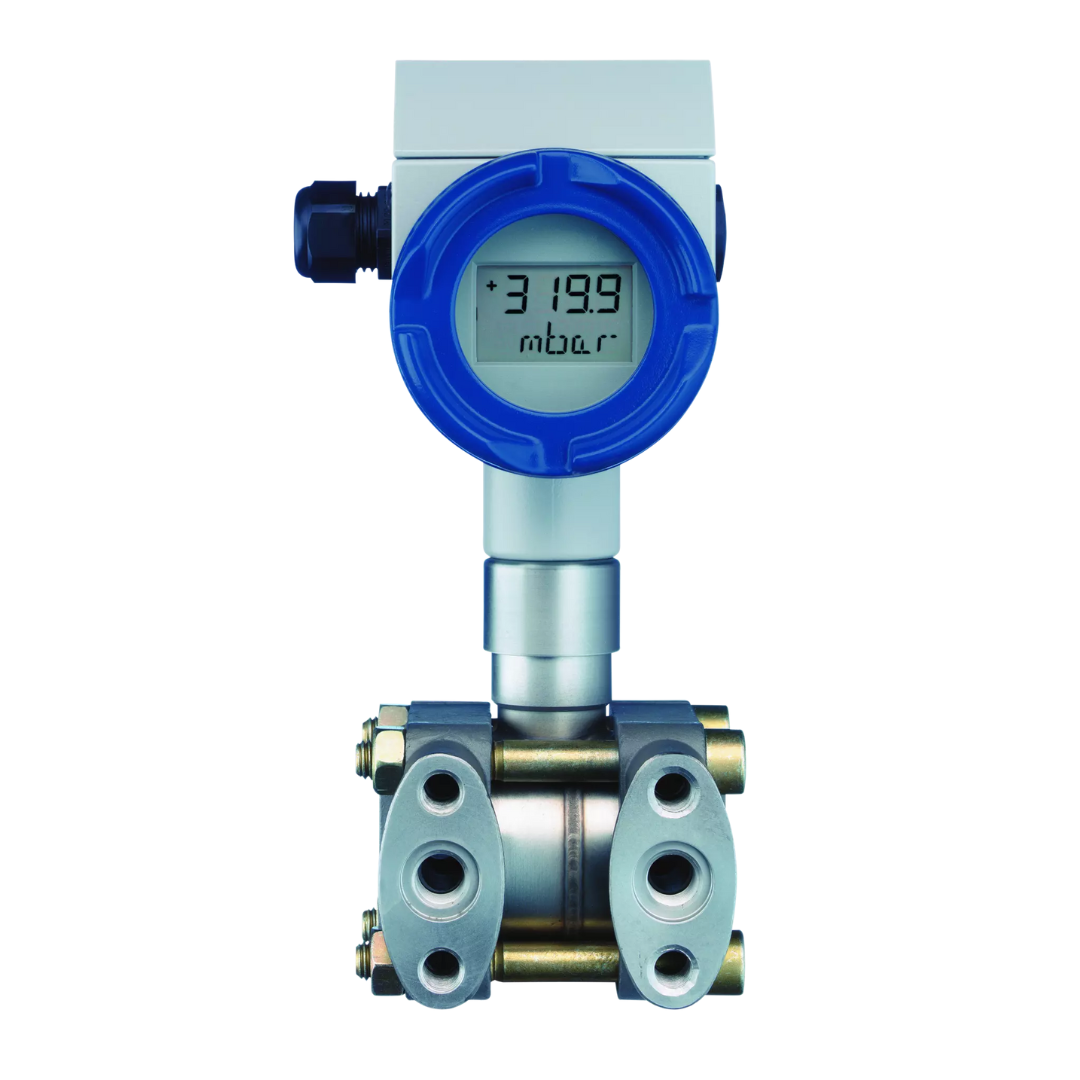

JUMO dTRANS p02 DELTA
The product measures the differential pressure of non-aggressive and aggressive gases, steam, and liquids. The output signal is a load-independent direct current which is linearly proportional to the input pressure. For special applications, an extensive range of diaphragm seals is available.
Technical data
| General technical data | |
|---|---|
| Medium temperature | -40 to +120 °C |
| Input | 12 mbar to 25 bar DP, rel. |
| Output | 4 to 20 mA two-wire; HART® |
| Process connection | 2×1/4-18 NPT, diaphragm seal |
| Accuracy (linearity) | 0.10 % |
| Special features | Maximum precision; programmable; stainless steel sensor; aluminum housing |
| Application | Non-aggressive and aggressive gases, steam, and liquids |
