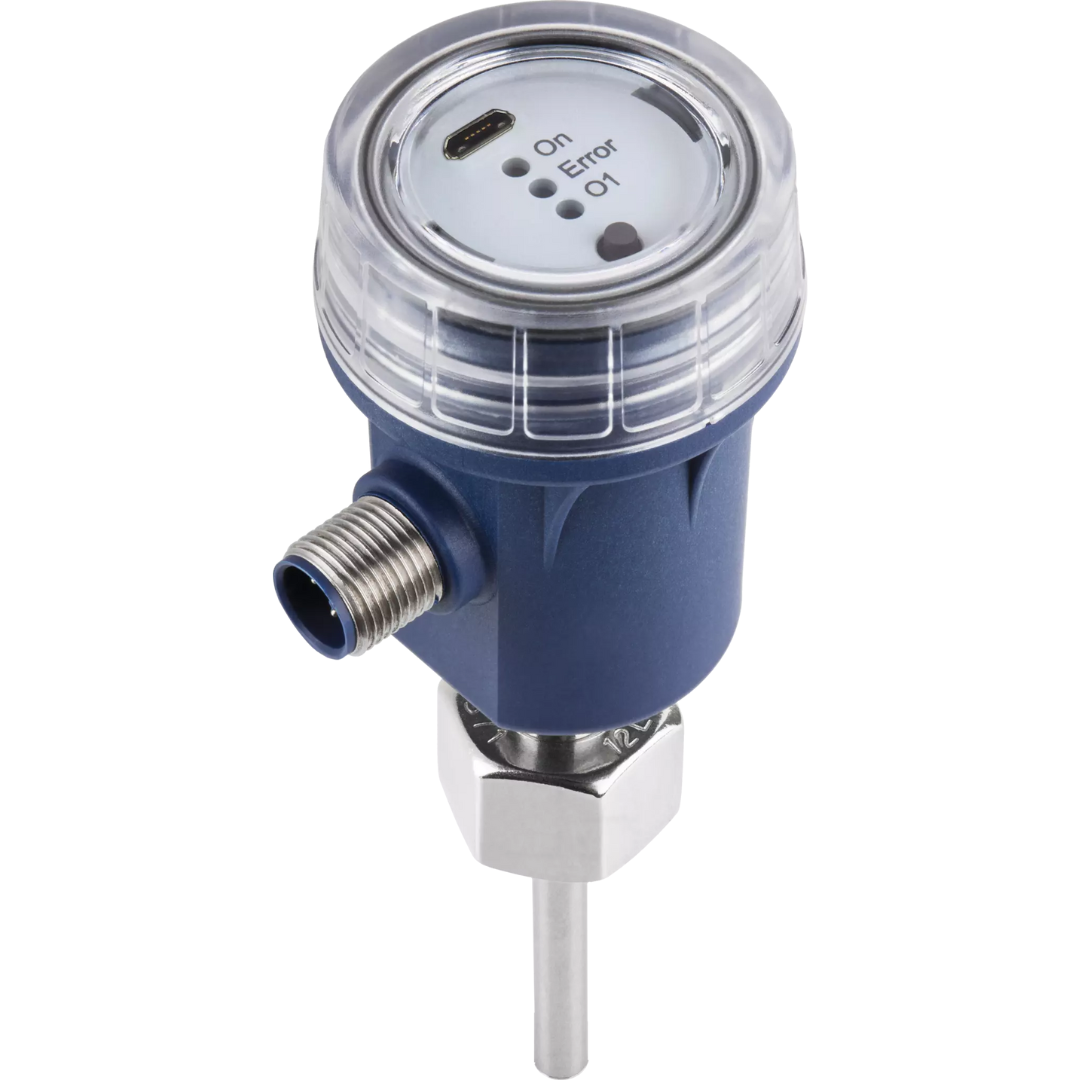

JUMO PINOS L02

The flow sensor measures and monitors flow velocities of liquid media. The measurement method is based on the calorimetric measuring principle. The measured value can be sent via an analog output 4 to 20 mA or a switching output.

Category: Product list A-Z

Technical data
Downloads

Technical data

General technical data
Measuring range	0 to 300 cm/s
Nominal pressure	PN 75
Medium temperature	-25 to +90 °C
Nominal pipe width	DN 20 to DN 300 (nominal widths larger than DN 50 require on-site calibration)
Outputs	4 to 20 mA and/or PNP switching output
Measuring accuracy	Flow: 8 % of the measuring range end value temperature: ± 1 K
Parts in contact with medium	Stainless steel 316L, 316Ti (1.4404, 1.4571); sealing material FPM
Protection type	IP65; IP67
Voltage supply	DC 24 V ± 10 %
Special feature	Direction-independent mounting (360°); robust design for difficult environmental influences
Accessories	Welded socket; screw-in adapter; PVC spigot; PVC T-piece
