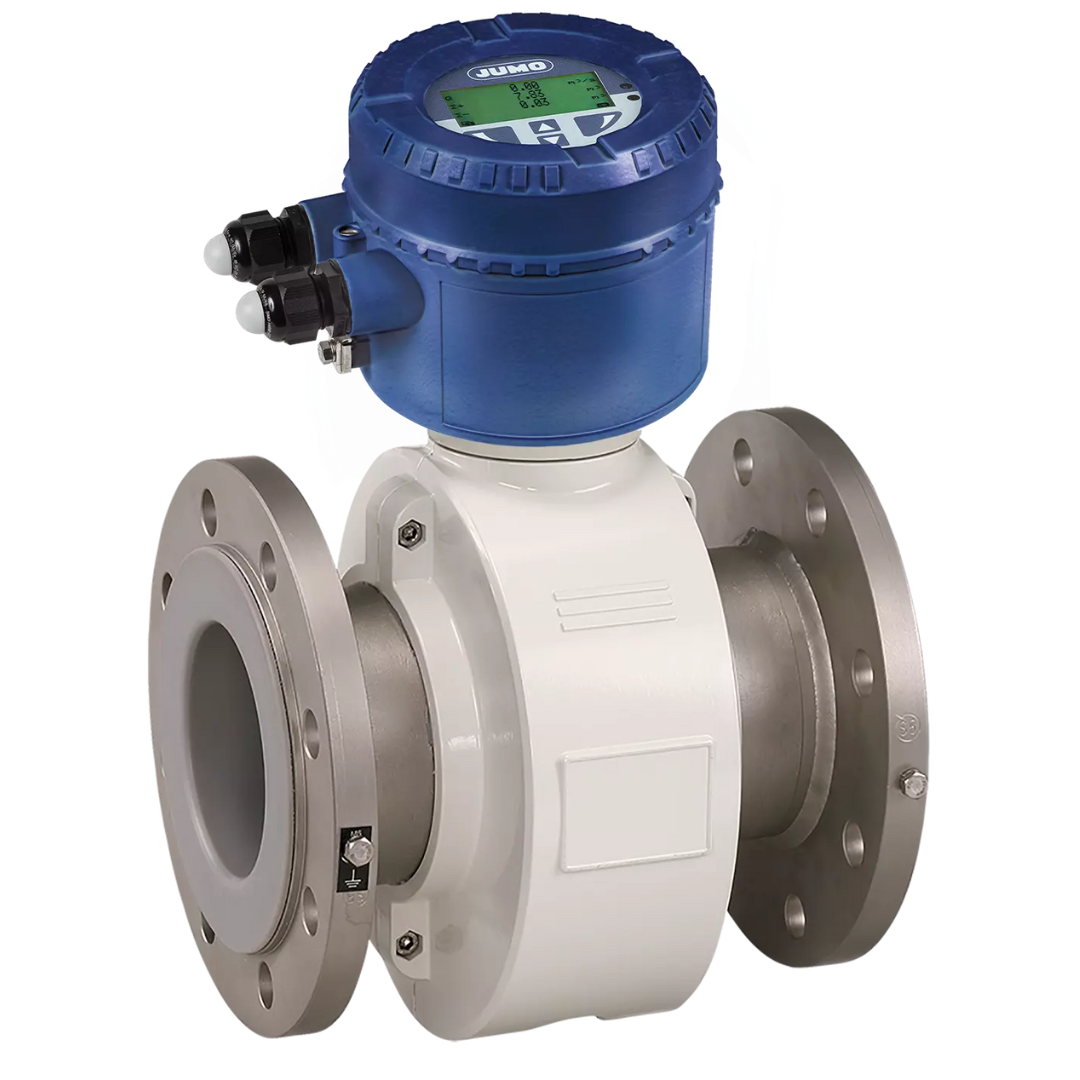

JUMO flowTRANS MAG S10
The electromagnetic flowmeter can be used to measure conductive liquids in pipes with nominal widths from DN 3 to DN 2000. The device has been designed for standard industrial applications and can be used in liquid media with different properties.
Technical data
| General technical data | |
|---|---|
| Lining materials | PTFE; hard rubber; soft rubber; PFA; ETFE; (more upon request) |
| Electrode material | Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium |
| Nominal pressure | PN 10 to PN 40 |
| Medium temperature | 130 °C |
| Nominal pipe width | DN 3 to DN 2000 |
| Inputs/outputs | Analog output 4 to 20 mA; digital output 1 and 2 (passive) |
| Measuring accuracy | 0.5 % of the measured value |
| Process connection | Flange according to DIN, ASME, JIS |
| Process connection material | Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium |
| Protection ratings | IP65; IP67; IP68 (remote mount design type) |
| Voltage supply | AC 100 to 240 V; DC 24 to 48 V |
