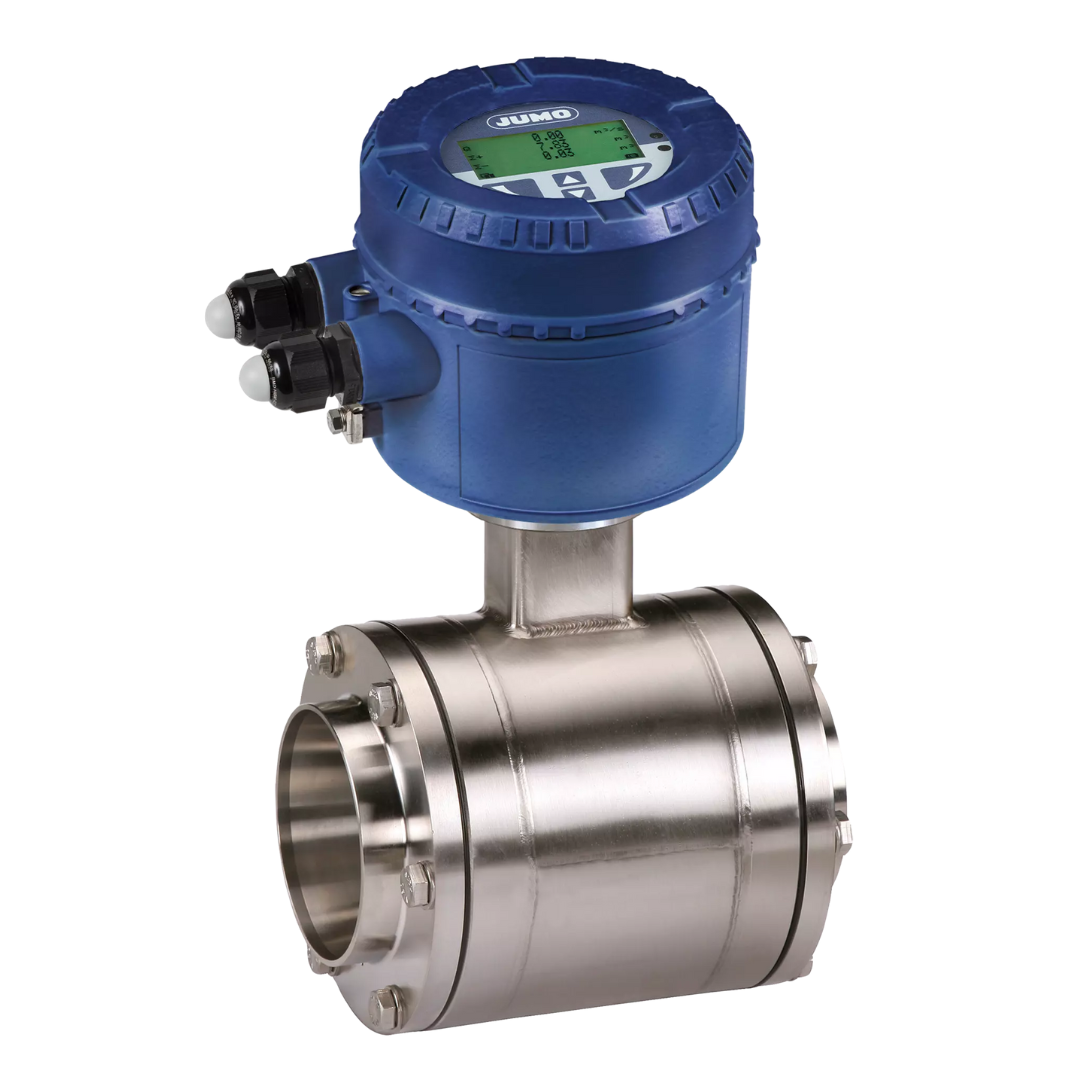

JUMO flowTRANS MAG H10
The electromagnetic flowmeter can be used to measure conductive liquids in pipes with nominal widths from DN 3 to DN 100. The device has been designed for hygienic applications and can be used in liquid media with different properties.
Technical data
| General technical data | |
|---|---|
| Lining materials | PFA |
| Electrode material | Stainless steel 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); tantalum; titanium; platinum-iridium (more upon request) |
| Nominal pressure | PN 10 to PN 40 |
| Medium temperature | 130 °C |
| Nominal pipe width | DN 3 to DN 100 |
| Inputs/outputs | Analog output 4 to 20 mA; digital output 1 and 2 (passive) |
| Measuring accuracy | 0.5 % of the measured value |
| Process connection | Screw connection according to DIN; welded socket according to DIN, ISO; Tri-Clamp according to DIN, ASME BPE; connection flange; flange according to DIN, ASME, JIS; external thread according to DIN, ISO |
| Process connection material | Stainless steel with seal (EPDM, silicone) and fastening; without process connection |
| Protection ratings | IP65; IP67; IP68 (remote mount design type) |
| Voltage supply | AC 100 to 240 V; DC 24 to 48 V |
| Special features | FDA compliant |
