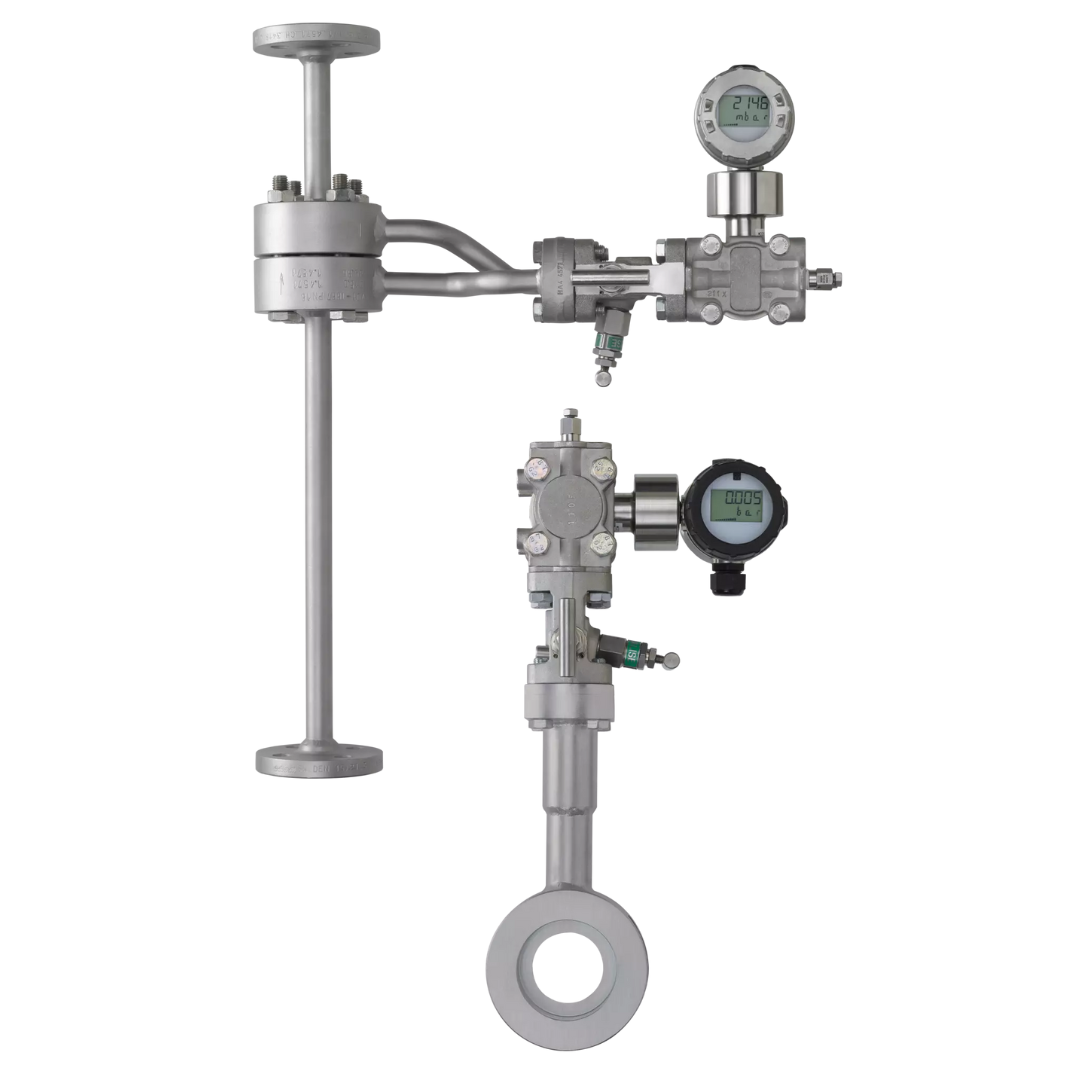

JUMO flowTRANS DP R01/R02
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
Technical data
| General technical data | |
|---|---|
| Type of installation | Inline |
| Product variant | Orifice plate |
| Nominal widths | DN 10 to DN 1000 |
| Nominal pressure | PN 400 |
| Medium temperature | Max. 450 °C |
| Measuring accuracy | 0.5 % of the measured value (uncertainty of the primary element) |
| Materials | AISI 316L (1.4404) |
| Transmitter output | 4 to 20 mA, HART® |
| Process connection | Flange according to DIN or ASME |
| Suitable pressure transmitters | Type 404382 or 403022 |
