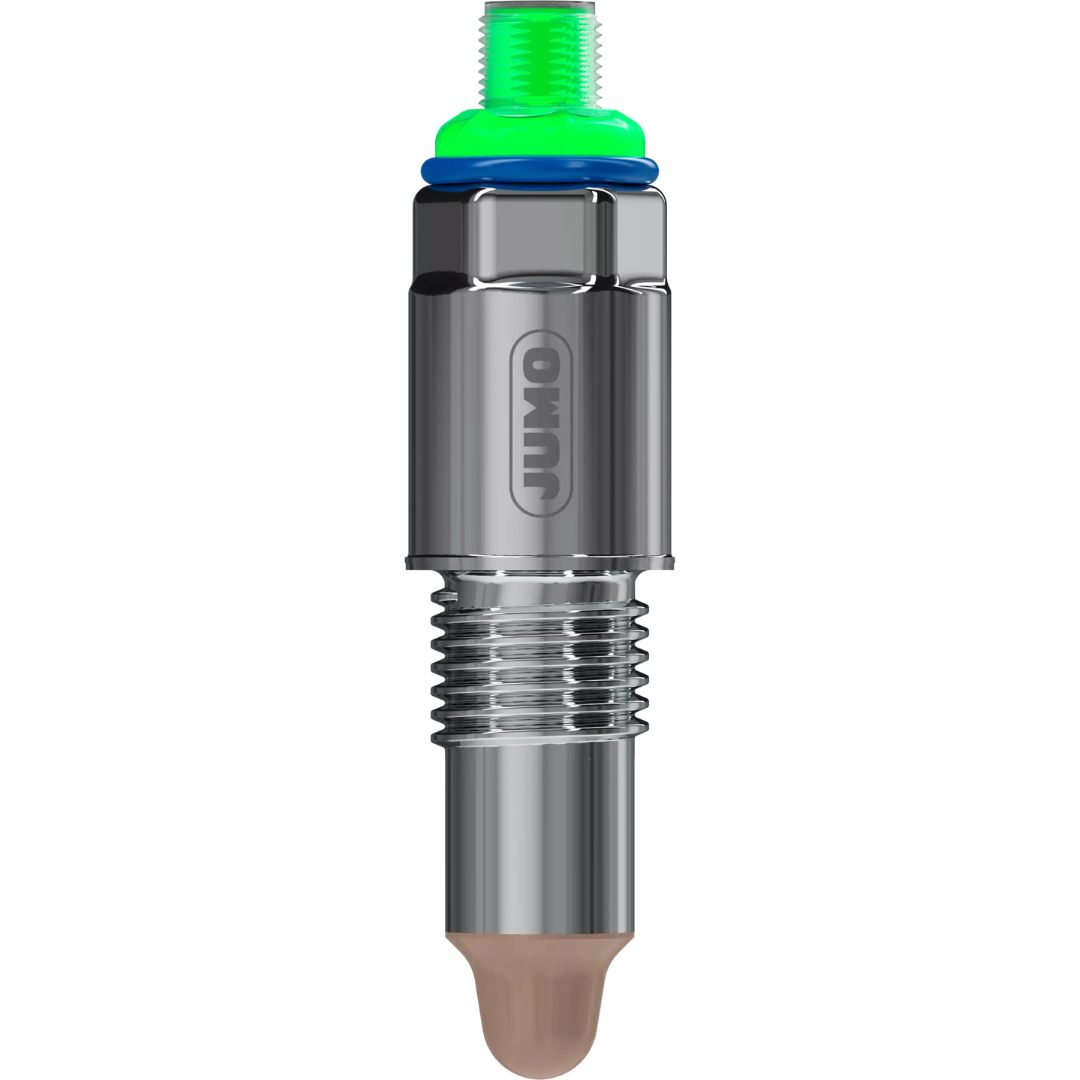

JUMO ZELOS C01 LS

The capacitive level switch identifies the level of liquids and solids. It can also be used in pressurized tanks or pipes. Typically, the level switch is used in industrial environments for applications with requirements for overflow and dry-run protection or for media detection (such as sludge in separation processes).

Categories: Level, Level switches

Technical data
Downloads

Technical data

General technical data
Switching capacity	Up to DC 36 V and 200 mA
Medium temperature	-40 to +200 °C
Repeatability and hysteresis	+/- 1 mm in each case
Output signals	PNP, NPN, push-pull, IO-Link
Parts in contact with medium	PEEK
Additional equipment	unique auto-calibration function as standard, short-circuit and reverse polarity protection, 360° status display according to NE107, IO-Link or customer-specific
Protection type	IP67/IP69
Approvals	ATEX, IEC Ex [Ex i], DNV, WHG, EHEDG, 3A, UL
Declaration of manufacturer	Railway technology test according to DIN EN 50155, CE, RoHS

General technical data

Switching capacity

Up to DC 36 V and 200 mA

Medium temperature

-40 to +200 °C

Repeatability and hysteresis

+/- 1 mm in each case

Output signals

PNP, NPN, push-pull, IO-Link

Parts in contact with medium

PEEK

Additional equipment

unique auto-calibration function as standard, short-circuit and reverse polarity protection, 360° status display according to NE107, IO-Link or customer-specific

Protection type

IP67/IP69

Approvals

ATEX, IEC Ex [Ex i], DNV, WHG, EHEDG, 3A, UL

Declaration of manufacturer

Railway technology test according to DIN EN 50155, CE, RoHS
