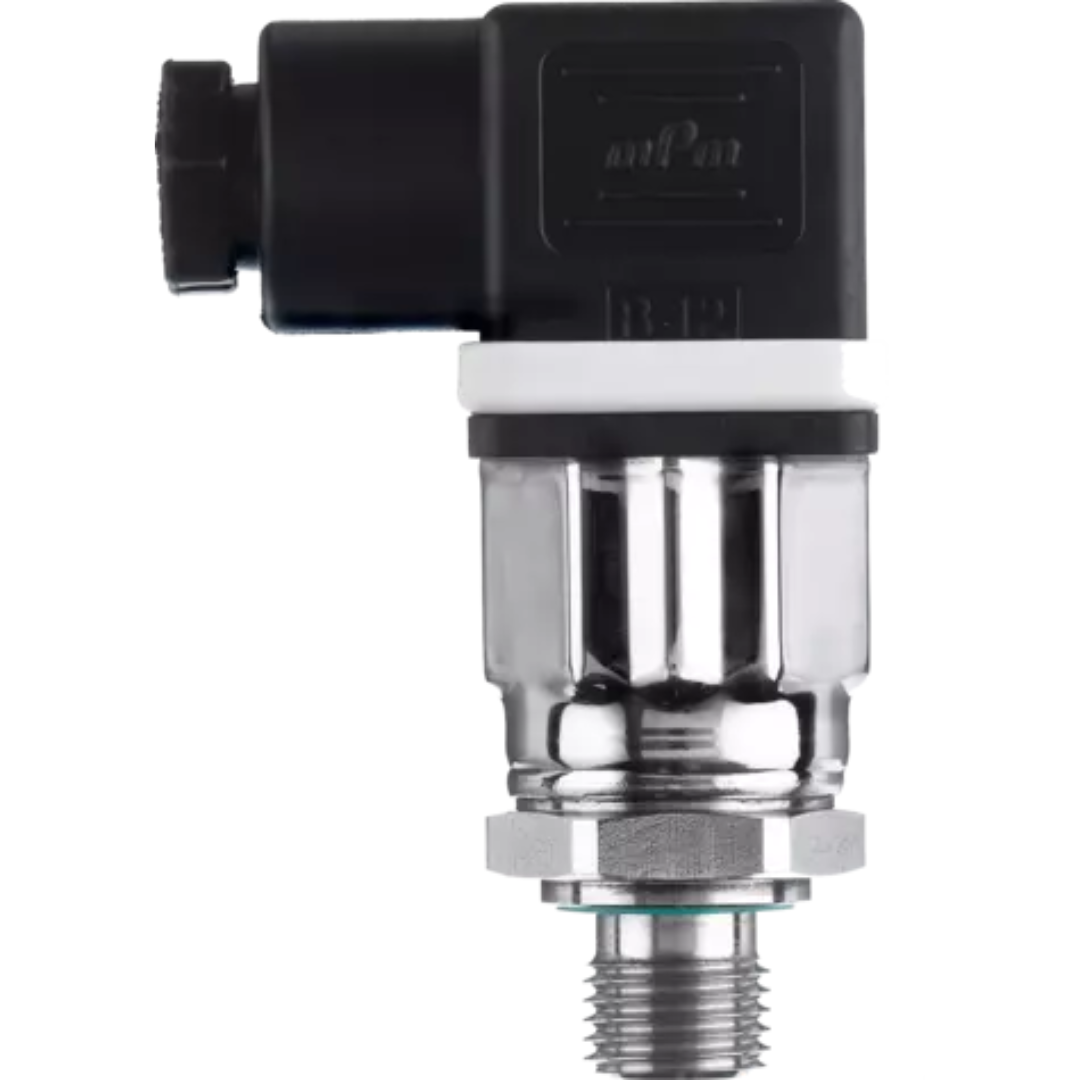

JUMO MIDAS S06

This pressure transmitter is completely welded and designed for use in harsh conditions. It can also be used for level measurement. The applied silicon sensor is extremely resilient.

Categories: Level, Pressure, Transmitters, Transmitters

Technical data
Downloads

Technical data

general technical data
Input	-400 to +400 mbar relative pressure
Output	4 to 20 mA two-wire; DC 0 to 10 V three-wire
Accuracy (linearity)	0.3 to 0.35 %
Medium temperature	-20 to +100 °C
Process connection	All screw connections that are standard in the industry
Measuring system	Silicon sensor with stainless steel separating membrane (piezoresistive)

general technical data

Input

-400 to +400 mbar relative pressure

Output

4 to 20 mA two-wire; DC 0 to 10 V three-wire

Accuracy (linearity)

0.3 to 0.35 %

Medium temperature

-20 to +100 °C

Process connection

All screw connections that are standard in the industry
