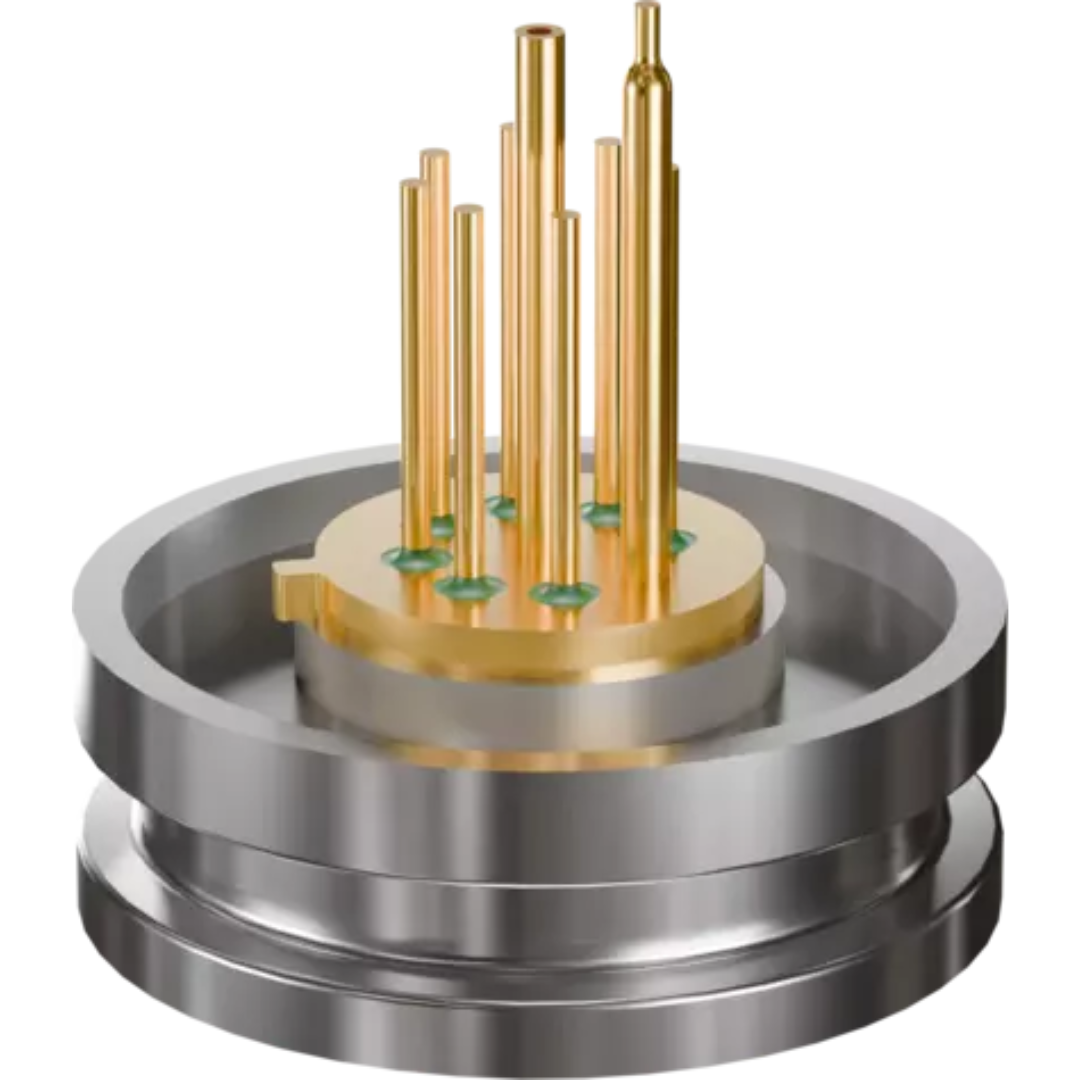

JUMO CEROS S15 B
The pressure measuring cell measures the absolute or relative pressure of liquid, steam, and gaseous media. It is used as a module for the production of pressure transmitters that are suitable for mounting in pipes and containers. Customized process connections are available.
Technical data
| general technical data | |
|---|---|
| Measuring range | As of 100 mbar to 100 bar |
| Operating temperature | -40 to +125 °C |
| Long-term stability | < 0.2 % MSP |
| Signal output | mV/V |
| Vibration resistance | 20 g for 5 to 2000 Hz |
| Filling oil | Silicon oil (FDA compliant) |
