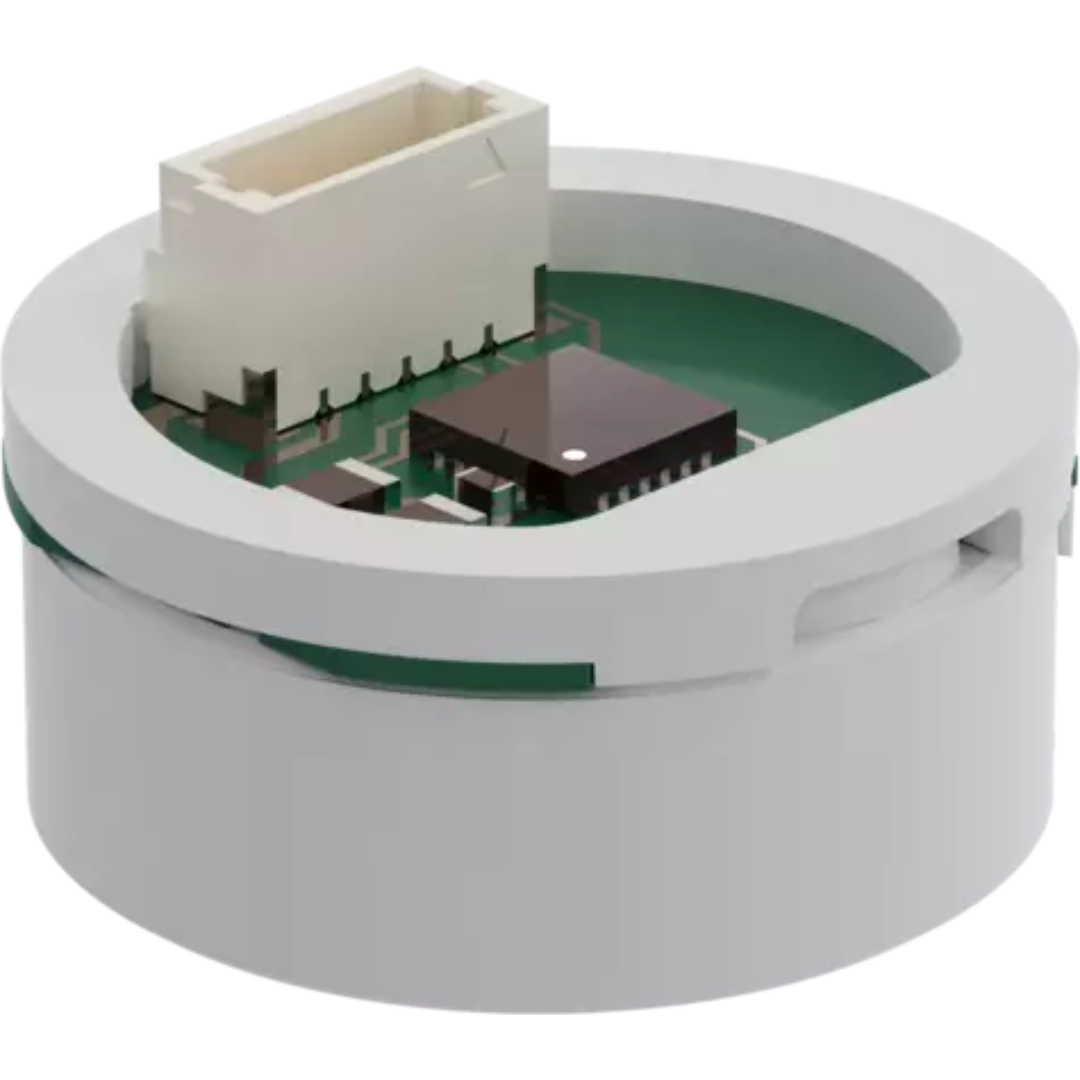

JUMO CEROS C02 M
You can rely on the digital pressure measuring cell for relative pressure due to high degree of measuring accuracy and long-term stability. In addition, it is characterized by low energy requirements and can therefore be operated with battery voltage. The active module is ready for immediate use and saves expensive calibration systems due to prior calibration and temperature compensation by JUMO.
Customer benefits at a glance
High accuracy and long-term stability
Active module, ready for immediate use, versions suitable for PCB direct mounting
Simple zero point correction and configuration via setup program
Technical data
| general technical data | |
|---|---|
| Sensor | Thick film ceramic sensor |
| Measuring principle | Relative pressure measurement |
| Measuring range | 100 mbar to 60 bar relative |
| Input voltage | 3.3 V |
| Output | I²C protocol |
| Signal resolution | 16 bit |
| Current consumption | < 1 mA (operating mode), < 50 nA (sleep mode) |
| Response time T90 | < 3 ms |
| Accuracy | < 0.4 % |
| Linearity | < 0.2 % |
| Temperature range | -40 to +120 °C |
| Housing material | Ceramic (Al₂O₃) |
| Features | Vibration and shock-resistant |
| Special features | Battery operation possible, fully calibrated and temperature compensated signal, subsequent zero point adjustment possible via setup program, customized solutions possible |
