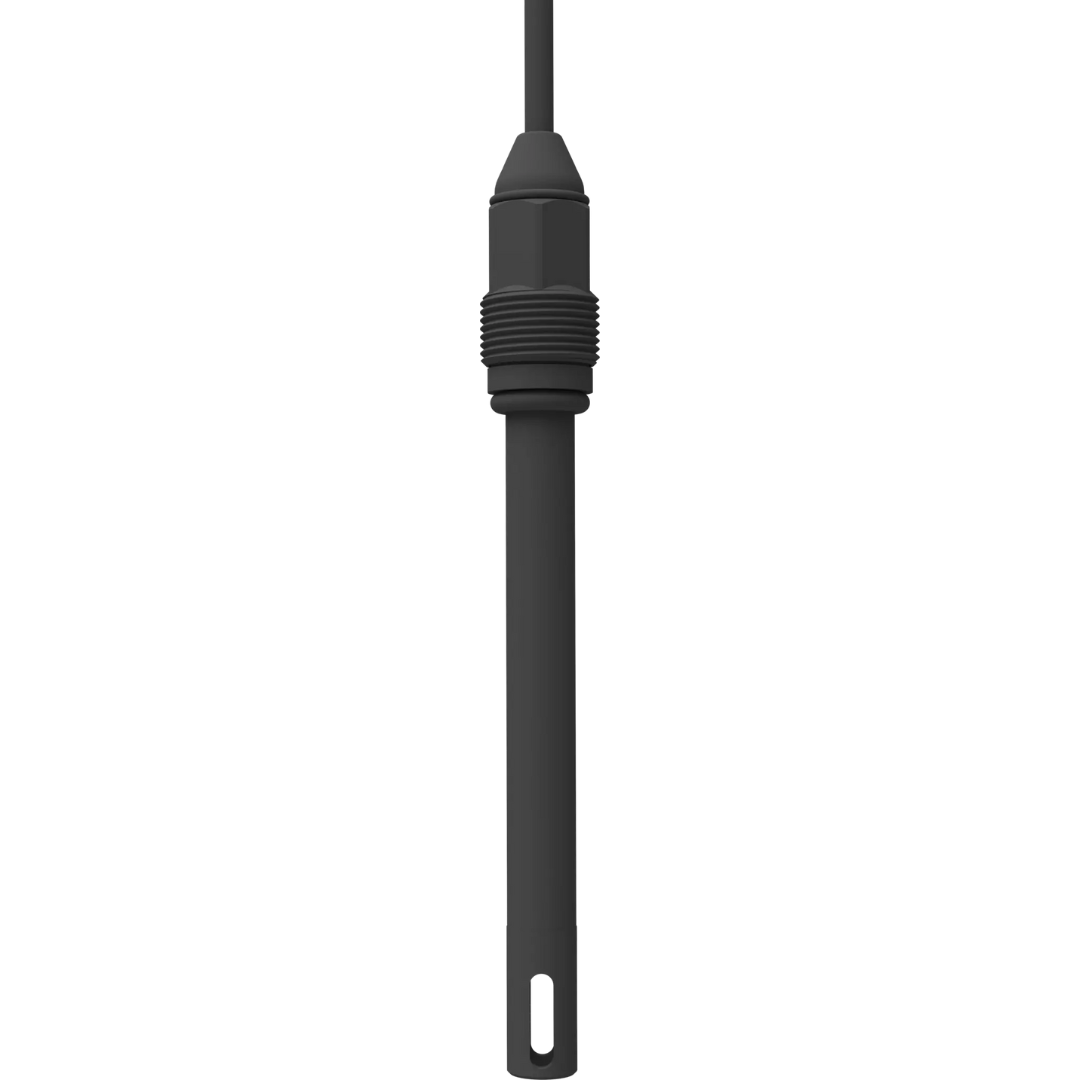

JUMO BlackLine CR 4P

The conductivity sensor has 4 electrodes made of robust special graphite and is characterized by a wide measuring range. It is therefore predestined for determining the conductivity of high salt concentrations. This is why it can be used in salt and sea water applications, among others.

Categories: Electrodes/sensors, JUMO

Technical data
Downloads

Technical data

General technical data
Measuring cell	4 pole
Measuring range	1 μS/cm to 300 mS/cm
Cell constant	K = 0.25
Operating temperature	-5 to +80 °C
Maximum pressure	6 bar at 25 °C
Temperature measurement	Pt100 or Pt1000, class B
Electrical connection	Fixed cable or M12 connector (digiLine capable)
Insertion length	120 mm
Diameter	12 mm
Materials in contact with the medium	Cell housing: PPE; Electrode: graphite
Process connection	Screw head Pg13.5
Application areas	Salt water and sea water applications; slightly contaminated rinsing and purification baths; fertilizer solutions; drinking and well water; general water technology

General technical data

Measuring cell

4 pole

Measuring range

1 μS/cm to 300 mS/cm

Cell constant

K = 0.25

Operating temperature

-5 to +80 °C

Maximum pressure

6 bar at 25 °C

Temperature measurement

Pt100 or Pt1000, class B

Electrical connection

Fixed cable or M12 connector (digiLine capable)

Insertion length

120 mm

Diameter

12 mm

Materials in contact with the medium

Cell housing: PPE; Electrode: graphite

Process connection

Screw head Pg13.5

Application areas

Salt water and sea water applications; slightly contaminated rinsing and purification baths; fertilizer solutions; drinking and well water; general water technology
