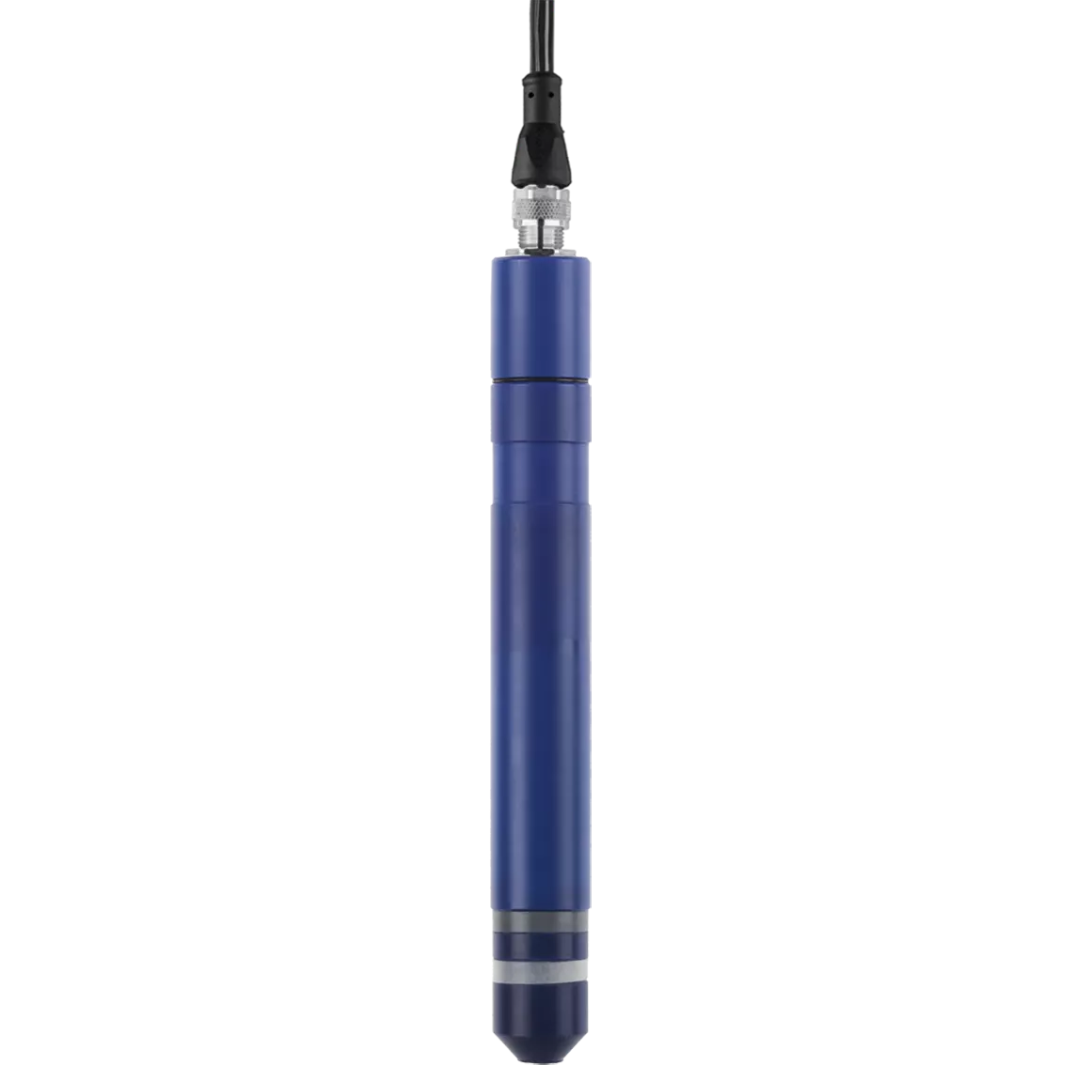

JUMO tecLine ClO2 and O3

These membrane-covered amperometric sensors measure the concentration of chlorine dioxide or ozone in aqueous solutions (e.g. drinking water, swimming pool water, service water, process water, and cooling water). The sensors can be connected directly to a suitable indicating or control device.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	Chlorine dioxide: max. 0.05 to 10 mg/l (analog); max. 0.05 to 20 mg/l (digital); ozone: max. 0.05 to 20 mg/l (analog); max. 0.05 to 10 mg/l (digital)
Measuring principle	Membrane-covered, amperometric two-electrode system with integrated electronic components
Inflow speed	Approx. 15 cm/s
Response time t90	Approx. 15 s
Operating temperature	0 to 45 °C
Settling time	Chlorine dioxide: approx. 1 hr for initial startup; ozone: approx. 2 hrs for initial startup
pH value area of application	Chlorine dioxide: pH 1 to pH 11; ozone: pH 2 to pH 11
Application areas	Drinking water, swimming pool water, service water, and process water
