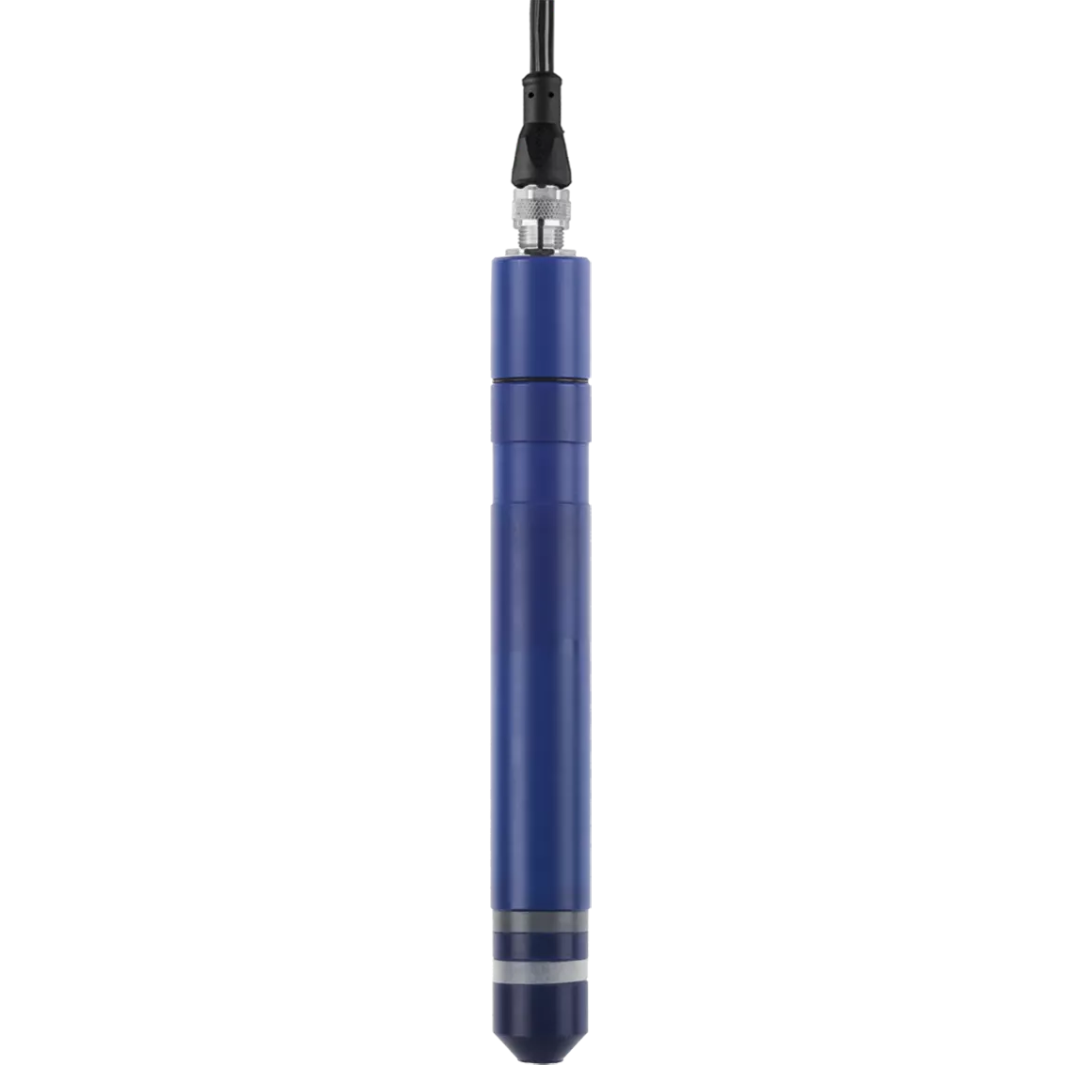

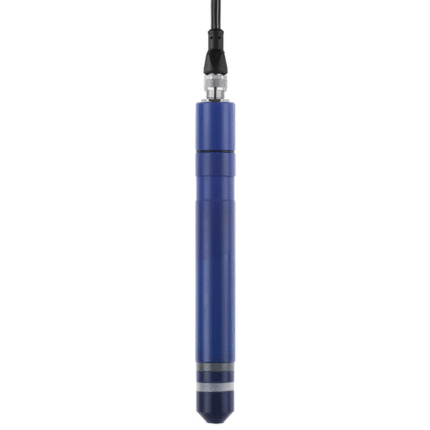

JUMO tecLine TC

This membrane-covered, amperometric sensor measures the total chlorine concentration in water and acquires “free chlorine” from inorganic chlorination products (chlorine gas, hypochlorite, etc.) and “combined chlorine” (e.g. chloramine). It can only be used in water of drinking or swimming pool water quality.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range	Max. 0.05 to 20 mg/l (analog and digital)
Measuring principle	Membrane-covered, amperometric two-electrode system with integrated electronic components
Inflow speed	Approx. 15 cm/s
Response time t90	Approx. 2 minutes
Operating temperature	Measuring water: 0 to 45 °C; surroundings 0 to 55 °C
Settling time	Approx. 2 hrs for initial startup
Suitable chlorination agents	Inorganic chlorine compounds: NaOCl (sodium hypochlorite), Ca(OCl)2, chlorine gas, chlorine produced by membrane electrolysis (not suitable: chlorine electrolysis without a membrane)
pH value area of application	pH 4 to pH 12, extremely reduced pH dependence
Application areas	Drinking water, swimming pool water, service water

General technical data

Measuring range

Max. 0.05 to 20 mg/l (analog and digital)

Measuring principle

Membrane-covered, amperometric two-electrode system with integrated electronic components

Inflow speed

Approx. 15 cm/s

Response time t90

Approx. 2 minutes

Operating temperature

Measuring water: 0 to 45 °C; surroundings 0 to 55 °C

Settling time

Approx. 2 hrs for initial startup

Suitable chlorination agents

Inorganic chlorine compounds: NaOCl (sodium hypochlorite), Ca(OCl)2, chlorine gas, chlorine produced by membrane electrolysis (not suitable: chlorine electrolysis without a membrane)

pH value area of application

pH 4 to pH 12, extremely reduced pH dependence

Application areas

Drinking water, swimming pool water, service water
