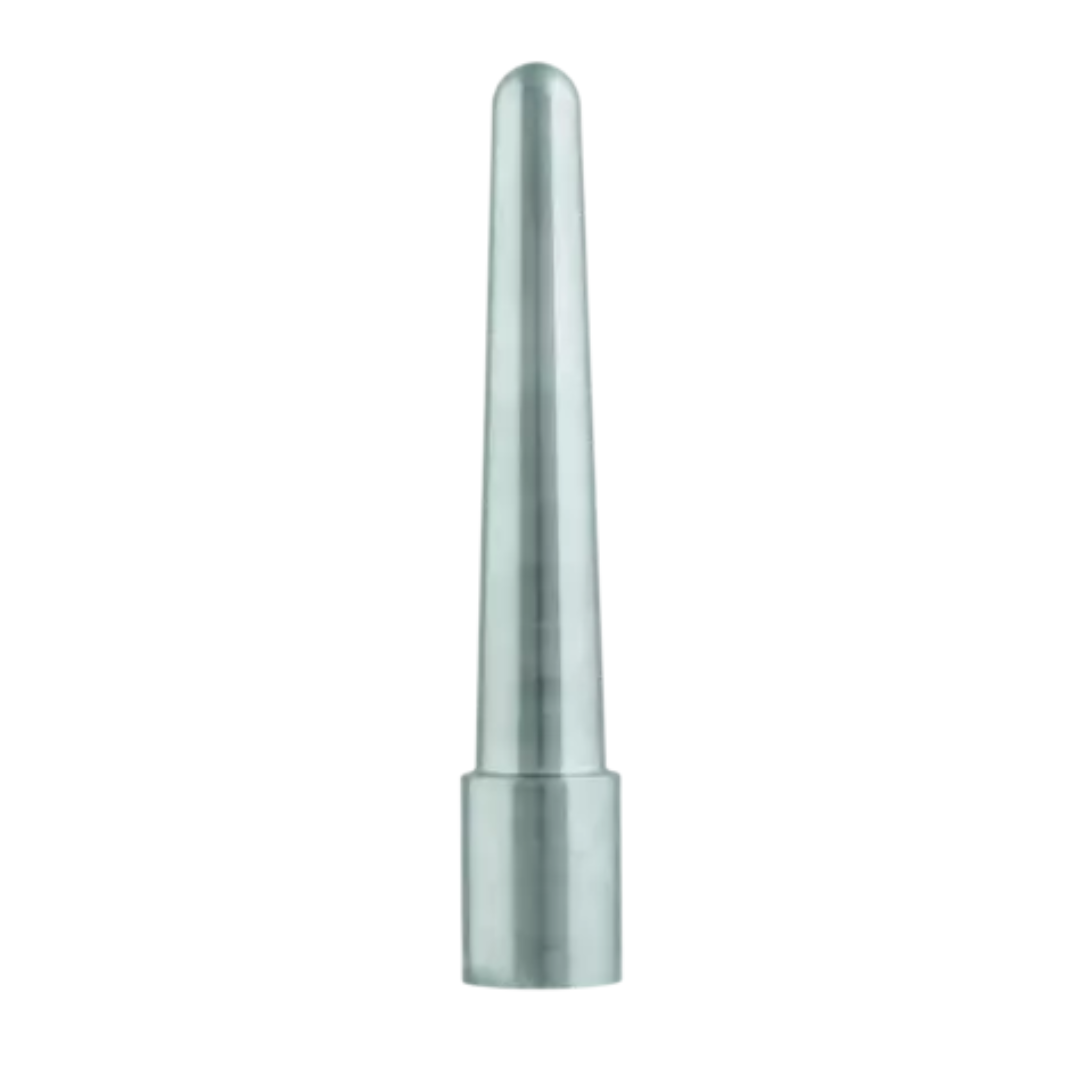

Welding protective sleeves
Welding protective sleeves are used for installing thermocouples and RTD temperature probes when replacement without draining the system and/or pressure resistance is required Pressure stability is temperature dependent and specified in the data sheet.
Technical data
| general technical data | |
|---|---|
| Process connection | Weld-in sleeve ∅ 24h7, ∅ 30h11 |
| Operating temperature range | Up to 450 °C, observe the load capacity diagrams! |
| Features | For thermocouples and RTD temperature probes, thermometers can be replaced without draining the system, thermowells made out of various materials, operating pressure up to 450 bar |
| Special features | Available with inspection certificate 3.1 |
| Protection tube | Steel 1.0305, stainless steel 1.4571, steel 1.7335 |
| Option | Other protection tube materials |
