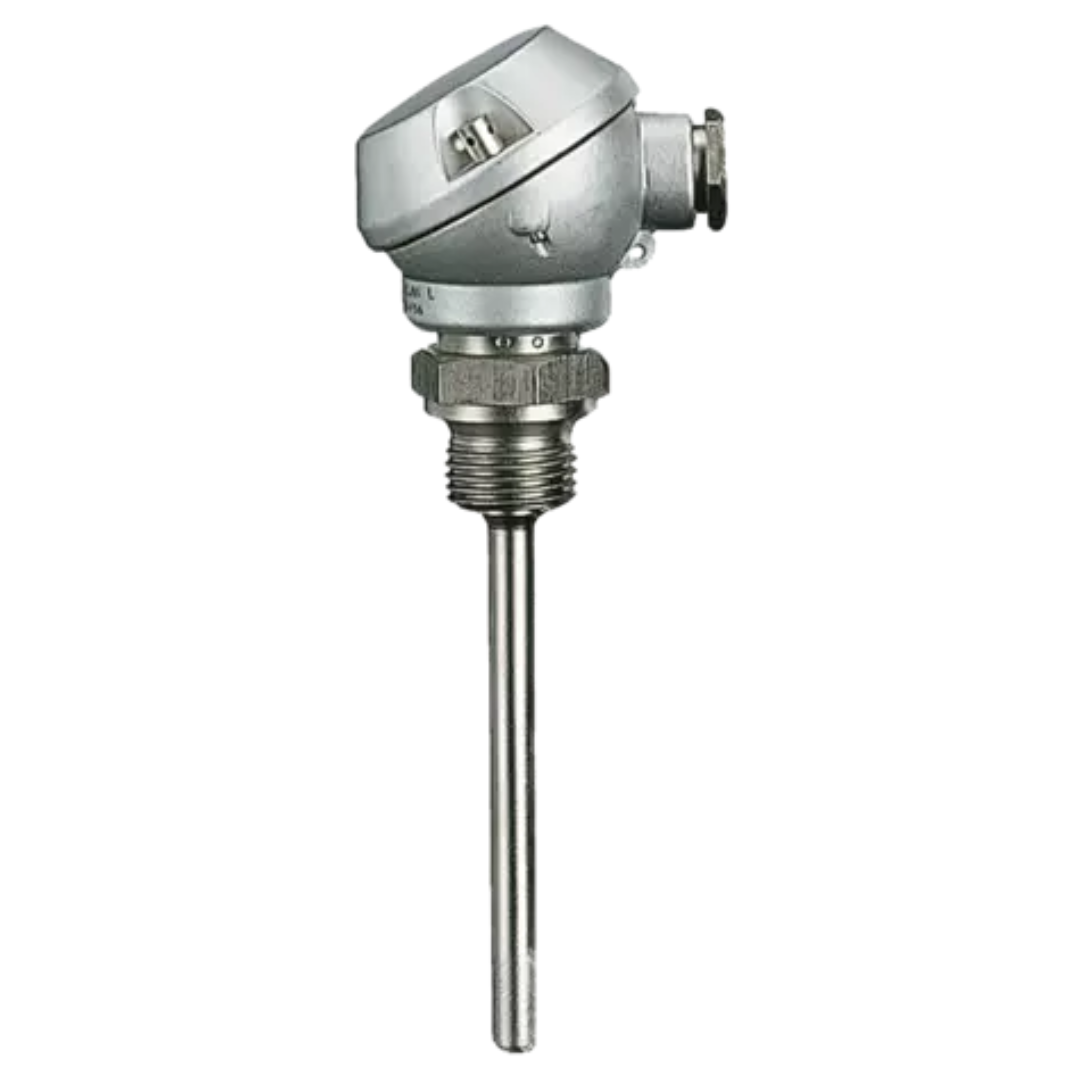

Screw-in thermocouples
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Their installation type enables the formation of reliable seals, both for vacuum and overpressure applications.
Technical data
| general technical data | |
|---|---|
| Process connection | Thread |
| Measuring circuits | 1/2 |
| Protection type | IP65 |
| Protection fitting | Stainless steel 1.4571 |
| Operating temperature | -200 to +800 °C |
| Special features | Union nut; complies with specification according to AMS 2750 E and CQI-9 |
| Areas of application | Solid fuel boiler, plastics industry |
| Thermocouples | J, L, K |
| Connection | Head |
| Approvals | Metrological registration; SIL |
| Process connection | Screw connection G 1/4, screw connection G 3/8, screw connection G 1/2, union nut G 1/2; union nut G 3/4 |
