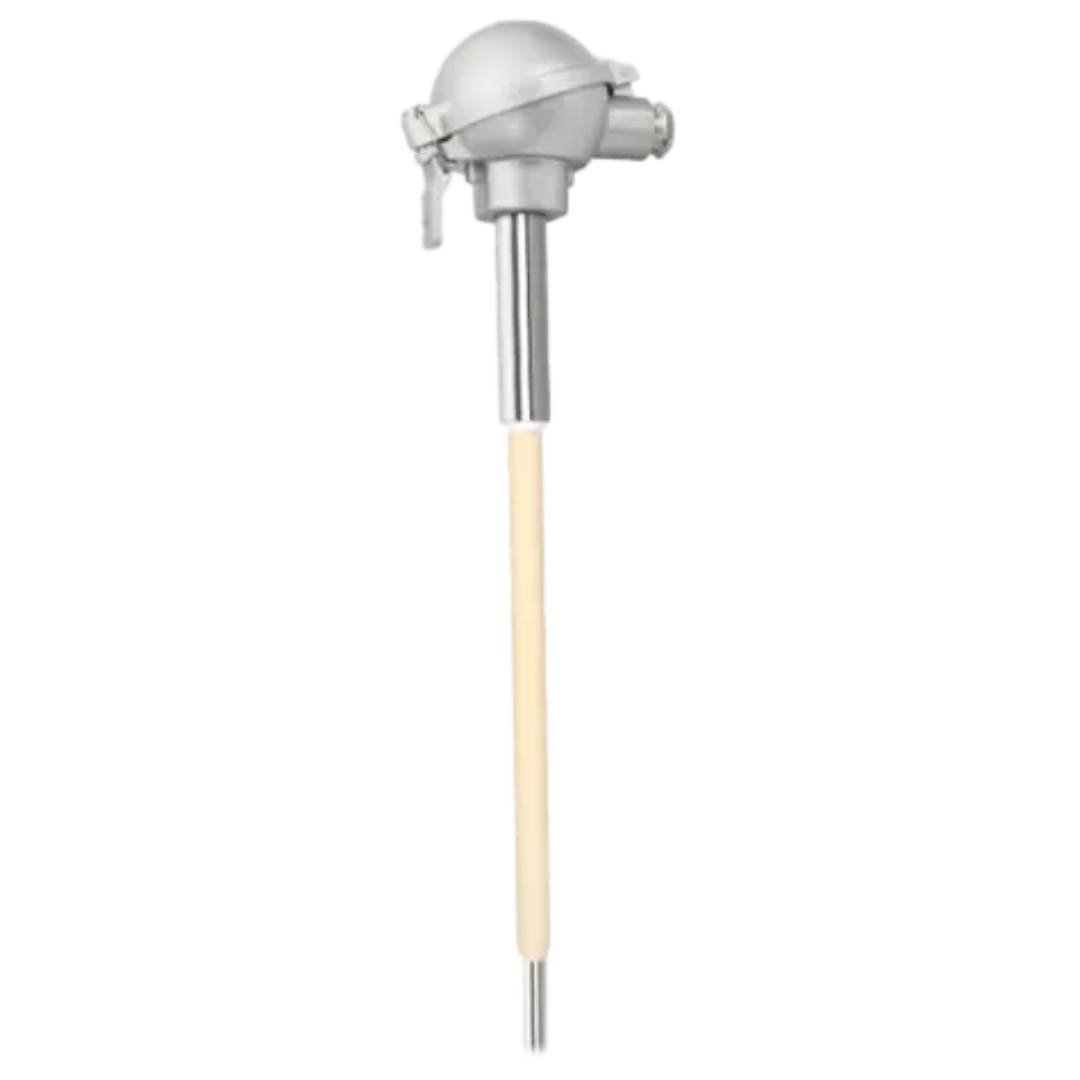

Push-in thermocouples
Push-in thermocouples for glass melting furnaces, withstand up to 2000 °C. Designed for extreme conditions, they ensure optimum thermal insulation and reduce thermal losses. They comply with ISO standards for high accuracy and quality in corrosive atmospheres.
Technical data
| general technical data | |
|---|---|
| Type of protection | IP54 |
| Process connection | Flange |
| Connection | Head |
| Protection fitting | Steel 1.4749 / 1.4841, Ceramic C 610 / C 799 |
| Operating temperature | 0 to 2000 °C |
| Option | Possibility to include integrated converters and protective tubes with platinum or platinum-rhodium plating. |
| Areas of application | Glass furnaces where extreme conditions with corrosive atmosphere and high temperature prevail. |
| Special features | Equipped for extreme conditions and achieves optimum thermal insulation to reduce heat losses and to protect the material. |
| Approvals | ISO Standards |
| Connection heads | Form A, BUZ, BUZH, BUS, BUSH, DANAwin, DAND |
| Thermocouples | K, S, R, B |
Downloads
Data Sheet
Data Sheet
Declaration of Conformity / White Paper
Declaration of Conformity / White Paper
Order details
