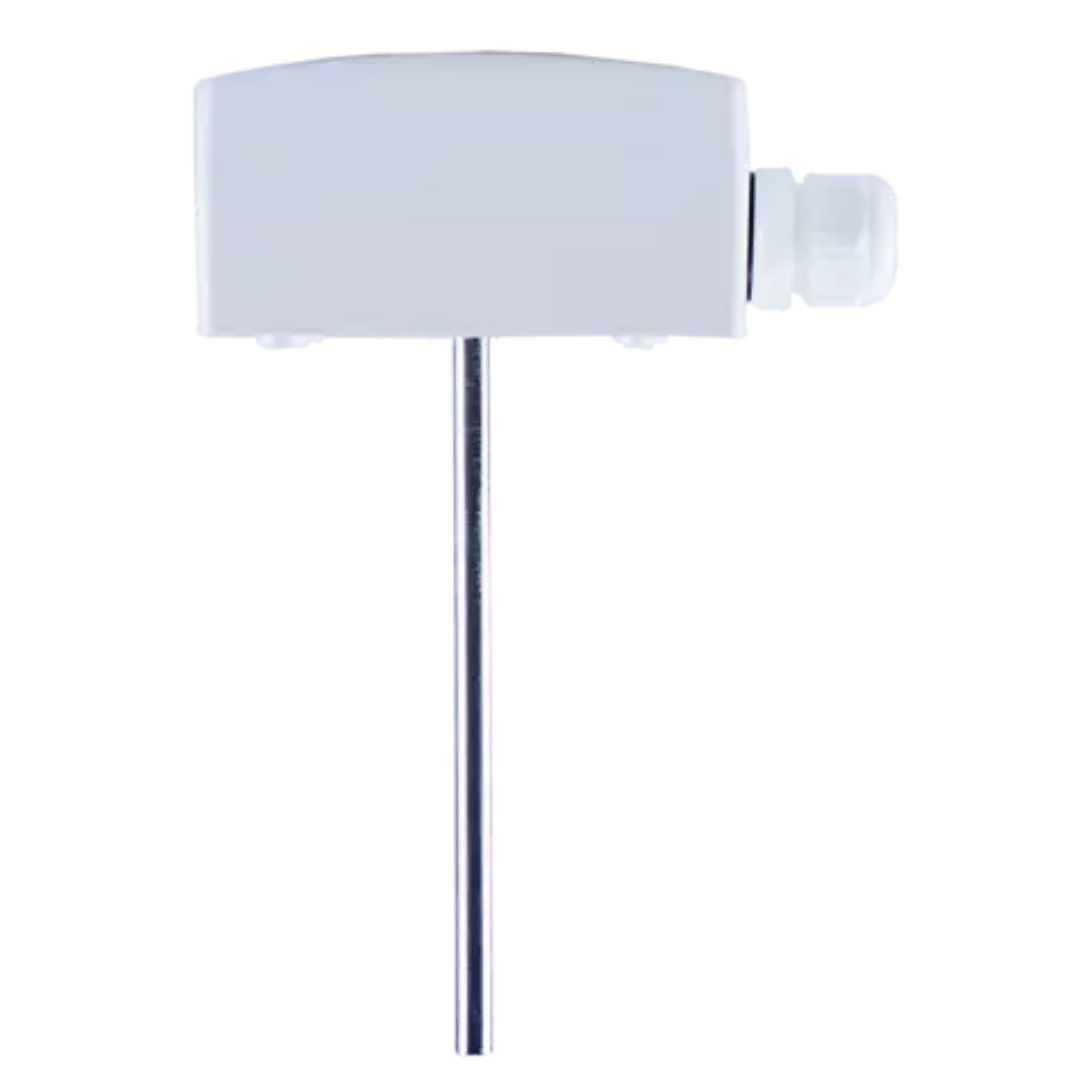

RTD temperature probes
Channel RTD temperature probes for air conditioning technology are predominantly used for temperature measurement in air channels and outdoors. Various device versions made of plastic with different protection types are available for the respective measuring task.
Technical data
| general technical data | |
|---|---|
| Sensor | Pt100, Pt1000, Ni1001, KTY 81-110, LM235, NTC 1 kOhm |
| Areas of application | Facility management, air heaters |
| Protection type | IP65 |
| Operating temperature | -50 to +200 °C |
| Measuring circuits | 1/2 |
| Protection fitting | Stainless steel |
| Process connection | Sheet flange, pipe screw connection G 1/4, 3/8, 1/2, M20 × 1.5, 1/2-14 NPT |
| Features | Channel mounting |
| Approvals | SIL, PL |
| Option | Head transmitter |
| Connection | Terminal case |
