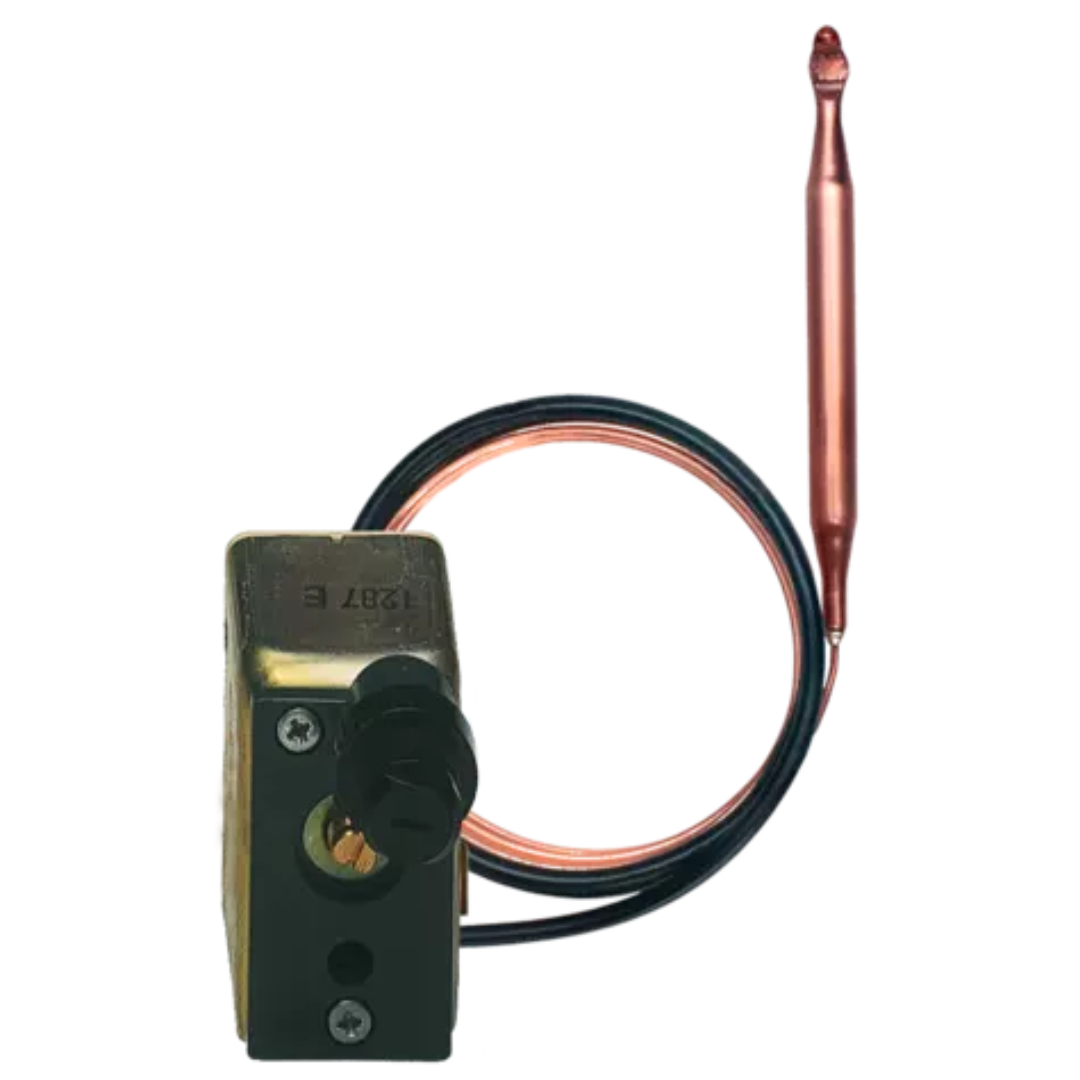

Panel-mounted thermostat

The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.

Categories: Monitors & limiters, Temperature, Thermostats

Technical data
Downloads

Technical data

general technical data
Versions	Safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity	230 V, 16A; 400 V, 10A
Switching elements	Single-pole snap-action switch
Maximum control range/limit value	500 °C
Areas of application	Heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering
Approvals	DIN, UL, PED, DVGW
Features	Batch size according to customer specification

general technical data

Versions

Safety temperature monitor (STW), safety temperature limiter (STB)

Switching capacity

230 V, 16A; 400 V, 10A

Switching elements

Single-pole snap-action switch

Maximum control range/limit value

500 °C

Areas of application

Heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering

Approvals
