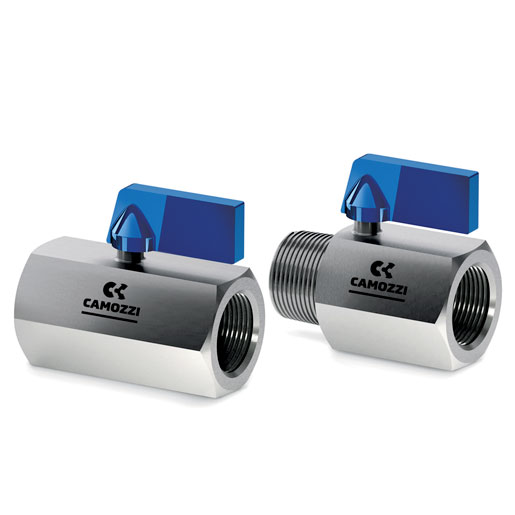

Mini ball valves in 316 stainless steel Series X29
These mini ball valves are used to open or close air or fluid flows in industrial applications with aggressive fluids or gases and where space is extremely limited.
The miniaturised dimensions and light weight of Series X29 enable an easy installation at any point of the system, also thanks to the threaded connection.
General Data
| Function | 2/2-way |
| Operation | 90° lever rotation |
| Threads | G1/4, G3/8, G1/2, R1/4, R3/8, R1/2 |
| Orifice diameter | From 7 mm to 9,2 mm |
| Operating pressure | 0 ÷ 10 bar |
| Operating temperature | -15 °C ÷ 80 °C |
| Materials | Valve body, rod, ball: 316 stainless steel; Ball seals: PTFE; Rod sealing ring: FKM, lever: aluminum |
| Medium | Compressed air, inert gases, water, oil and all fluids compatible with thew mini ball valves component materials |
