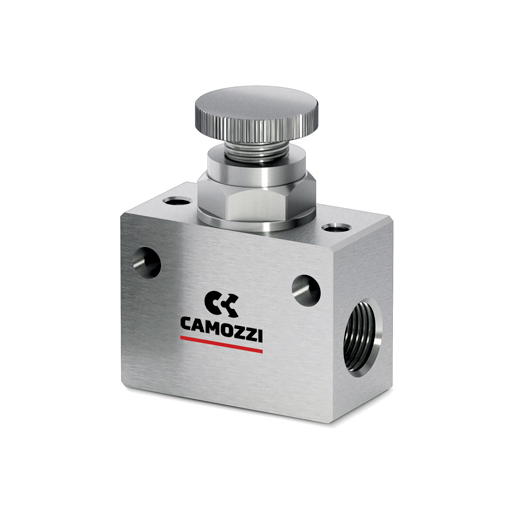

Flow control valves in 316L stainless steel Series XRFU and XRFO
The unidirectional and bidirectional flow controllers are equipped with G1/8, G1/4, G3/8 and G1/2 ports. All models can be used in environments with aggressive fluids or gases.
General Data
| Construction | Needle-type |
| Valve group | Unidirectional and bidirectional controller |
| Materials | Body in 316L stainless steel, FKM seals |
| Mounting | With screws in the holes of the valve body or panel mounted |
| Threads | G1/8, G1/4, G3/8, G1/2 1/8 NPT, 1/4 NPT, 3/8 NPT, 1/2 NPT |
| Installation | In any position |
| Working temperature | -15°C +120°C |
| Working pressure | – 0,5 ÷ 16 bar (unidirectional regulator) 0 ÷ 40 bar (bidirectional regulator) |
| Nominal pressure | 6 bar |
| Nominal diameter Ø [mm] | G1/8 = 6 – G1/4 = 6 – G3/8 = 9 – G1/2 = 10 – PT1/8 = 6 – PT1/4 = 6 – PT3/8 = 9 – PT1/2 = 10 |
| Medium | Filtered air without lubrication with unidirectional and bidirectional flow control valves all fluids compatible with the materials of the bidirectional flow control valves |
Coding Example
| X | RF | U | 1/8 | PT |
| X | = INOX |
| RF | SERIES |
| U | FUNCTION U = Unidirectional O = Bidirectional |
| 1/8 | PORTS 1/8 1/4 3/8 1/2 |
| PT | PORTS = Gas PT = NPT |
