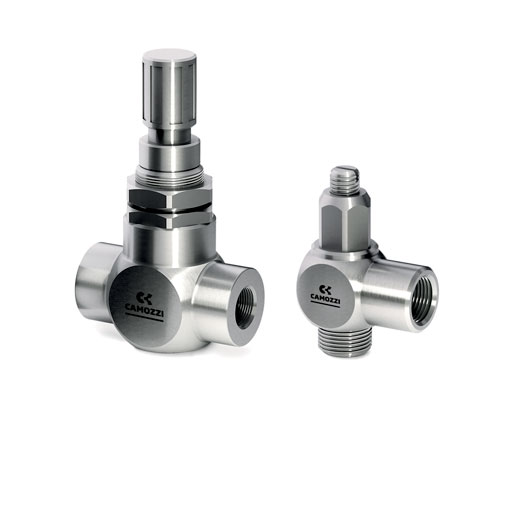

Flow regulators in 316L stainless steel Series XSCU, XSCO, XMFU and XMFO
These unidirectional and bidirectional flow regulators have a compact design that allows mounting directly on valves or cylinders in environments with aggressive fluids or gases.
General Data
| Construction | Needle type |
| Valve group | Unidirectional and bidirectional controller |
| Materials | Body and regulation screw: 316L stainless steel FKM seals |
| Mounting | By male/female thread |
| Threads | G1/8, G1/4, G3/8, G1/2 |
| Installation | In any position |
| Working temperature | -10°C ÷ +120°C |
| Operating pressure | 1 ÷ 10 bar (unidirectional regulator) 0 ÷ 10 bar (bidirectional regulator Series XMFO) 0 ÷ 8 bar (bidirectional regulator Series XSCO) |
| Nominal pressure | 6 bar |
| Nominal diameter Ø [mm] | XSCU, XSCO: G1/8 = 4,5 – G1/4 = 6 – G3/8 = 8 – G1/2 = 12 XMFU, XMFO: G1/8 = 7,2 – G1/4 = 7,2 – G3/8 = 12 – G1/2 = 12 |
| Medium | Filtered air without lubrication with the unidirectional and bidirectional flow regulators all fluids compatible with the materials of the bidirectional flow regulators |
Coding Example
| X | M | CU | M5 |
| X | = INOX |
| M | ACTUATION M = Manual S = Screwdriver |
| CU | ASSEMBLY CU = On cylinders unidirectional CO = Bidirectional FU = Unidirectional FO = Bidirectional |
| M5 | PORTS 1/8 = G1/8 1/4 = G1/4 3/8 = G3/8 1/2 = G1/2 |
To ensure the right choice of unidirectional flow controller, proceed as follows: calculate the quantity of air in Nl/min (see cylinder Table); determine the stroke time of the cylinder; refer to graph to see which controller is the right type.
