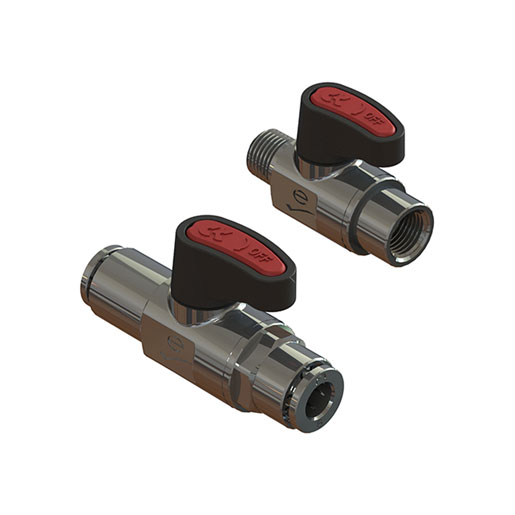

Mini ball valves for Pneumatics and industrial fluids Series 29
Tube external diameters: 4, 6 and 8mm
Threads: BSP (G1/8, G1/4, G3/8, G1/2, R1/8, R1/4)
Threads: BSP (G1/8, G1/4, G3/8, G1/2, R1/8, R1/4)
The mini ball valves are used to open or close air or fluids in industrial applications characterised by extremely reduced spaces.
The miniaturised dimensions and light weight of Series 29 enable a quick installation at any point of the system, also thanks to the push-in connection or thread.
The design and materials used make this series particularly suitable for compressed air systems as well as hydraulic circuits and systems.
General Data
| Function | 2/2-way, 3/2-way with exhaust |
| Operation | 90° lever rotation |
| Ports | G1/8, G1/4, G3/8, G1/2, R1/8, R1/4 |
| Tube diameter | Ø 4, 6, 8 mm |
| Orifice diameter | 6 mm (MINI version) 8 mm bis 10 mm (ECO, butterfly and 3/2-way with exhaust) |
| Operating pressure | Push-in: -0,9 ÷ 16 bar Modelli filettati: -0,9 ÷ 20 bar |
| Operating temperature | Push-in: -20°C ÷ 80°C Modelli filettati: -20°C ÷ 80°C |
| Materials | Valve body, rod, collet: brass; ball: nickel plated brass; ball seals: PTFE rod sealing ring: FKM; Lever: Glass charged PA66 |
| Surface finishing | Chrome plated, sandblasted and chrome plated (only butterfly version) |
| Medium | Compressed air, inert gases, water, oil – other on demand |
