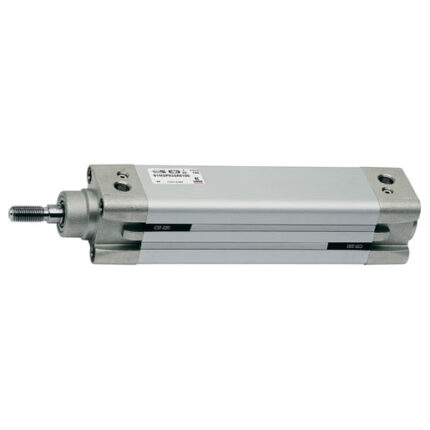

Cylinders aluminium profile Series 41K
Double-acting, cushioned, magnetic Ø 160 – 200 mm
Series 41K cylinder comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
The mounting brackets used on the end-blocks tube are designed in an extremely secure way, making use of cylinder tie-rods positioned internally and not visible on the assembled cylinder.
This cylinder series is normally equipped with adjustable endstroke cushioning by means of a screw positioned on the end-block.
General Data
| Type of construction | Profile (with tie-rods) |
| Operation | Double-acting |
| Design | ISO 15552 |
| Materials | AL end blocks and piston – rolled AISI 420B stainless steel piston rod – zinc-plated steel piston rod nut – anodized AL-profile tube zinc-plated steel tie-rods and tie-rod nuts – NBR-PU rod – piston – cushion seals – brass rod scraper |
| Mounting | With front flange – rear flange – foot mounts – centre trunnion – front and rear trunnion |
| Strokes min – max | 10 ÷ 2500 mm |
| Working temperature | 0°C ÷ 80°C (with dry air – 20°C) |
| Working pressure | 1 ÷ 10 bar |
| Speed | 10 ÷ 500 mm/sec (without load) |
| Fluid | Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
Coding Example
| 41 | K | 2 | P | 160 | A | 0200 |
| 41 | SERIES | |
| K | VERSION K = Standard magnetic | |
| 2 | OPERATION 2 = Double-acting, front and rear cushions 3 = Double-acting, no cushion 4 = Double-acting, rear cushions 5 = Double-acting, front cushion 6 = Double-acting, through-rod, front and rear cushions 8 = Double-acting, through-rod, no cushion | PNEUMATIC SYMBOLS CD09 CD07 CD37 CD38 CD13 CD14 |
| P | MATERIALS P = See the General Data table on the previous page R = AISI 420B stainless steel tie-rods, AISI 303 stainless steel tie-rod nuts C = Rolled AISI 303 stainless steel piston rod, AISI 304 stainless steel piston rod nut U = Rolled stainless steel AISI 303 piston rod, AISI 304 stainless steel piston rod nut, stainless steel AISI 420B tie-rods, stainless steel AISI 303 tie-rod nuts, AISI 420B stainless steel tie-rods, AISI 303 stainless steel tie-rod nuts W = Rolled AISI 304 stainless steel piston rod, AISI 304 stainless steel piston rod nut, AISI 420B stainless steel tie-rods, AISI 303 stainless steel tie-rod nuts | |
| 160 | BORE 160 = 160 mm 200 = 200 mm | |
| A | TYPE OF DESIGN A = Standard F = Cylinder with centre trunnion | |
| 0200 | STROKE | |
| = Standard V = FKM rod seal W = All seals in FKM +130°C C = PU coated cylinder. Colour: Grey G = with brass rod scraper (chrome plated AISI 420B stainless steel rod, NBR rod seal) ( _ _ _ ) = Extended piston rod _ _ _ mm* Version C is available on request. For further information, please contact our technical dept. | ||
| CERTIFICATIONS EX = ATEX |
