Flow control valves Series CLFB, CLFC

Unidirectional and bidirectional flow regulators with in technopolymer (G1/8, G1/4, G3/8)

Ports: M5, G1/8, G1/4, G3/8

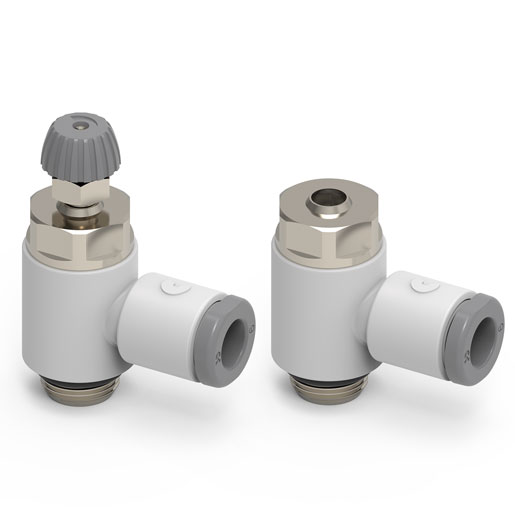

These unidirectional and bidirectional flow control valves are designed to be directly mounted on valves or cylinders with only a small footprint.

The wide range of swivel fittings allows to complete the flow control valve with the most suitable configuration based on the type of tube used.

All models are supplied with a swivel fitting.

General Data

Type of regulator	Needle type
Valve group	Unidirectional and bidirectional controller
Materials	Body, regulation screw: stainless steel (M5), brass (G1/8 – G1/4 – G3/8) GRIPfit cartridge = technopolymer and stainless steel Banjo: brass (M5), technopolymer (G1/8 – G1/4 – G3/8) Controller = technopolymer – seals = NBR
Mounting	By male thread
Ports	M5 – G1/8 – G1/4 – G3/8
Installation	In any position
Operating temperature	0°C ÷ 60°C (with dry air -20°C)
Operating pressure	1 ÷ 10 bar
Nominal pressure	6 bar
Nominal flow	See graph
Nominal diameter Ø [mm]	M5 = 1,5 mm – G1/8 = 2 mm – G1/4 = 4 mm – G3/8 = 7 mm
Fluid	Filtered air. If lubricated air is used, it is recommended to use ISOVG32 oil. Once applied the lubrication should never be interrupted.

CL

FB

–

1/8

–

6

–

C

–

G

CL	SERIES CL = Compact Line
FB	FUNCTION FB = Flow regulator, threaded / tube / manual FC = Flow regulator, threaded / tube / screwdriver
1/8	PORTS M5 = M5 1/8 = G1/8 1/4 = G1/4 3/8 = G3/8
6	TUBE 4 = tube Ø 4 6 = tube Ø 6 8 = tube Ø 8 10 = tube Ø 10 12 = tube Ø 12
C	VERSION C = Unidirectional on cylinder V = Unidirectional on valve B = Bidirectional
G	G = Gripfit
