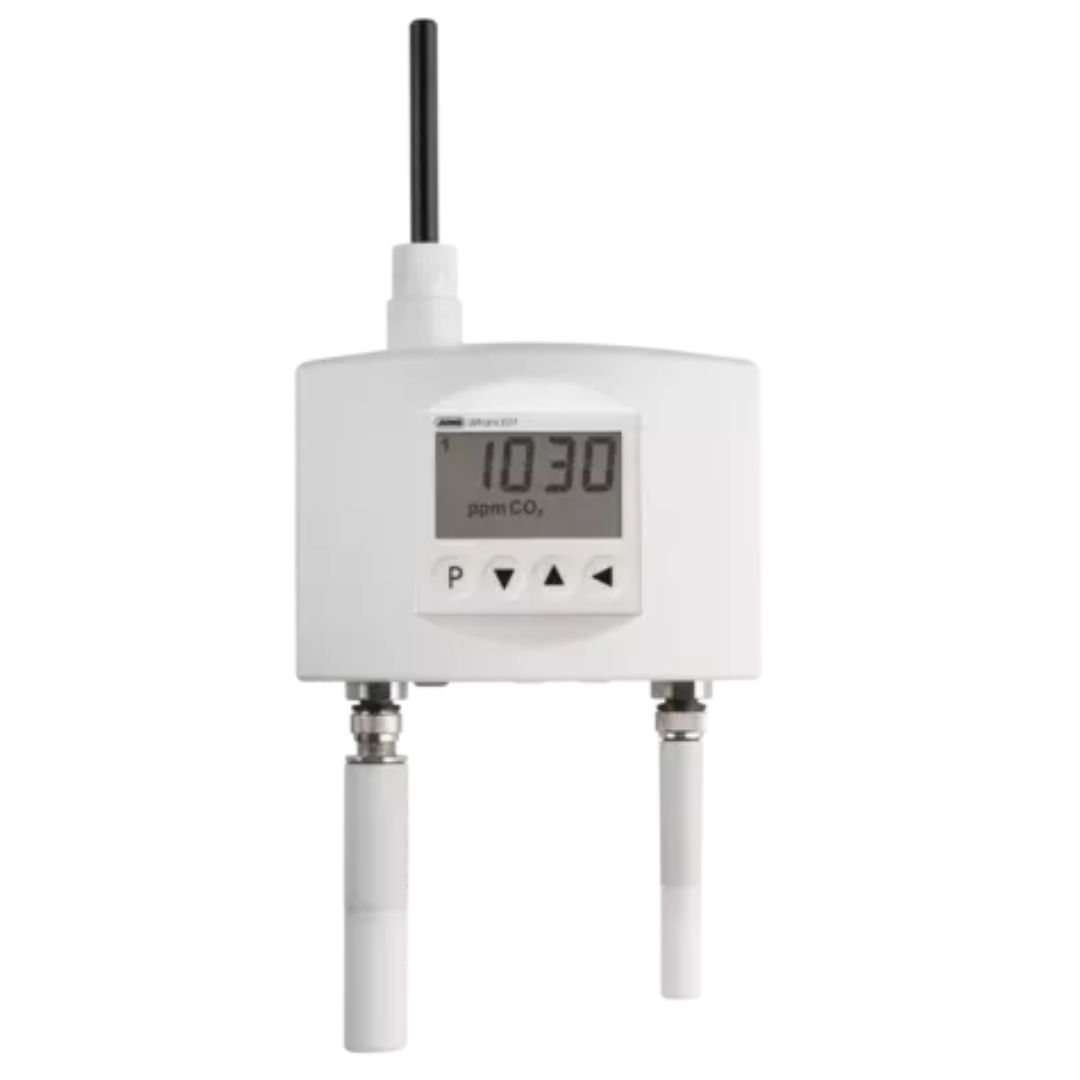

JUMO Wtrans E01

The Wtrans E01 measuring probe is used in combination with a Wtrans receiver for recording measured values using digital sensors for humidity, temperature, and CO2. Other measurands can be derived from the determined measured values.

Categories: Humidity & CO2, Hygro transducers and hygrothermal transducers, Product selector, RTD temperature probes, Temperature

Technical data
Downloads

Technical data

general technical data
Voltage supply	Four AA batteries or 24 V power supply unit
Protection type	IP65
Special features	Radio frequency = 868.4 MHz
Measuring range	RH = 0 to 100 %; T = -40 to +80 °C / -50 to +150 °C; CO2 = 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000 ppm
Response times	Humidity = t0.9: approx. 30 s temperature = t0.63: approx. 240 s CO2 = t0.9: approx. 195 s in water (0.4 m/s): t0.5: approx. 3 s; t0.9: approx. 7 s in air (3 m/s): t0.5: approx. 25 s; t0.9: approx. 80 s
Connection type	Four-wire circuit

general technical data

Voltage supply

Four AA batteries or 24 V power supply unit

Protection type

IP65

Special features

Radio frequency = 868.4 MHz

Measuring range

RH = 0 to 100 %; T = -40 to +80 °C / -50 to +150 °C; CO2 = 0 to 2000 ppm, 0 to 5000 ppm, 0 to 10000 ppm

Response times

Humidity = t0.9: approx. 30 s temperature = t0.63: approx. 240 s CO2 = t0.9: approx. 195 s in water (0.4 m/s): t0.5: approx. 3 s; t0.9: approx. 7 s in air (3 m/s): t0.5: approx. 25 s; t0.9: approx. 80 s

Connection type

Four-wire circuit
