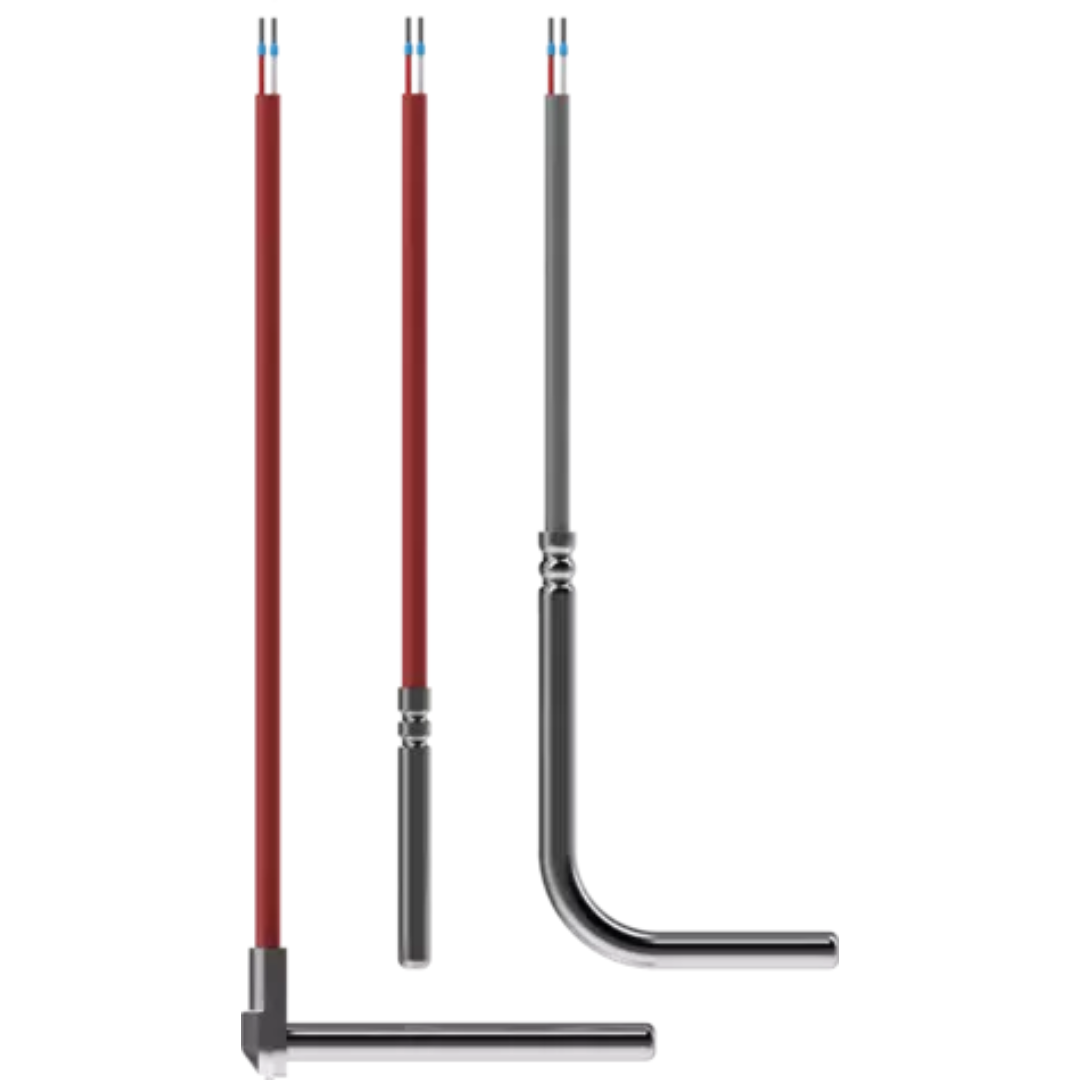

Push-in RTD temperature probe

Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. Application areas include the air-conditioning and refrigeration industry, laboratory technology as well as heating, furnace, and apparatus engineering.

Categories: RTD temperature probes, Temperature

Technical data
Downloads

Technical data

general technical data
Areas of application	Heat pumps, thermostat baths, packing machine industry, heating and drying cabinets, hydraulic systems, solar units, and much more
Special features	Shielded cable, bend protection (optional), straight and angled variants, strain-relieved
Operating temperature	-50 to +400 °C
Measuring circuits	1/2
Sensor	Pt100 or Pt1000
Connection	Cable, connector (optional)
Protection fitting	Stainless steel
Connecting cable	PVC, silicone, PTFE, metal braiding, glass fiber
Accuracy	Tolerance class: class B (standard), class A, class AA
Option	With straight protection tube, with right-angled connection line, with right-angled protection tube

general technical data

Areas of application

Heat pumps, thermostat baths, packing machine industry, heating and drying cabinets, hydraulic systems, solar units, and much more

Special features

Shielded cable, bend protection (optional), straight and angled variants, strain-relieved

Operating temperature

-50 to +400 °C

Measuring circuits

1/2

Sensor

Pt100 or Pt1000

Connection
