JUMO mTRON T

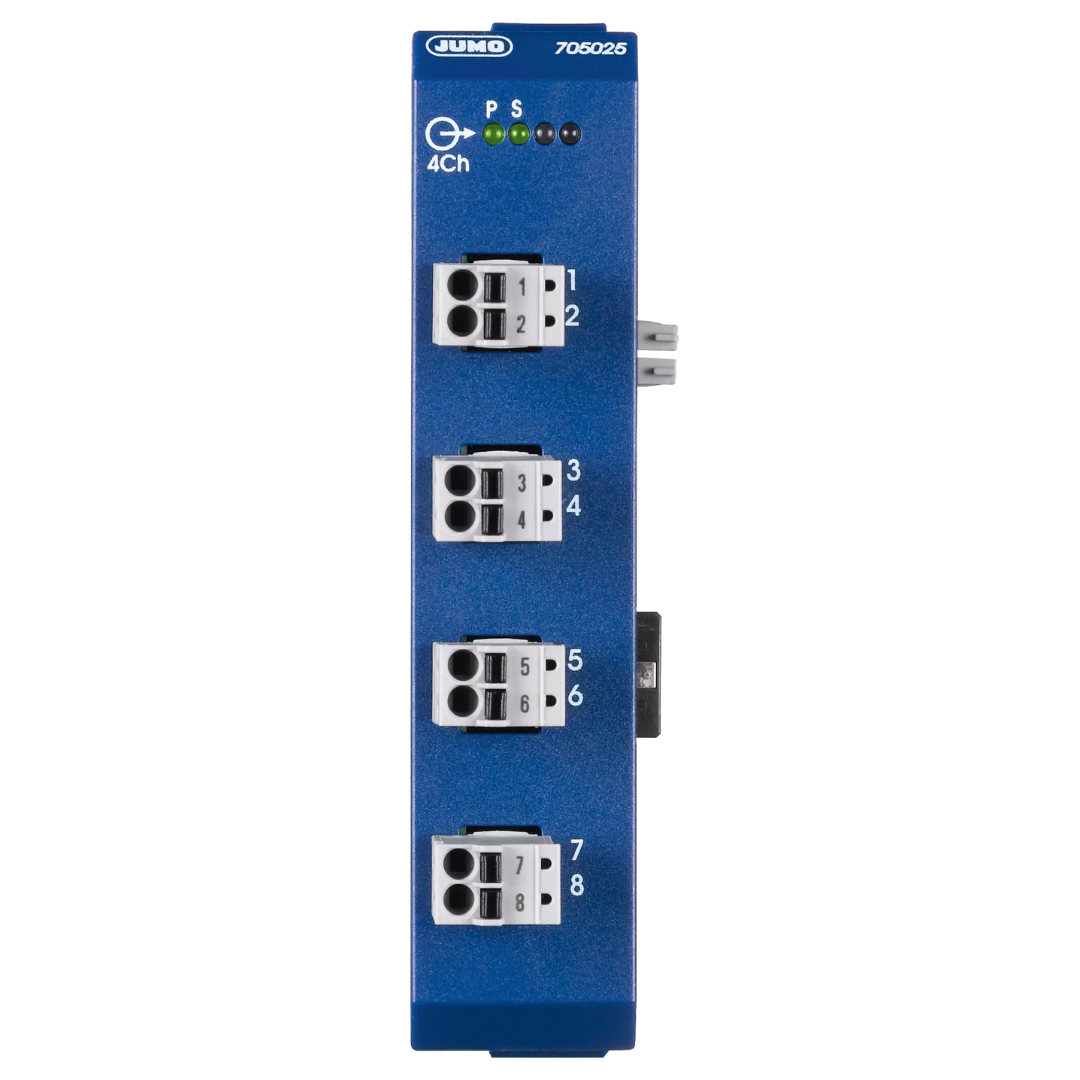

The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.

Categories: Automatisierung, I/O modules

Technical data
Downloads

Technical data

General technical data
Output signal	0(4) to 20 mA or 0(2) to 10 V (configurable per channel)
Number of analog outputs	4
Special features	Configurable behavior in the event of malfunction, automatic configuration after replacement of the module insert (hot swap capable), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle
Connections	Removable terminal strips with PUSH IN technology on the front
Approvals	UL, DNV GL
Housing	Plastic housing for DIN-rail mounting in the control cabinet
Protection type	IP20
Ambient temperature range	-20 to +55 °C
Dimensions (W × H × D)	22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
