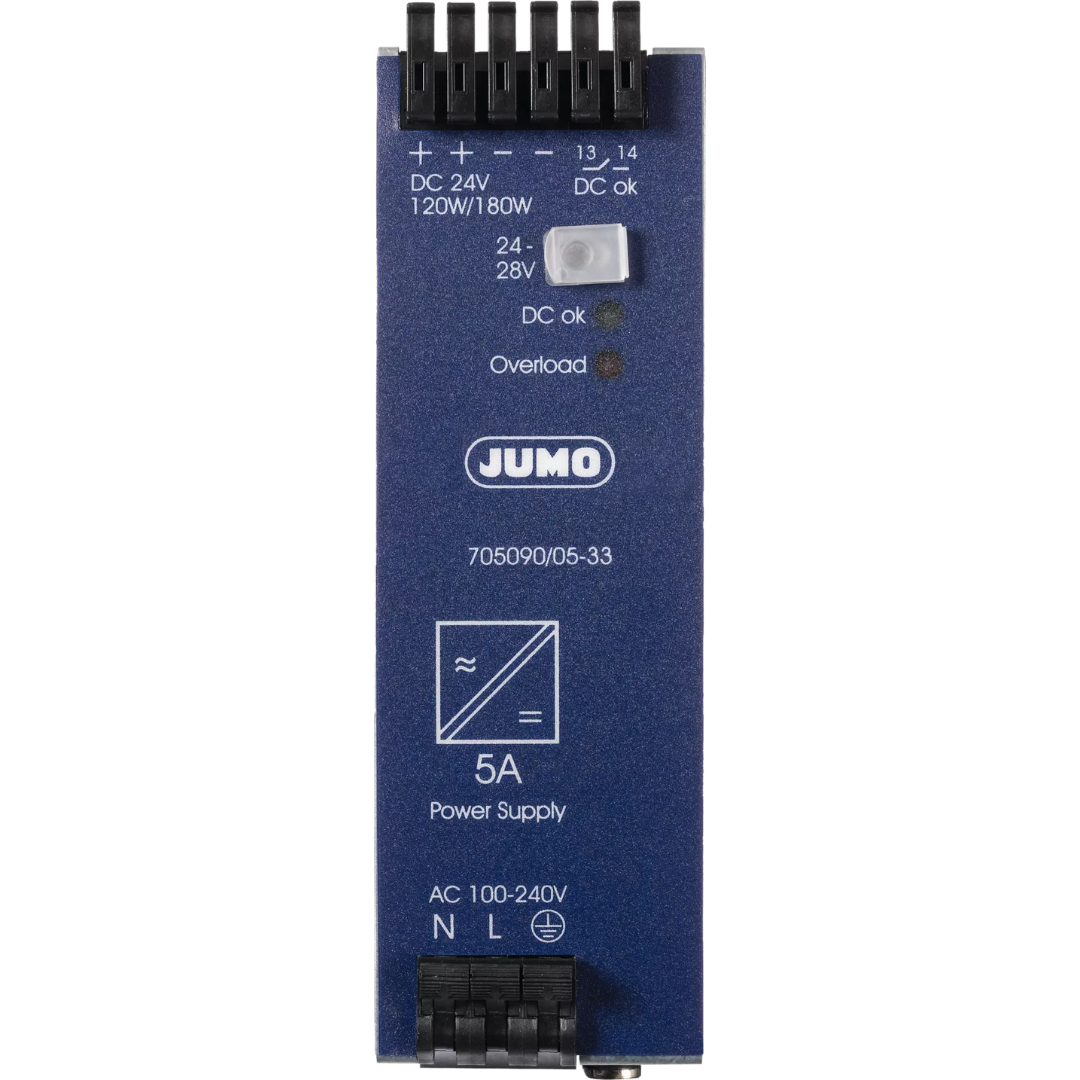

JUMO mTRON T
The special features of these DIN rail power supply units include their high level of efficiency and small size. Low sensitivity to transients and overvoltage as well as barely any electromagnetic radiation make usage possible in almost any environment.
Technical data
| General technical data | |
|---|---|
| Output voltage | DC 24 V SELV |
| Setting range | DC 24 to 28 V |
| Operating temperature range | -25 to +70 °C |
| Connection | Quick-connect spring terminals |
| Approvals | GL (EMC2), UL |
| Housing | Robust metal case |
| Special features | Efficiency of up to 93.5 %, active power factor correction (PFC), 150 % peak load capacity |
