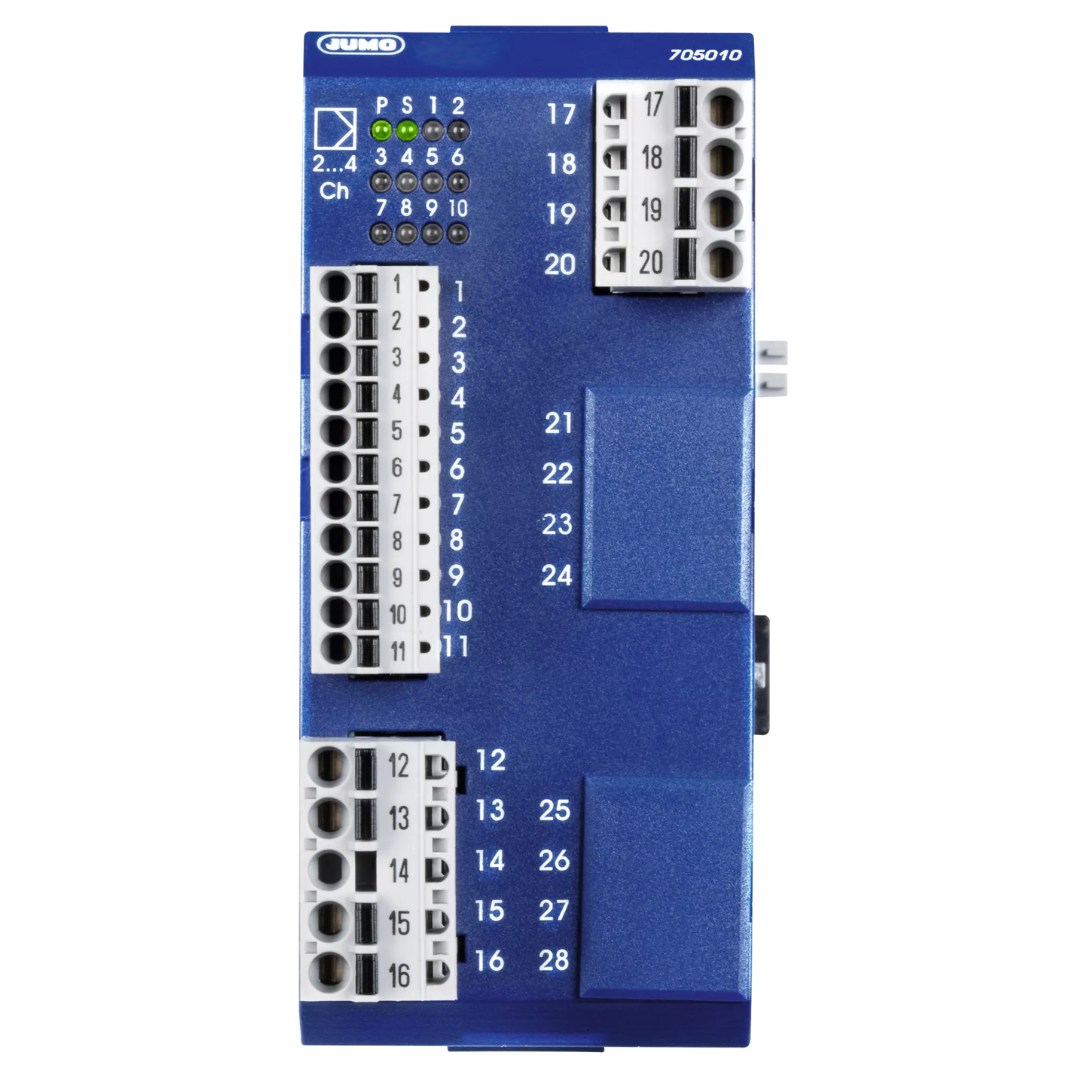

JUMO mTRON T

The multichannel controller module can be used for up to 4 PID control channels (cascadable). The standard version includes 2 high-quality universal analog inputs, 2 digital inputs (DC 0/24 V), and 2 digital outputs as relays with normally open contact (AC 230 V, 3 A) or as logic output (DC 0/15 V).

Categories: Automatisierung, I/O modules

Technical data
Downloads

Technical data

General technical data
Special features	Up to 4 independently user configurable PID control loops with a fast cycle time and tried-and-tested control algorithms, independent operation, math and logic functions, counter input up to 10 kHz
Number of analog inputs	2 + 2 (optional)
A/D converter	Dynamic resolution up to 16 bit
Number of digital inputs	2 + 6 (optional)
Controller types	Two-state controller, three-state controller, three-step controller, continuous controller, continuous controller with integrated position controller
Controller structures	P/PD/PI/PID
Voltage supply	DC 24 V +25/-20 %
Current consumption	Max. 300 mA (at DC 19.2 V)
Housing	Plastic housing for DIN-rail mounting in the control cabinet
Approvals	UL, DNV GL
Ambient temperature	-20 to +55 °C
Protection type	IP20, according to DIN EN 60529
Dimensions (W × H × D)	45 mm × 103.6 mm × 101.5 mm (without connection elements)

General technical data

Special features

Up to 4 independently user configurable PID control loops with a fast cycle time and tried-and-tested control algorithms, independent operation, math and logic functions, counter input up to 10 kHz

Number of analog inputs

2 + 2 (optional)

A/D converter

Dynamic resolution up to 16 bit

Number of digital inputs

2 + 6 (optional)

Controller types

Two-state controller, three-state controller, three-step controller, continuous controller, continuous controller with integrated position controller

Controller structures

P/PD/PI/PID

Voltage supply

DC 24 V +25/-20 %
