Router module 3-port

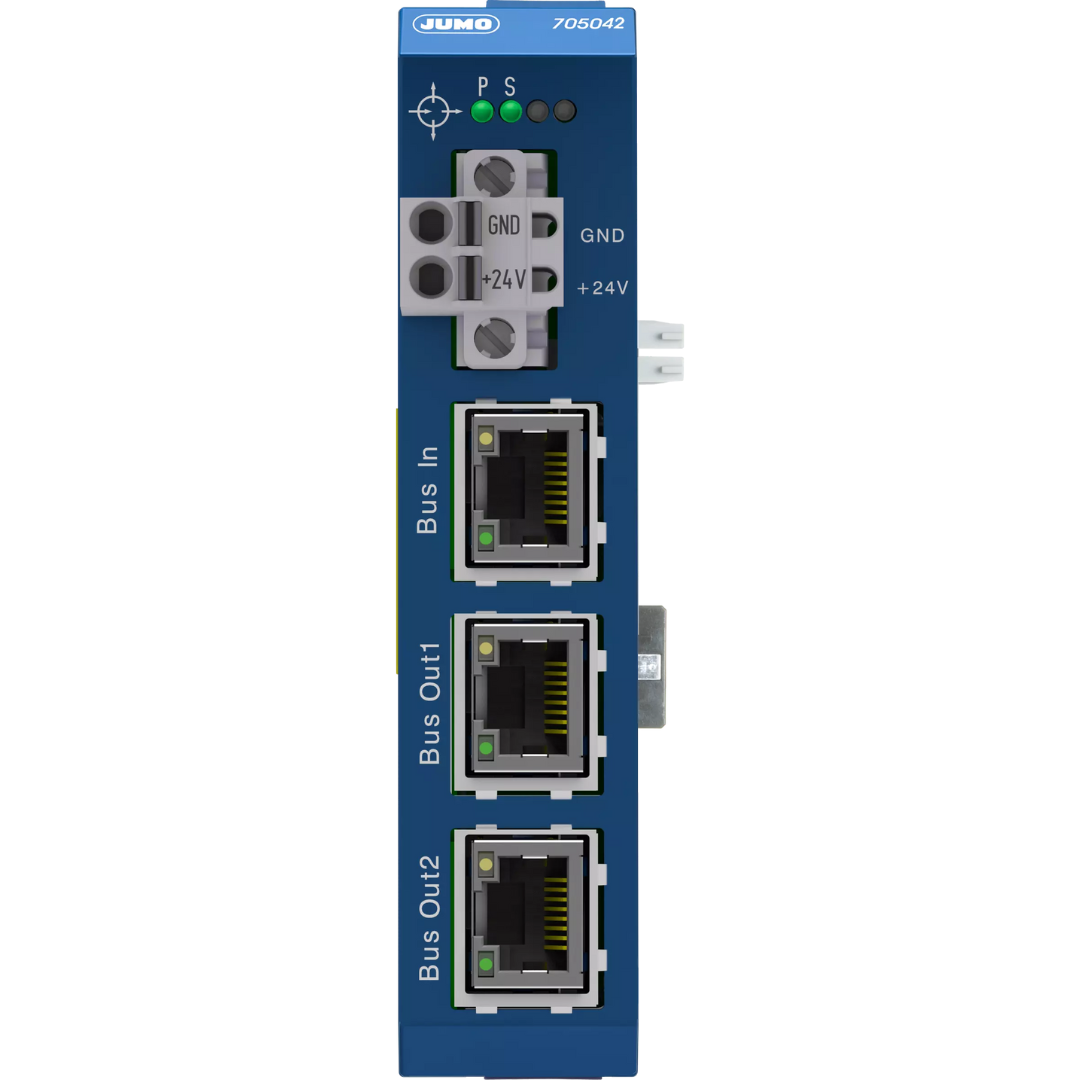

With the 3-port router module, you can arrange the JUMO variTRON automation system in a decentralized and free way. It enables input and output modules to be distributed over several DIN rails or control cabinets. A maximum distance of 100 m is possible between 2 router modules or between the central unit and the router module.
Technical data
| General technical data | |
|---|---|
| Interfaces | 3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus) |
| Special features | Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Voltage supply | DC 24 V +25/-20 % |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Dimensions (W × H × D) | 22.5 x 103.6 x 101.5 mm |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Approvals | UL |
