JUMO mTRON T

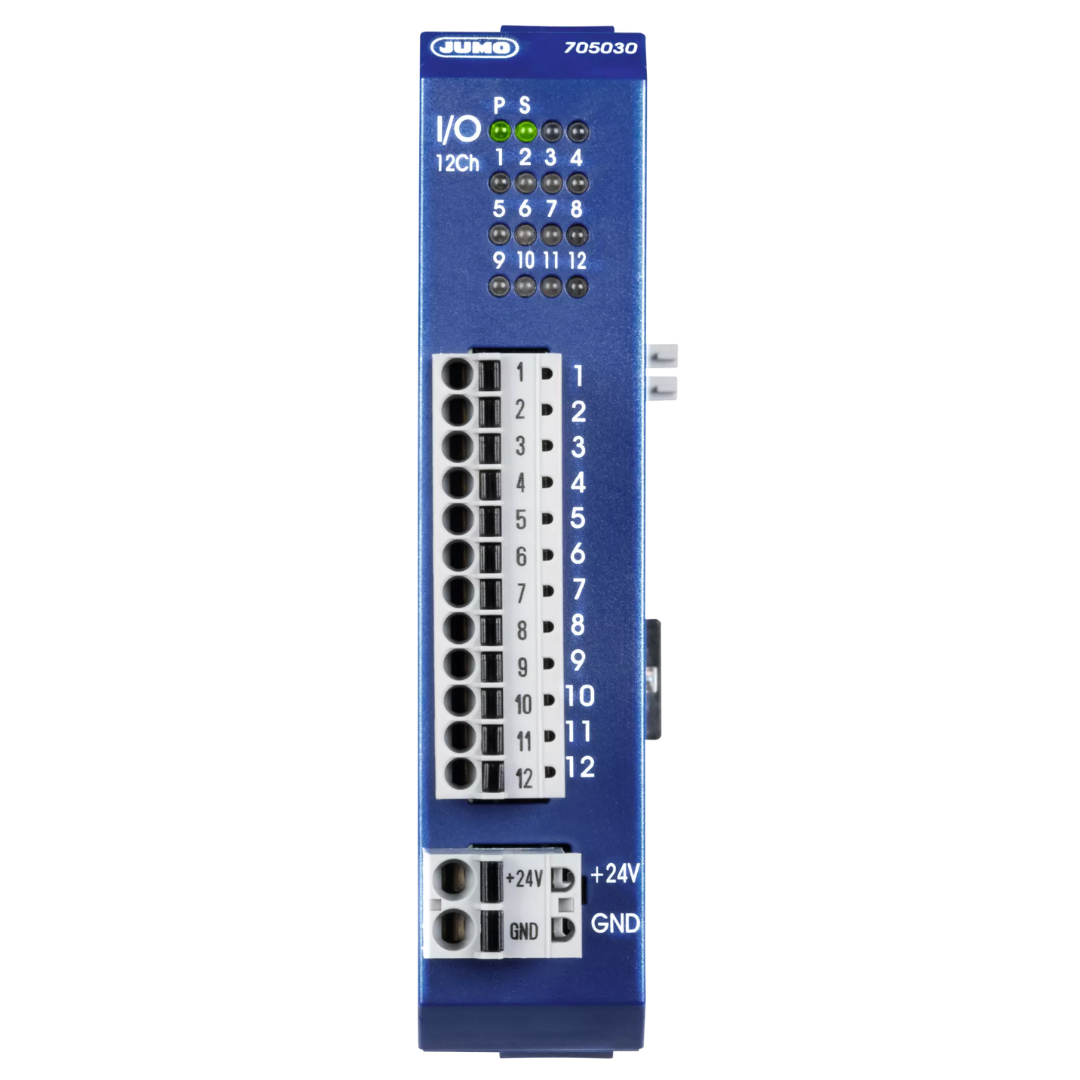

The module is equipped with 12 channels, which can be configured as digital inputs or digital outputs. The digitized input states are available in the system for further processing. The digital outputs are controlled via the system bus by digital signals.

Categories: Automatisierung, I/O modules

Technical data
Downloads

Technical data

General technical data
Measurement inputs	12 channels that can be configured individually as DC 24 V digital input or as DC 24 V digital output (max. 500 mA)
Special features	12 digital, user configurable inputs or outputs, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle
Connection	Removable terminal strips with PUSH IN technology on the front
Voltage supply	DC 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV
Housing	Plastic housing for DIN-rail mounting in the control cabinet
Protection type	IP20
Ambient temperature range	-20 to +55 °C
Dimensions (W × H × D)	22.5 mm × 103.6 mm × 101.5 mm (without connection elements)

General technical data

Measurement inputs

12 channels that can be configured individually as DC 24 V digital input or as DC 24 V digital output (max. 500 mA)

Special features

12 digital, user configurable inputs or outputs, switching statuses are visualized with LEDs, external voltage supply for digital inputs/outputs via terminal on the front, automatic configuration after replacement of the module insert (Plug and Play), connection of inputs on the front, removable terminal strips with PUSH IN technology, fast wiring of operating voltage and system bus provided by simple module connection principle

Connection

Removable terminal strips with PUSH IN technology on the front

Voltage supply

DC 24 V +25/-20 %, external voltage supply for outputs on the front panel: DC 24 V +25/-20 % SELV

Housing

Plastic housing for DIN-rail mounting in the control cabinet

Protection type

IP20

Ambient temperature range

-20 to +55 °C

Dimensions (W × H × D)

22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
