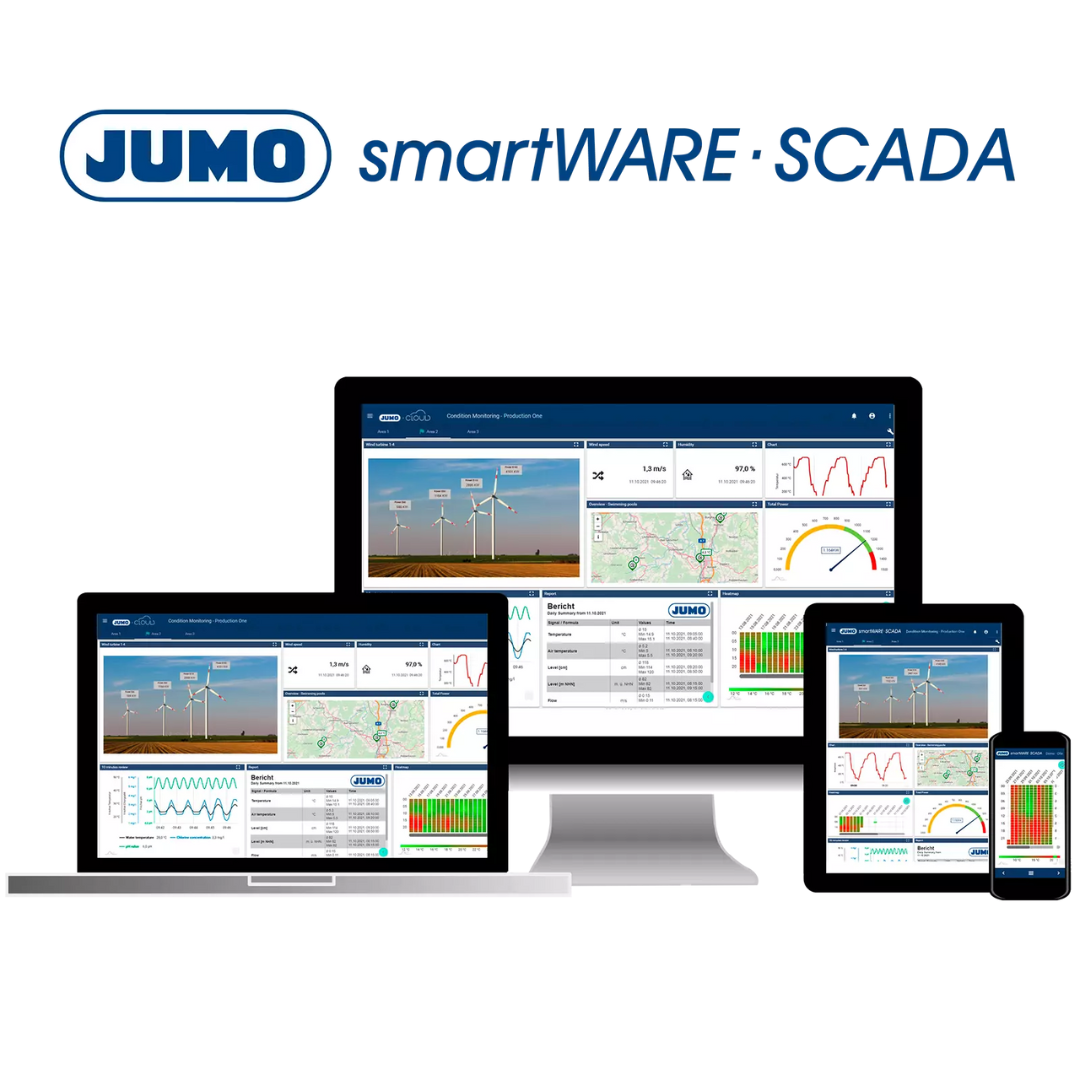

JUMO smartWARE SCADA

The SCADA software provides convenient access to measurement data via common web browsers and offers functions for process visualization as well as evaluation and archiving of the acquired data. JUMO smartWARE SCADA also supports manufacturing and work processes with valuable monitoring, alarm, and planning functions.

Categories: Automatisierung, software

Technical data
Downloads

Technical data

General technical data
Access	Individual dashboards via common browsers, easy client management
Installation	Dashboard access requires no installation of software, browser plugins or add-ons
Alerts	Alarm cascade configurable with on-call schedule, SMS, email, voice call, and push messages
Data security	Certification, end-to-end encryption (HTTPS, MQTTS/TLS), redundant infrastructure
Drivers and protocols	OPC UA/DA, Modbus TCP/RTU, MQTT, Beckhoff ADS.NET, S7 TCP/MPI/PROFIBUS, IEC 60870-104, IEC 61850, M-Bus, KNX, BACnet, REST API (some with adapter)
Gateways	An unlimited number of gateways (software and hardware) can be connected and configured via the user interface; JUMO variTRON can be used as a gateway; gateways can communicate securely across network boundaries
API	Access to variables, events, current and historical data
Process and plant visualization	Editor with integrated animation and test tool as well as vector-based, self-scaling process images available
Report functions	Extensive and freely configurable reporting function; daily, weekly or monthly reports
Always up to date	always get the latest features and patches with the software update service
Special features	Plant control; timer; configurable user and role management; integrated map service; event management; min./max. monitoring; camera integration; ISO 50001 compliant; trend displays; user scripts can be integrated; many additional widgets

General technical data

Access

Individual dashboards via common browsers, easy client management

Installation

Dashboard access requires no installation of software, browser plugins or add-ons

Alerts

Alarm cascade configurable with on-call schedule, SMS, email, voice call, and push messages

Data security

Certification, end-to-end encryption (HTTPS, MQTTS/TLS), redundant infrastructure

Drivers and protocols

OPC UA/DA, Modbus TCP/RTU, MQTT, Beckhoff ADS.NET, S7 TCP/MPI/PROFIBUS, IEC 60870-104, IEC 61850, M-Bus, KNX, BACnet, REST API (some with adapter)

Gateways

An unlimited number of gateways (software and hardware) can be connected and configured via the user interface; JUMO variTRON can be used as a gateway; gateways can communicate securely across network boundaries

API

Access to variables, events, current and historical data

Process and plant visualization

Editor with integrated animation and test tool as well as vector-based, self-scaling process images available

Report functions

Extensive and freely configurable reporting function; daily, weekly or monthly reports

Always up to date

always get the latest features and patches with the software update service

Special features

Plant control; timer; configurable user and role management; integrated map service; event management; min./max. monitoring; camera integration; ISO 50001 compliant; trend displays; user scripts can be integrated; many additional widgets
