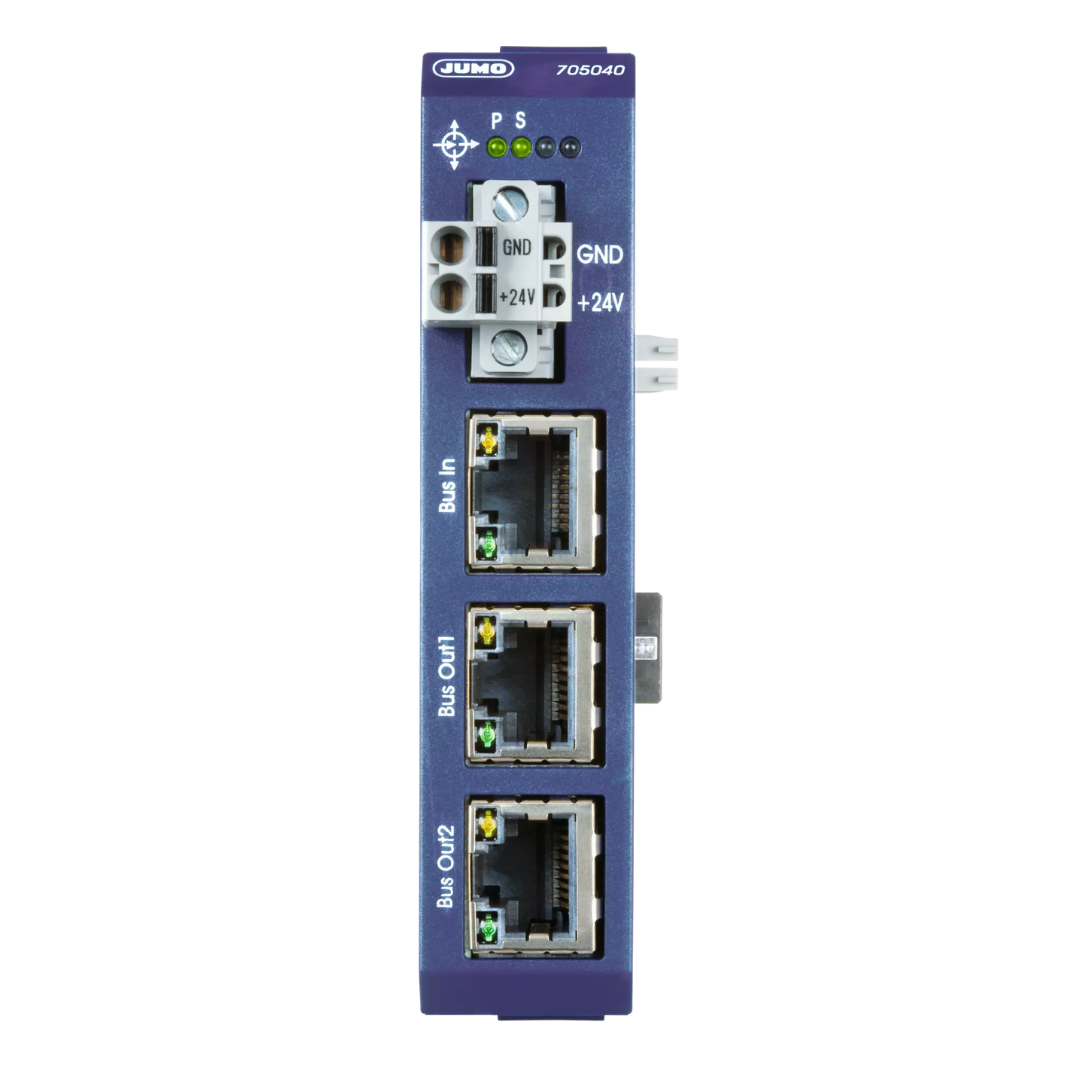

JUMO mTRON T

The router module allows the automation system to be assigned freely and in a decentralized manner. The input and output modules can therefore be distributed across several DIN rails/control cabinets. The router modules can each be placed at distance of up to 100 m to one another/to the basic system.

Categories: Automatisierung, I/O modules

Technical data
Downloads

Technical data

General technical data
Interfaces	3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus)
Special features	Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle
Voltage supply	DC 24 V +25/-20 %
Housing	Plastic housing for DIN-rail mounting in the control cabinet
Dimensions (W × H × D)	22.5 x 103.6 x 101.5 mm
Protection type	IP20
Ambient temperature	-20 to +55 °C
Approvals	UL, DNV GL

General technical data

Interfaces

3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus)

Special features

Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle

Voltage supply

DC 24 V +25/-20 %

Housing

Plastic housing for DIN-rail mounting in the control cabinet

Dimensions (W × H × D)

22.5 x 103.6 x 101.5 mm

Protection type

IP20

Ambient temperature

-20 to +55 °C

Approvals

UL, DNV GL
