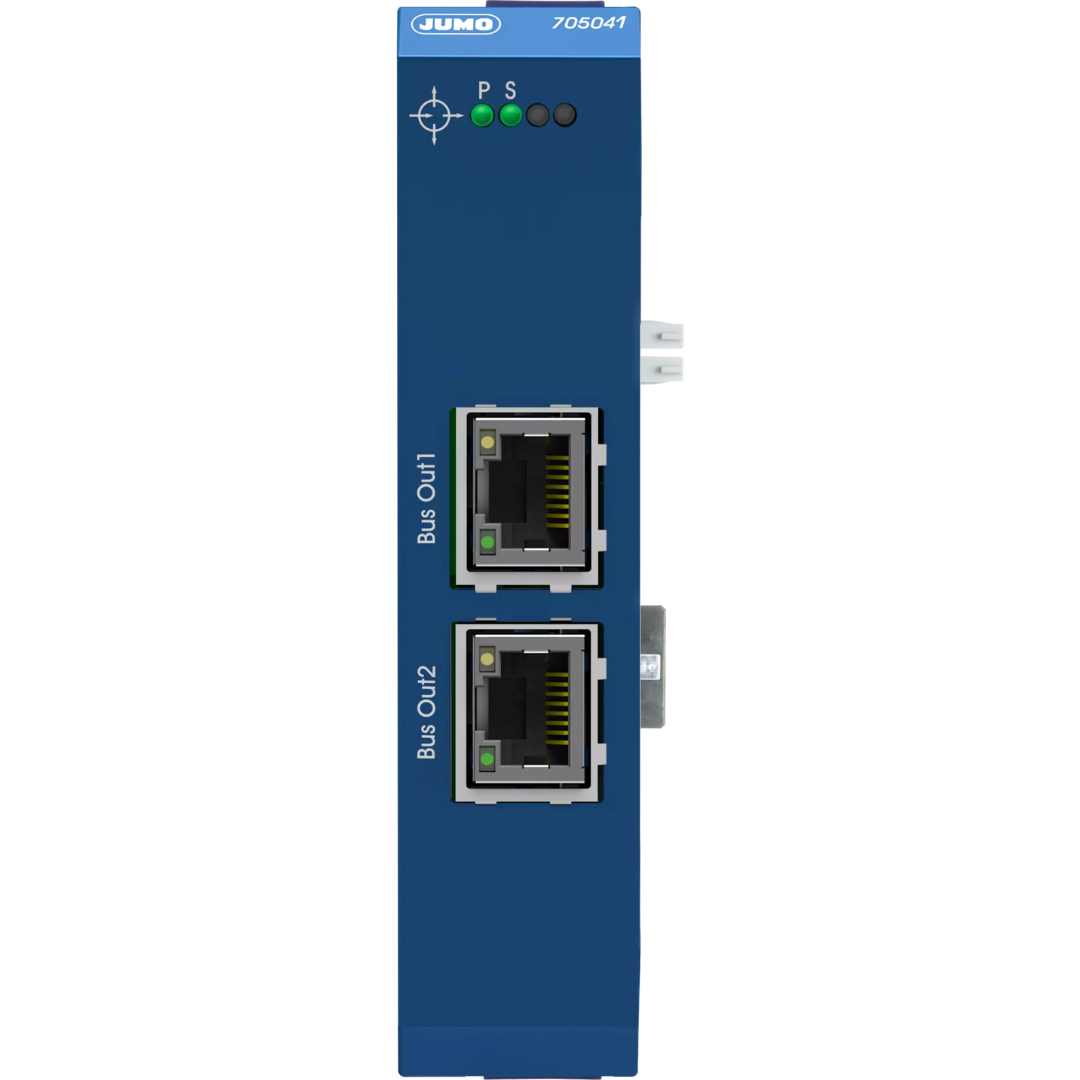

Router module 2-port
The 2-port router module extends the central unit of the JUMO variTRON automation system by 2 system bus outputs. In this way, the system bus can be transmitted to router modules 3-port (705042) on other DIN rails in the same or in other control cabinets at a distance of up to 100 m. This makes it possible to distribute input and output modules and to decentralize the automation system.
Technical data
| General technical data | |
|---|---|
| Interfaces | 2 RJ45 on the front side: 2 Bus Out (system bus) |
| Special features | Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle |
| Voltage supply | DC 24 V +25/-20 % |
| Housing | Plastic housing for DIN-rail mounting in the control cabinet |
| Dimensions (W × H × D) | 22.5 x 103.6 x 101.5 mm |
| Protection type | IP20 |
| Ambient temperature | -20 to +55 °C |
| Approvals | UL |
